Gregoire Besson SP9 COMPACT - Page 59

Operation manual SP 9 - Compact
CHAPTER VI – HYDRAULIC NECTIONS – Page 5

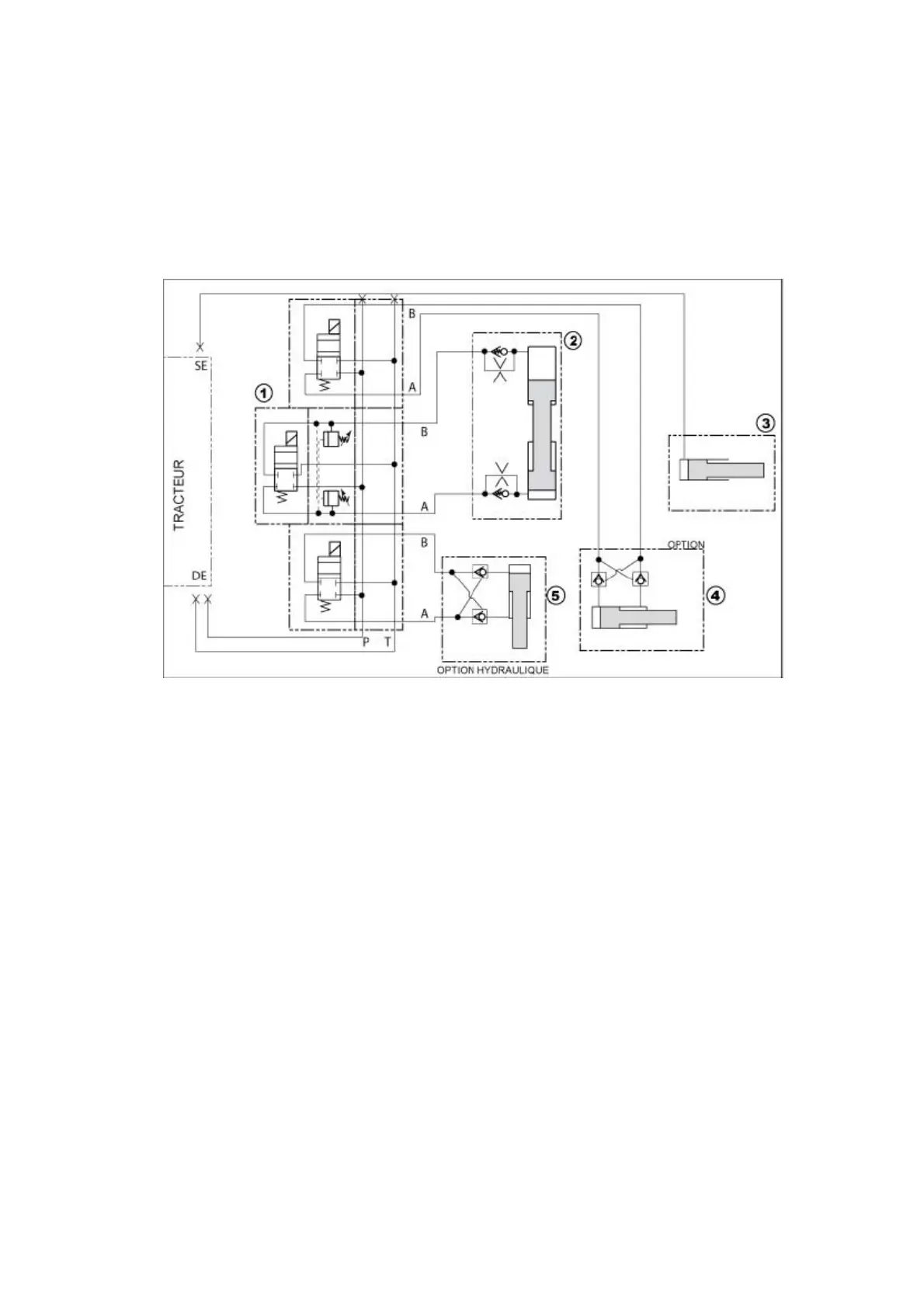

The design of the three function hydraulic reversing connection
1. Regulating bloc
2. Reversing cylinder
3. Lifting cylinder
4. Wheel angular offset cylinder (optional)
5. Deport cylinder
