Operation manual SP 9 - Compact
CHAPTER IX – FIELD SETTINGS– Page 16
9.6.9.3. Adjustment of the front/rear part
of the jointer
Generally it can be said that the jointer are
adjusted in such a way that the end of the jointer
iron can be turned vertically to the end of the
plough head.
If we push the jointer forward, the plant residues
will be rotated onto the bottom of the furrow.
In the case of big quantity of the plant residues
the jointer should be pulled back.

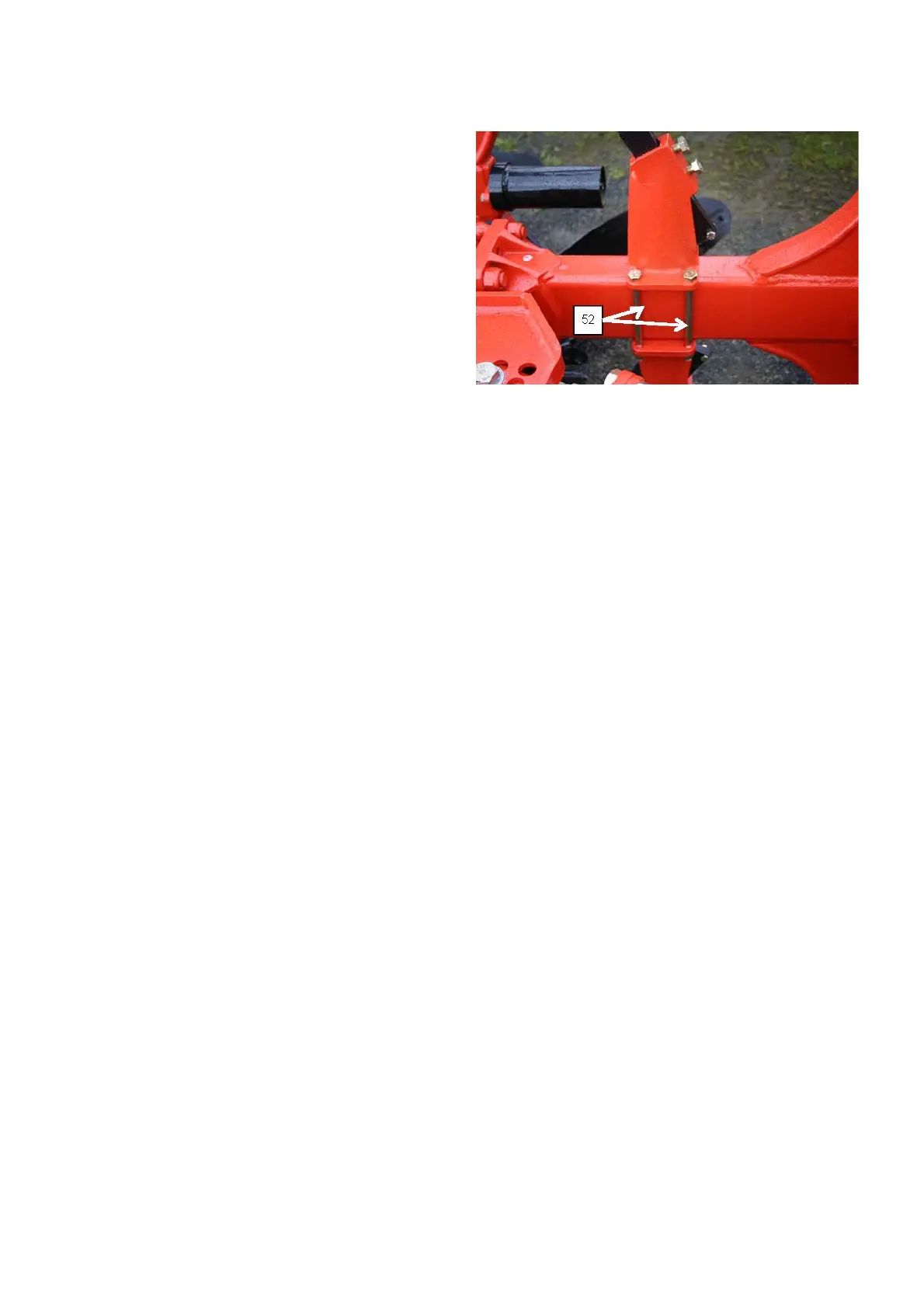

In order to push the jointer forward or pull it back
four bolts (52) must be loosened.
