MonteringsanvisningMB/TF/TFE/TFB/TFEB Motala2016‐09‐15
AssemblyinstructionMB/TF/TFE/TFB/TFEB
 GreiffIndustrimiljöAB
Dynamovägen17
SE‐59161Motala
 9 
Monteringsteg3
Assemblystep3

HålaochmonteraditinloppsröretpåtaketIsugkammaren.Alternativtomboxenärutrustadmed
stosmonterasdenisambandmedmonteringavtaket.Härskallenspeciellkantlistmedobockad
kantanvändas.

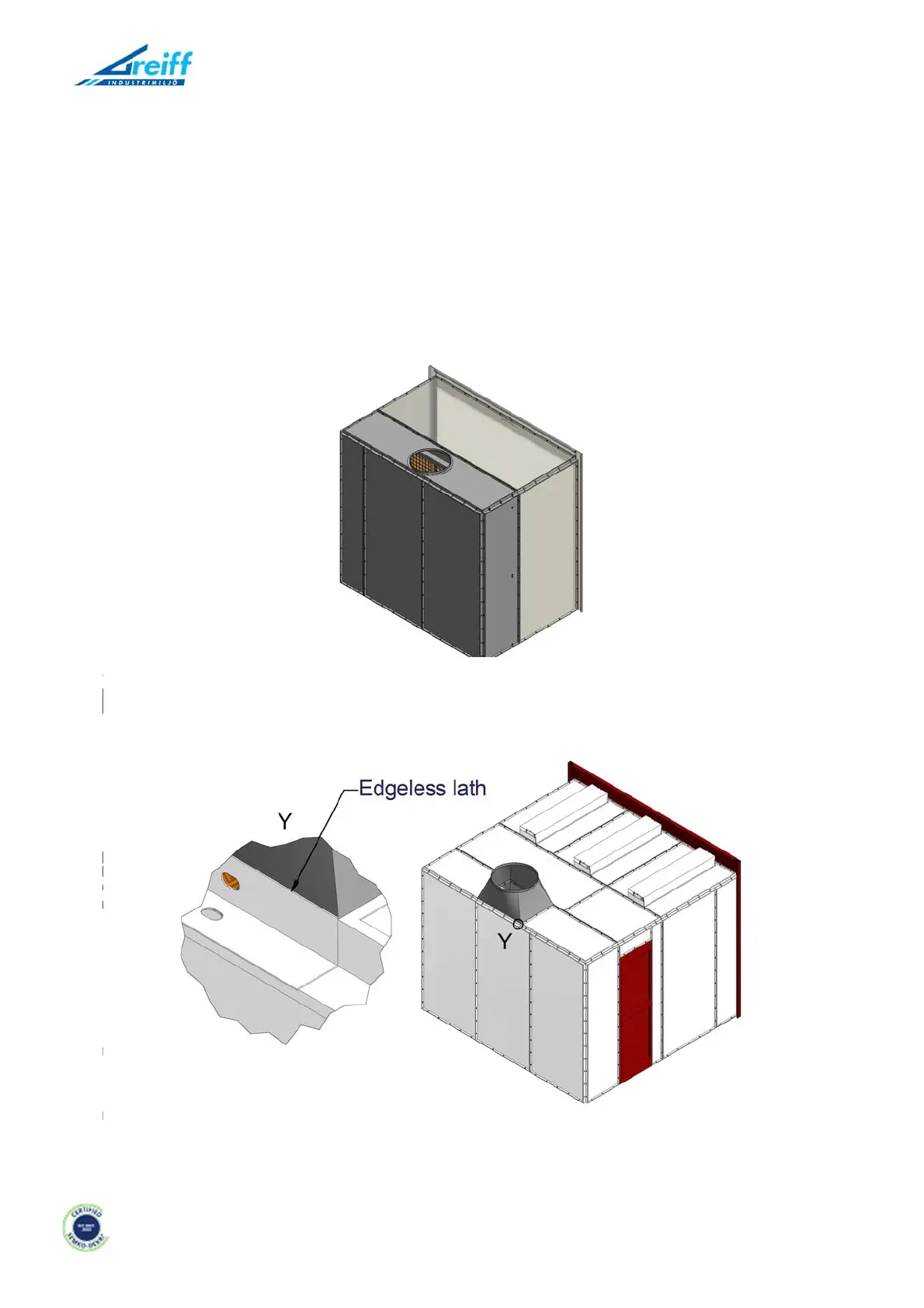

Makeaholeandattachthetake‐offtotheroofofthesuctionchamber.Ifthe
sprayboothcomes
equippedwitharound‐to‐rectangulartransitionthisshallbemountedwiththeroofusingaspecial
edgelesslath.










   Figure25



   Figure26 

