Cat 5 Intercom System User’s Guide
www.greyfox.com
4 1-877-GREYFOX
5
TALK - Depressing this button will allow you to communicate with all other
active units. Hold in the TALK button while speaking and let it go when you are
done.Your voice will be heard on any active Room Unit within the system.
DOOR - Depressing this button will allow you to communicate with all Door
Units that are a part of your system. Hold in the DOOR button while speaking
and let it go when you are done.Your voice will be heard on any active Room
Unit and all Door Units within the system.When you let go, the Door Unit’s
microphone stays active for 20-30 seconds allowing you to hear the visitor.
ANSWER LED - This LED is located at the top of the keypad of the Main
Console Unit.When lit this LED indicates that the microphone in the unit is
active and anything you say will be communicated through the system.This LED
will light when you are depressing the TALK or DOOR button.
TALK HANDS FREE - Depressing this button will allow you to communicate
with all active Room Units in the system. Hold in the TALK HANDS FREE button
while speaking and let it go when you are done.Your voice will be heard on any
active Room Unit within the system and every Room Unit’s microphone will be
activated which will enable other intercom users in the home to respond without
requiring them to press the TALK button on their Room Unit.You will hear
anyone responding to you in any room of the home where a Room Unit is active
(not in mute mode).The Room Unit’s microphone stays active for 20-30 seconds
unless the TALK HANDS FREE button at the Main Console Unit is activated
again within this time period.This feature allows for hands free communication
from the Room Units to the Main Console and is useful because no action is
required by anyone on the receiving end (Room Units).
DOOR RELEASE - Depressing this button will engage the door release device
(not included in the Cat 5 Intercom System) if a door release device is installed
in conjunction with the Cat 5 Intercom System. Holding in this button will open
the door which the door release device controls. Once you let go of the button,
the door release device will disengage which will lock the door again.
VOL - There are two volume control keys with an associated volume level LED
bar.There are 64 different volume levels which are adjusted up and down using
these two buttons. Pressing the volume up button will increase the volume one
level higher.You may not see the LEDs change until you press the volume up or
down multiple times (approximately every 6th button press).You can also hold in
the volume up or down button until you have reached the desired volume level.
It is recommended that you keep the volume level in the middle position (3 LEDs
lit) for optimum sound quality.
Room Unit
The Room Unit acts a point of communication in the Cat 5 Intercom System.
There may be up to twelve total Room Units in the Cat 5 Intercom System.The
Room Unit provides typical intercom features which enable quick communication
throughout the home.
TALK - Depressing this button will
allow you to communicate with all
other active units. Hold in the TALK
button while speaking and let it go
when you are done.Your voice will
be heard on the Main Console Unit
as well as any active Room Unit
within the system.

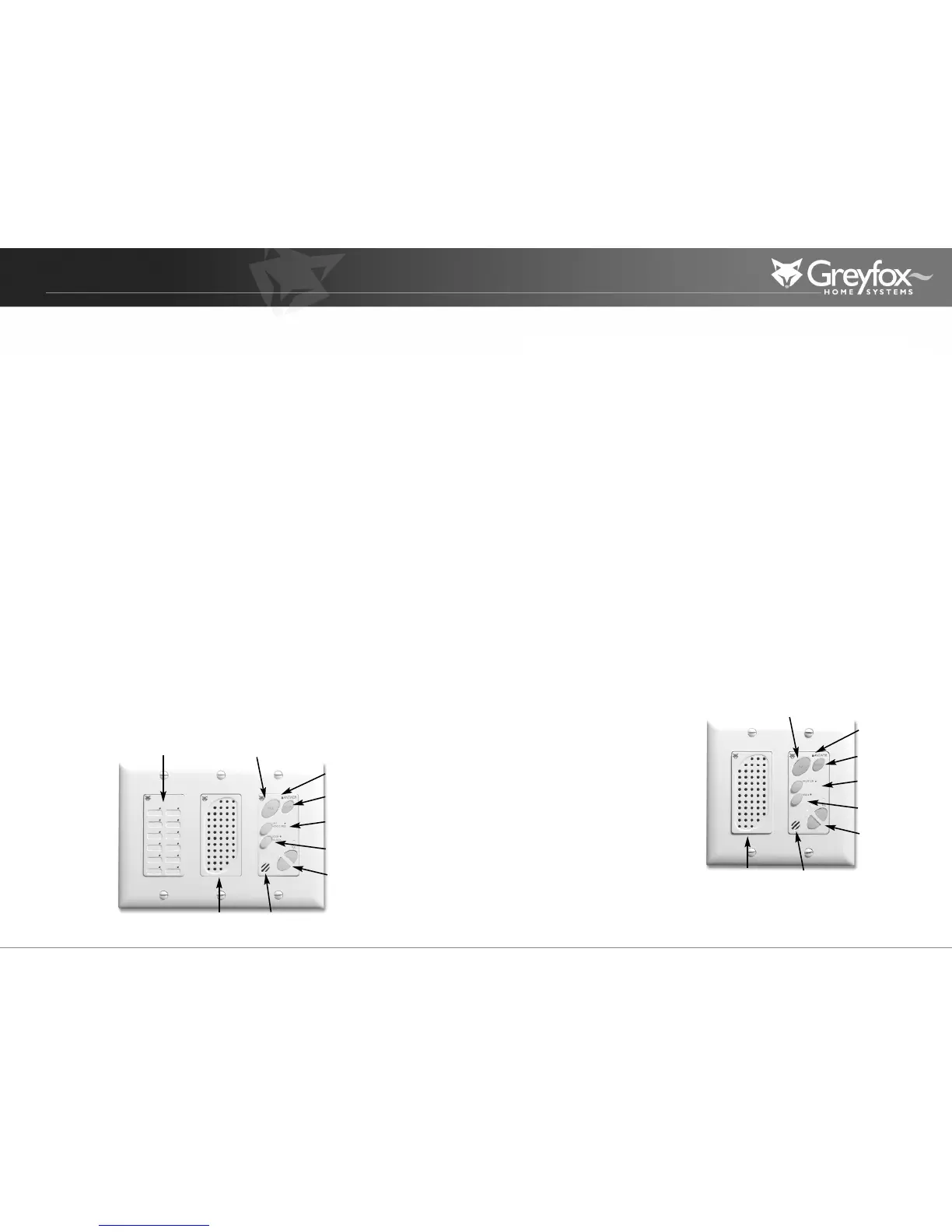

Talk
Talk Hands
Free
Door
Release
Answer
LED
Volume
Door
Status LEDs
Speaker Microphone
Talk
Monitor
Mute
Answer
LED
Volume
Door
Speaker Microphone
