Grid 1500W - AC Cable Wire Size Recommendations

11
pin
z Assembly the socket again. Insert the whole socket set to inverter.
z Twist the coupling ring to receptacle on inverter. Make sure it is
perfectly matched.
4. For 6000, connect AC wires as follows:

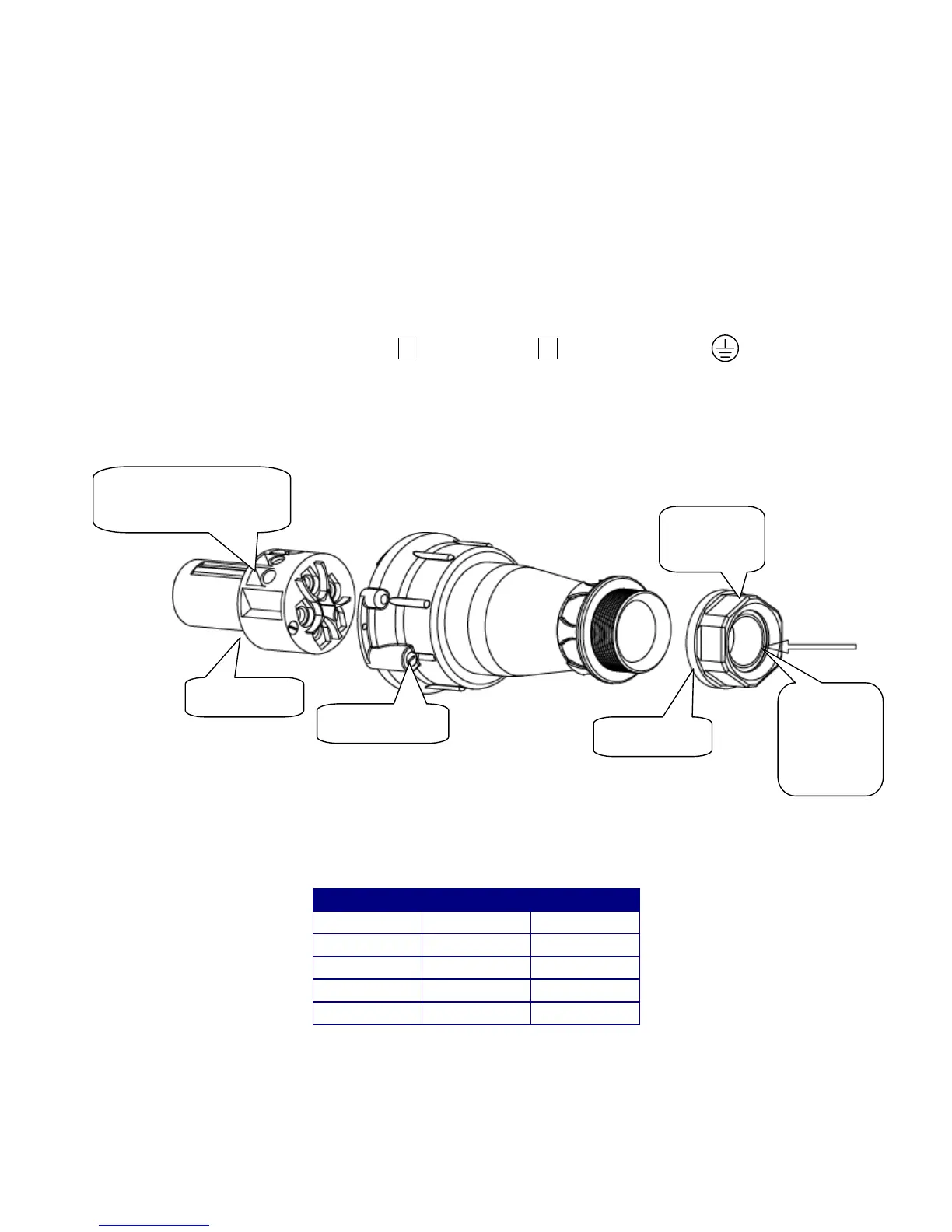

z Disassemble female socket and turn on the lock key 1.
z Connect AC wires to connection socket as indication:
z Insert Line wire to 1 or L, Neutral wire to N and Ground wire
to pin
z Assembly the socket again and turn off the lock key 1. Insert the
whole socket set to inverter and turn off the lock key 2.
z Twist the coupling ring to receptacle on inverter. Make sure it is
perfectly matched.
5. Suggested wire size for AC cable:
Model
φ
(mm)
AWG no.
1500
≥1.29
≤
16
2000
≥1.29
≤
16
3000
≥1.72
≤
14
4000
≥2.05
≤
12
6000
≥2.85
≤
8
Female insert
with coupling ring
Pinch ring
AC wire
inserting
direction
Pressing
screw
Lock key 1
Lock key 2
