2. Installation
Before starting installation please check the following items:
z This unit is designed for indoor and outdoor usage. But it is suggested
that the unit can’t be exposed under rain or water directly and use a
shelter to protect the unit would be better.
z Do not expose this unit to the sun directly. This may reduce the output
power due to high temperature.
z Check the ambient temperature of installation is within specification
(-25~+55°C).
z The grid to be connected is 230V system.
z The connection to grid is approved by utility company .
z The installation must be done by qualified personnel .
Though Grid PV-Inverter can be installed where temperature up to 50°C, we
still strongly recommend that it should be installed where ambient
temperature in the range of 0~40°C.
Mount Grid PV-Inverter to the wall
1. Select a wall or solid place can support the inverter.
2. Convection cooling space required. To dissipate the heat generated by
inverter, 25cm space at least on the top and bottom is necessary.
3. Mark the hole position according to following table or mounting template
attached.

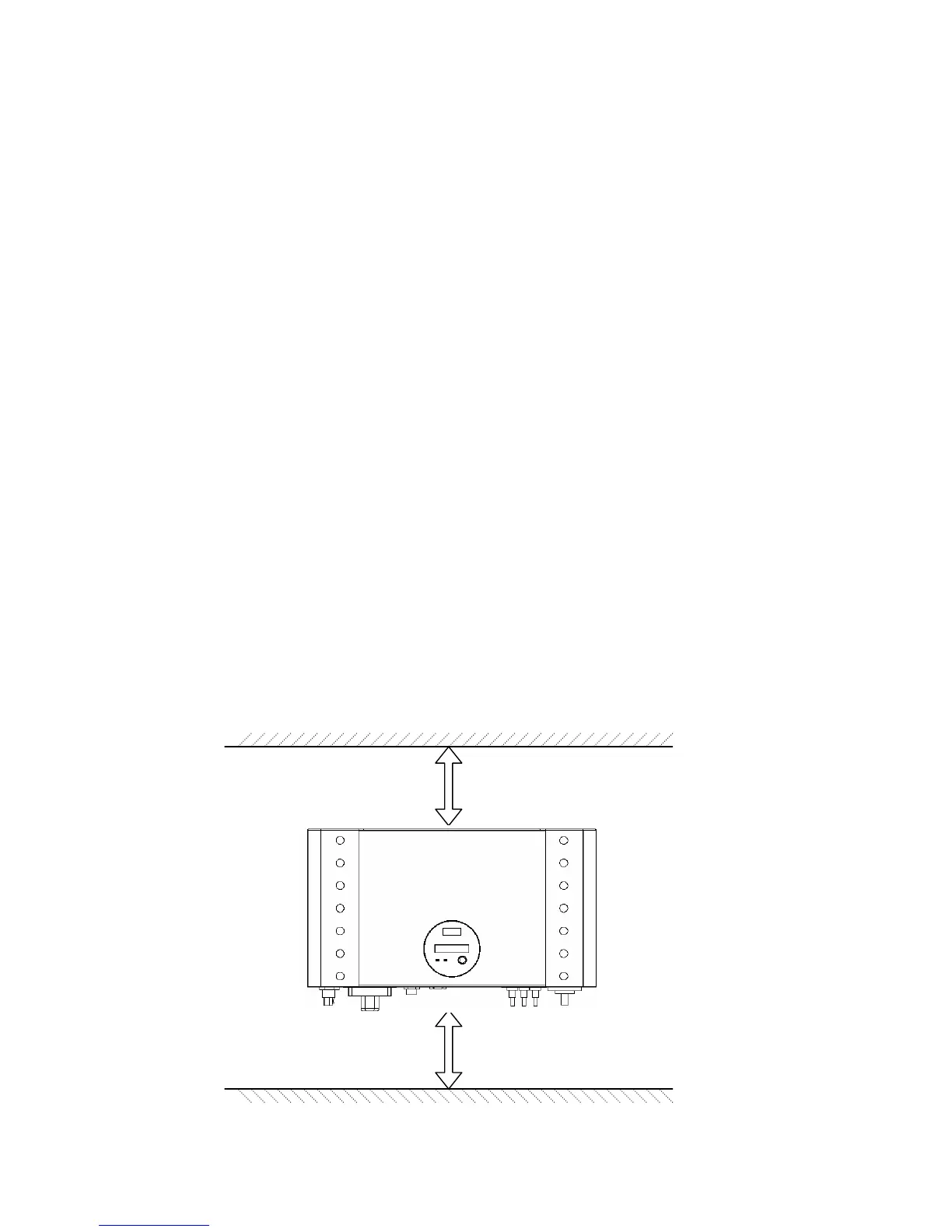

25cm space
25cm space
