MAIN CONTROL BOARD (MCB)
1 Motor terminals 10 ‘Learn’ and ‘Reset’ buttons
2 Controller connection socket 11 Mechanically interlocked contactors
3 VDC out (24Vdc accessory power) 12
Motor temperature cut-out connector or relays
4 Door behaviour DIP Switches 13 Mains & Motor connection tables
5 Transformer 14 Controller cable entry (typical)
6 Toggle Input 15 HHDT input (diagnostic tool)
7 Expansion Board Input 16 Mains power cable entry (typical)
8 APE limit terminal 17 Radio Lock
9 Power supply terminals 18 Entrapment Protection Device inputs

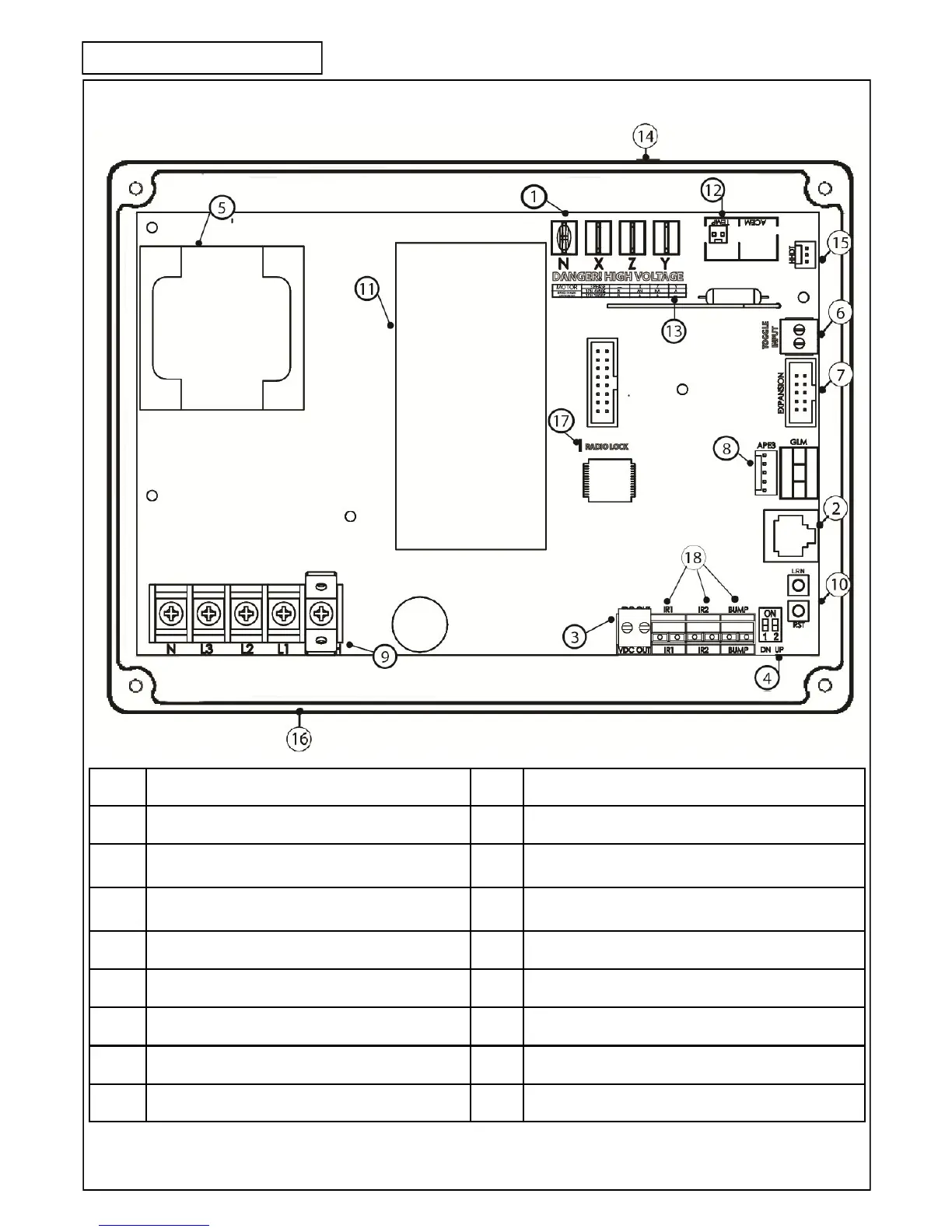

The MCB is the heart of the eDrive +2.0. The diagram below provides an overview of the major components and access points.
