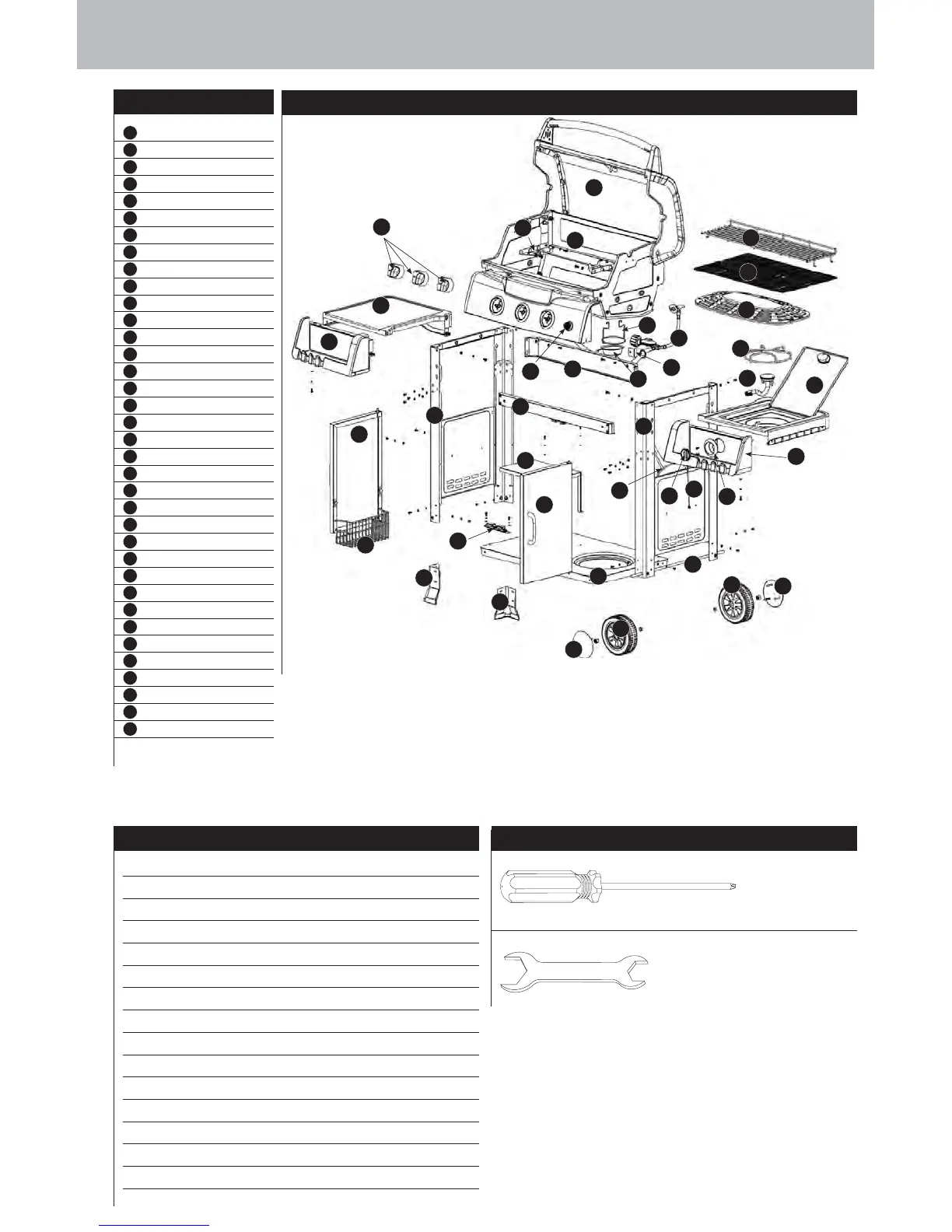

Grill Mate PR7000 - Exploded View and Parts Identification; Exploded View Diagram; Parts List; Hardware and Tools Required

Contact 1.800.667.7313 for assistance. Do not return to place of purchase.
page no.
3
Tools Required for Assembly (Included)
#2 Phillips Head Screwdriver
M5 x M10 Wrench
Parts List
1
Lid Assembly
2
Heat Plate Support (2)
3
Body Assembly
4
Warming Rack
5
Cooking Grid (3)
6
Heat Plate
7
Main Burner Control Knob (3)
8
Ignitor Button
9
Regulator and Hose Assembly
10
Left Side Shelf
11
Side Burner Grid
12
Left Condiment Holder
13
Grease Cup
14
Hose Clip
15
Grease Cup Support
16
Back Cart Support
17
Side Burner
18
Right Side Shelf Assembly
19
Front Cart Support
20
Right Cart Frame
21
Left Cart Frame
22
Right Condiment Holder
23
Side Burner Control Knob Ring
24
Side Burner Control Knob
25
Cart Shelf
26
Left Door
27
Tank Retainer Wire
28
Right Door
29
Lighting Hook
30
Door Magnet
31
Basket
32
Axle
33
Bottom Shelf
34
Leg (2)
35
Hub Cap (2)
36
Wheel (2)
Exploded View
Hardware
A
Screw
M4x10 Zinc Plated Phillips Truss Head
3 pcs
B
Screw
M5x10 Zinc Plated Phillips Truss Head
19 pcs
C
Screw
M6x16 Zinc Plated Phillips Truss Head
2 pcs
D
Screw
M6x16 Zinc Plated Phillips Truss Head
22 pcs
E
Nut
M5 Nickel Plated
4 pcs
F
Nut
M10 Zinc Plated
2 pcs
G
Washer
ø4.3 Zinc Plated
2 pcs
H
Washer
ø5.4 Zinc Plated
18 pcs
I
Washer
ø6.4 Zinc Plated
18 pcs
J
Washer
ø6.4 Heat Resistant
4 pcs
K
Lock Washer
ø4.1 Zinc Plated
2 pcs
L
Lock Washer
ø5.1 Zinc Plated
18 pcs
M
Lock Washer
ø6.1 Zinc Plated
18 pcs
N
Rubber Spacer
ø10.5 x ø17 x 6 2 pcs
O
AA Battery 1 pc
1
3
2
4
5
6
9
21
16
10
12
11
18
17
26
31
19
20
27
25
28
34
22
23
24
29
36
35
15
33
32
7
8
14
30
35
36
34
13
