Grilla Grills Chimp - Parts Diagram

CHIMP WOOD PELLET GRILL OPERATION MANUAL14

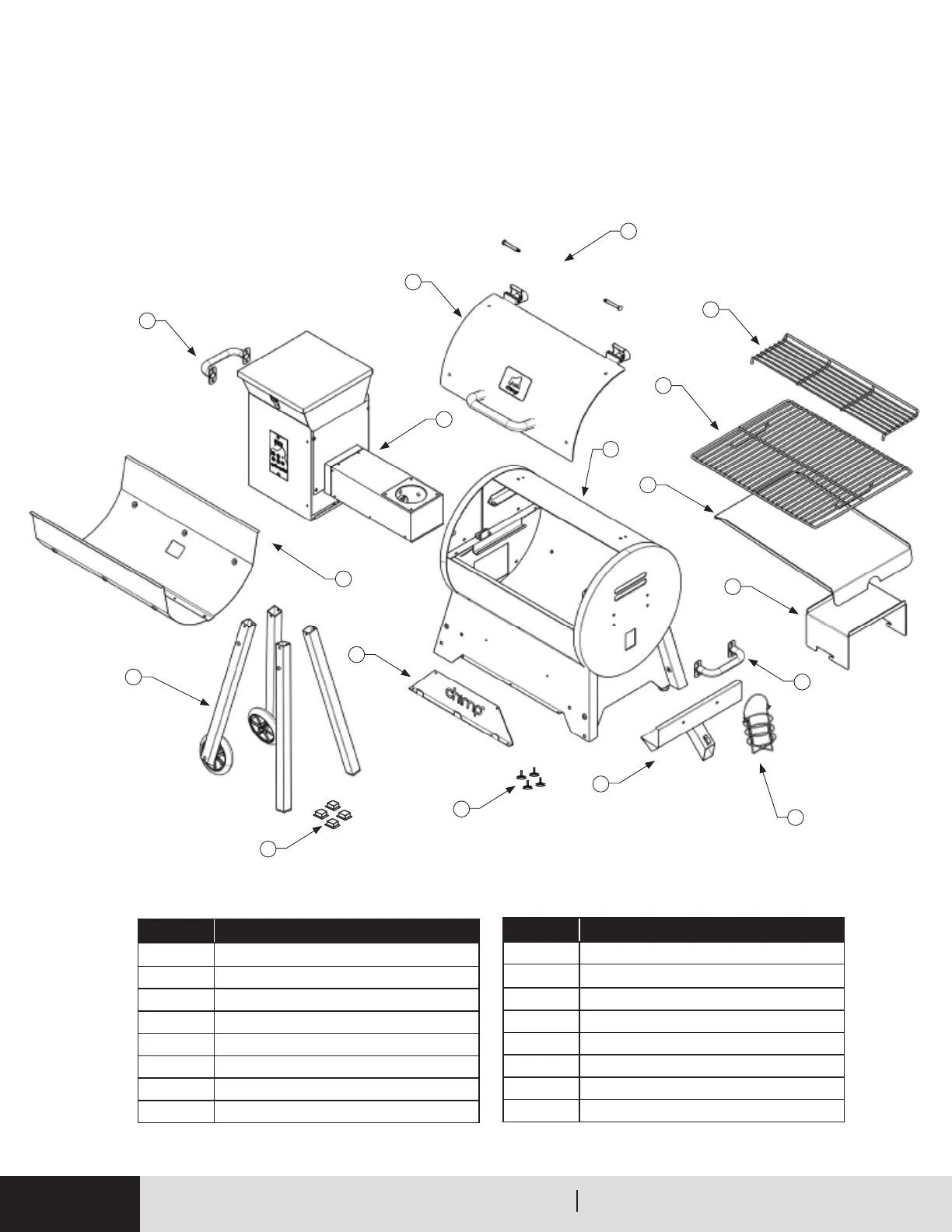

PARTS DIAGRAM
ITEM DESCRIPTION
1
Grill Body
2
Hoppper Assembly
3
Stainless Steel Lid
4
Thermal Bae
5
Folding Legs
6
Multi Purpose Chimp Badge
7
Grease Catch
8 Grease Can Holder
ITEM DESCRIPTION
9 Handles
10
Heat Shield
11
Grease Pan
12
Cooking Grate
13
Upper Grate
14
Lid Hardware
15
Leg Caps
16
Leveling Pads
10
13
3
7
9
6
5
12
2
1
8
4
14
11
9
15
16
