GrillBoss GBC900W - Parts and Initial Assembly; Grill Components and Hardware; Required Assembly Tools

Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
For great recipes and tips, visit recipes.uniflame.com
page no.
3
Hardware
A
Screw
ST4.8x10 Nickel Plated Phillips Head
4 pcs
B
Screw
M6x14 Nickel Plated Phillips Truss Head
42 pcs
C
Nut
M5 Zinc Plated
2 pcs
D
Nut
M8 Zinc Plated
2 pcs
E
Wing Nut
M6 Steel
7 pcs
F
Washer
ø6.4 Nickel Plated
10 pcs
G
Washer
ø6.4 Heat Resistant
6 pcs
H
Lock Washer
ø6.4 Nickel Plated
10 pcs
Tools Required for Assembly (Included)
#2 Phillips Head Screwdriver 1 pc
M5 - M8 Wrench 2 pcs
4
1
3
14
13
22
20
2
17
18
12
28
23
Parts List
1
Lid Handle
55-09-308
2
Warming Rack
55-09-321
3
Lid*
55-09-307
4
Cooking Grid
55-09-300
5
Heat Plate
55-09-303
6
Top Hinge (2)*
55-07-360
7
Bottom Hinge (2)*
55-07-306
8
Left Side Shelf
55-09-305
9
Heat Plate Support (2)
55-09-445
10
Burner (2)*
55-09-295
11
Right Side Shelf
55-09-316
12
Side Shelf Support A (2)
55-09-446
13
Side Shelf Support B (2)
55-09-447
14
Grill Body Assembly
55-09-301
15
Control Knob (2)
55-09-298
16
Grease Cup Support
55-07-316
17
Grease Cup
55-07-315
18
Regulator/Hose Assembly
55-08-128
19
Top Left Cart Frame
55-09-319
20
Top Front Panel
55-09-318
21
Top Right Cart Frame
55-09-320
22
LP Gas Tank Heat Plate A
55-09-448
23
LP Gas Tank Heat Plate B
55-09-449
24
Rear Panel
55-10-517
25
Cart Frame Support
Wire A
55-09-450
26
Condiment Holder
55-09-297
27
Lighting Rod
55-07-331
28
LP Gas Tank Retainer
Wire
55-09-312
29
Leg Connector (4)*
55-09-306
30
Lower Front Panel
55-09-309
31
Lower Left Cart Frame
55-09-310
32
Cart Frame Support
Wire B (2)
55-09-296
33
Lower Right Cart Frame
55-09-311

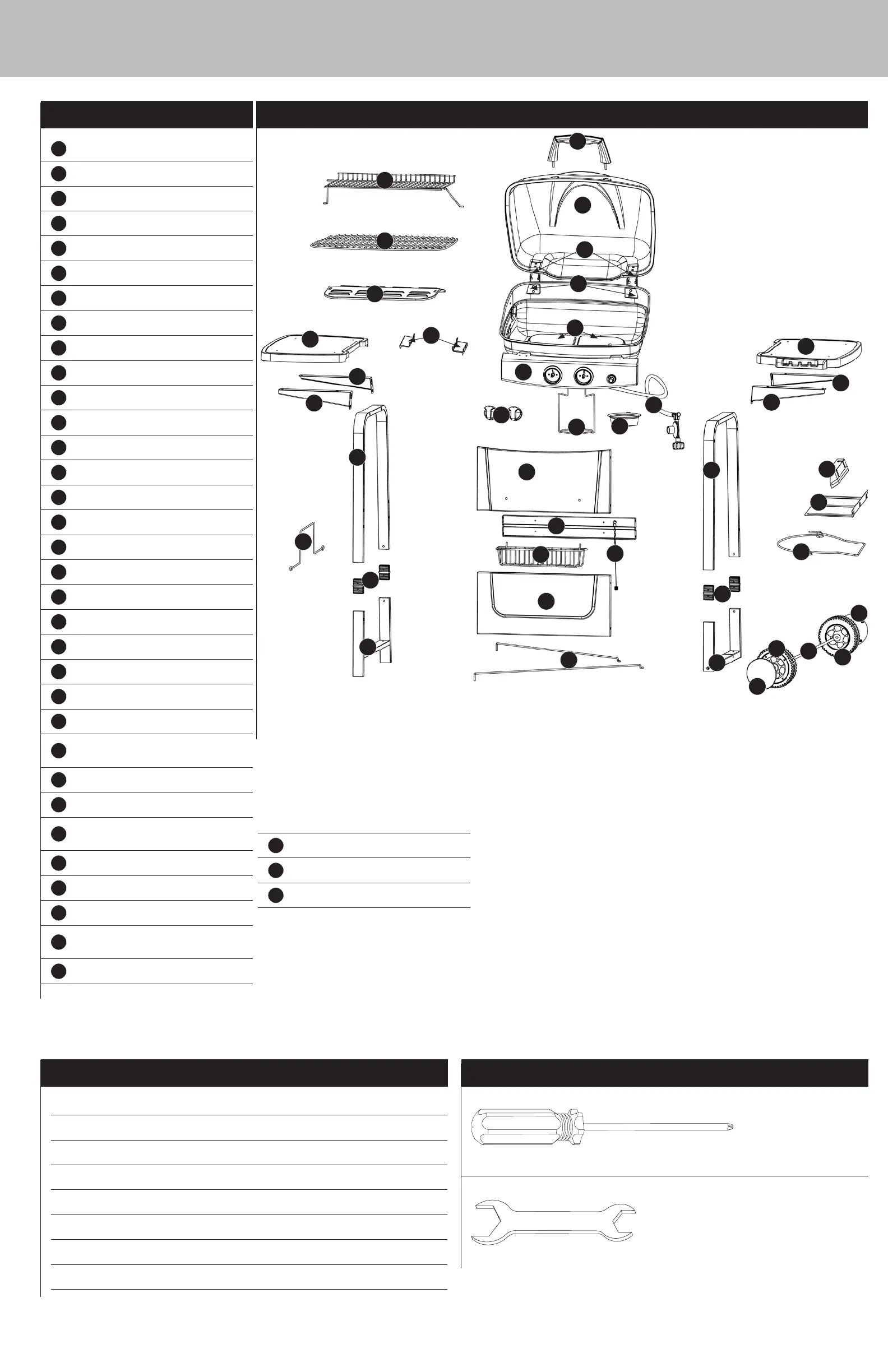

Exploded View
29
5
19
25
26
8
11
15
16
24
21
27
7
6
9
10
12
13
29
30
31
33
32
34
34
35
35
36
34
Hub Cap (2)
55-10-518
35
Wheel (2)
55-09-322
36
Axle
55-09-323
* Pre assembled
