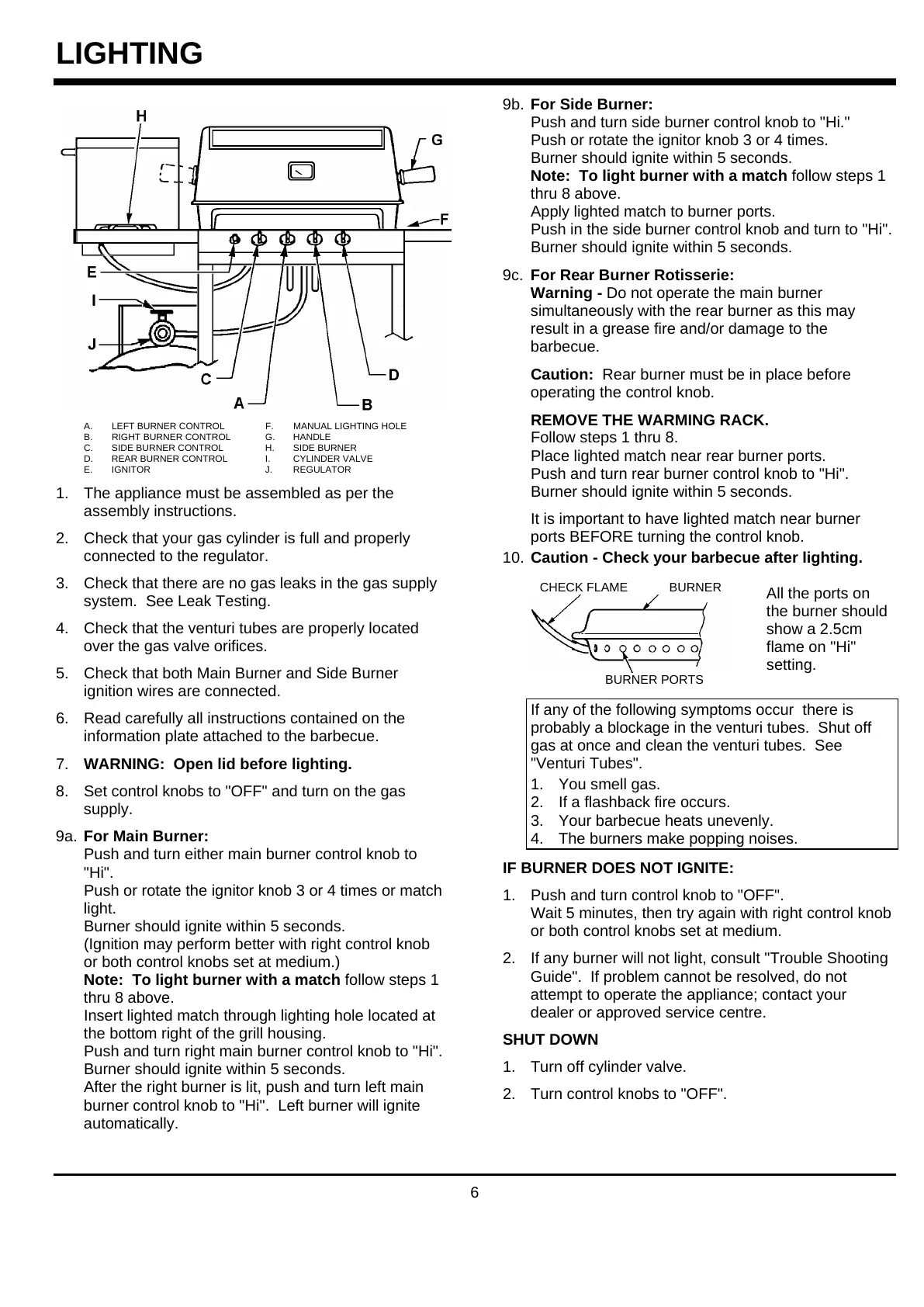

LIGHTING
6
A. LEFT BURNER CONTROL F. MANUAL LIGHTING HOLE
B. RIGHT BURNER CONTROL G. HANDLE
C. SIDE BURNER CONTROL H. SIDE BURNER
D. REAR BURNER CONTROL I. CYLINDER VALVE
E. IGNITOR J. REGULATOR
1. The appliance must be assembled as per the
assembly instructions.
2. Check that your gas cylinder is full and properly
connected to the regulator.
3. Check that there are no gas leaks in the gas supply
system. See Leak Testing.
4. Check that the venturi tubes are properly located
over the gas valve orifices.
5. Check that both Main Burner and Side Burner
ignition wires are connected.
6. Read carefully all instructions contained on the
information plate attached to the barbecue.
7. WARNING: Open lid before lighting.
8. Set control knobs to "OFF" and turn on the gas
supply.
9a. For Main Burner:
Push and turn either main burner control knob to
"Hi".
Push or rotate the ignitor knob 3 or 4 times or match
light.
Burner should ignite within 5 seconds.
(Ignition may perform better with right control knob
or both control knobs set at medium.)
Note: To light burner with a match follow steps 1
thru 8 above.
Insert lighted match through lighting hole located at
the bottom right of the grill housing.
Push and turn right main burner control knob to "Hi".
Burner should ignite within 5 seconds.
After the right burner is lit, push and turn left main
burner control knob to "Hi". Left burner will ignite
automatically.
9b. For Side Burner:
Push and turn side burner control knob to "Hi."
Push or rotate the ignitor knob 3 or 4 times.
Burner should ignite within 5 seconds.
Note: To light burner with a match follow steps 1
thru 8 above.
Apply lighted match to burner ports.
Push in the side burner control knob and turn to "Hi".
Burner should ignite within 5 seconds.
9c. For Rear Burner Rotisserie:
Warning - Do not operate the main burner
simultaneously with the rear burner as this may
result in a grease fire and/or damage to the
barbecue.
Caution: Rear burner must be in place before
operating the control knob.
REMOVE THE WARMING RACK.
Follow steps 1 thru 8.
Place lighted match near rear burner ports.
Push and turn rear burner control knob to "Hi".
Burner should ignite within 5 seconds.
It is important to have lighted match near burner
ports BEFORE turning the control knob.
10. Caution - Check your barbecue after lighting.
CHECK FLAME BURNER
BURNER PORTS
All the ports on
the burner should
show a 2.5cm
flame on "Hi"
setting.
If any of the following symptoms occur there is
probably a blockage in the venturi tubes. Shut off
gas at once and clean the venturi tubes. See
"Venturi Tubes".
1. You smell gas.
2. If a flashback fire occurs.
3. Your barbecue heats unevenly.
4. The burners make popping noises.
IF BURNER DOES NOT IGNITE:
1. Push and turn control knob to "OFF".
Wait 5 minutes, then try again with right control knob
or both control knobs set at medium.
2. If any burner will not light, consult "Trouble Shooting
Guide". If problem cannot be resolved, do not
attempt to operate the appliance; contact your
dealer or approved service centre.
SHUT DOWN
1. Turn off cylinder valve.
2. Turn control knobs to "OFF".
