16 Grindmaster
®
CS Espresso Machine

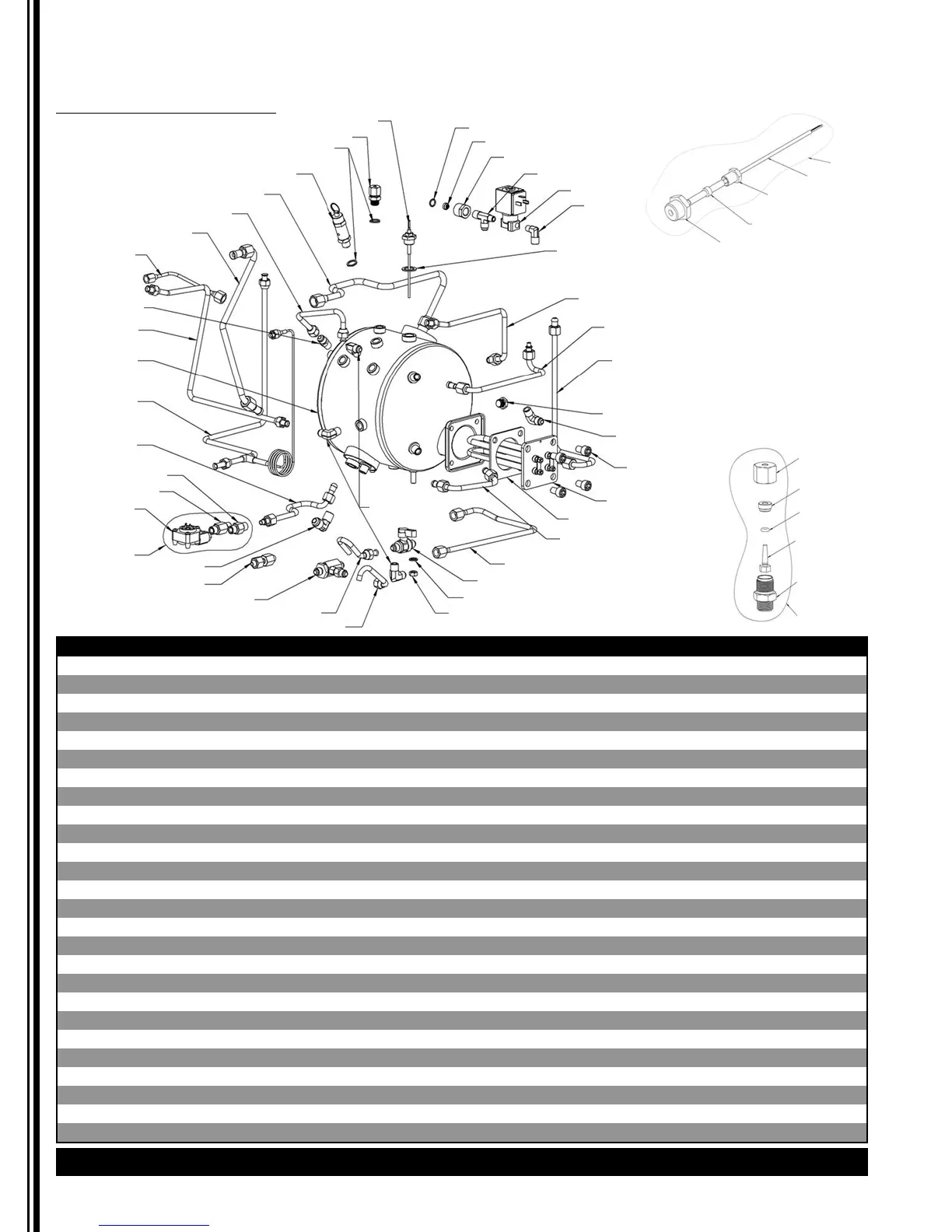

Parts Diagram (continued)
Boiler Hydraulic Circuit CS1
Item Part # Descripon Item Part # Descripon
1 01320L LEVEL PROBE ASSEMBLY 27 WATER LEVEL LOWER TUBE
2 01319L ANTI-EDDY VALVE V.A.R. 28 01318L SI-GASKET ELEMENT
3 01322L VALVE GASKET BRASS 29 01316L HEATING ELEMENT 2000W�CE�
4 01371L SAFETY VALVE 29 410-00494 HEATING ELEMENT 1500W�110V)
5 HEAT EXCHANGER OUTLET TUBE 30 410-00495 HEX SCREW (M10*16)
6 WATER LEVEL UPPER TUBE 31 ELBOW BRASS 5/16*1/4
7 HEAT EXCHANGER RETURN TUBE 32 BRASS PLUG
8 STEAM PRESSURE GAUGE TUBE 33 AUT.WATER REFILL TUBE REAR
9 BRASS CONNECTOR 1/2-20UNF*PT1/4 34 PRESSURE GAUGE COPPER TUBE
10 HOT WATER OUTLET TUBE REAR 35 STEAM OUTLET TUBE FRONT RIGHT
11 BOILER 36 01321L VALVE GASKET BRASS
12 AUT.WATER REFILL TUBE 37 BRASS CONNECTOR 1/4"X1/8"
13 HEAT EXCHANGER INLET TUBE 38 01324L SOL. VALVE WATER REFILL ASSY 208~240V 60Hz
14 BRASS FITTING PS/1/4*PS1/4*L33.5 39 BRASS CONNECTOR PT1/4*1/2-20UNF*1/2-20UNF
15 BRASS FITTING PS/1/4*PS1/4*L42 40 BRASS CONNECTOR
16 01325L FLOWMETER DOSER 41 SPHERICAL BRONZE CONICAL FILTER
17 FLOW METER GAUGE 42 01323L NBR O RING
18 ELBOW BRASS PT3/8*3/8 43 LEVEL PROBE BASE
19 FLOWMETER INLET TUBE 44 410-00502 PROBE FIXED SUPPORT
20 410-00492 S.C.N.R.DOSER VALVE 1/2*1/2*1/2 45 PROBE FIXED BOLT
21 BOILER DRAIN TUBE FRONT 46 410-00504 PROBE ( SUS304 /3mm L132 )
22 EXPANSION DRAIN TUBE 47 410-00496 BRASS NUT
23 NUT M8 48 410-00497 TEFLON WASHER
24 SPRING WASHER M8 49 410-00498 SI O-RING
25 410-00493 PRESSURE RELEASE TAP BULK PS1/4xPS1/4 50 410-00499 SHAFT
26 BOILER DRAINTUBE REAR 51 410-00500 ANTI-EDDY VALVE BASE
1
42
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
19
20
18
21
22
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
31
43
44
45
46
1
47
48
49
50
51
2
41
