22 Grindmaster
®
CS Espresso Machine

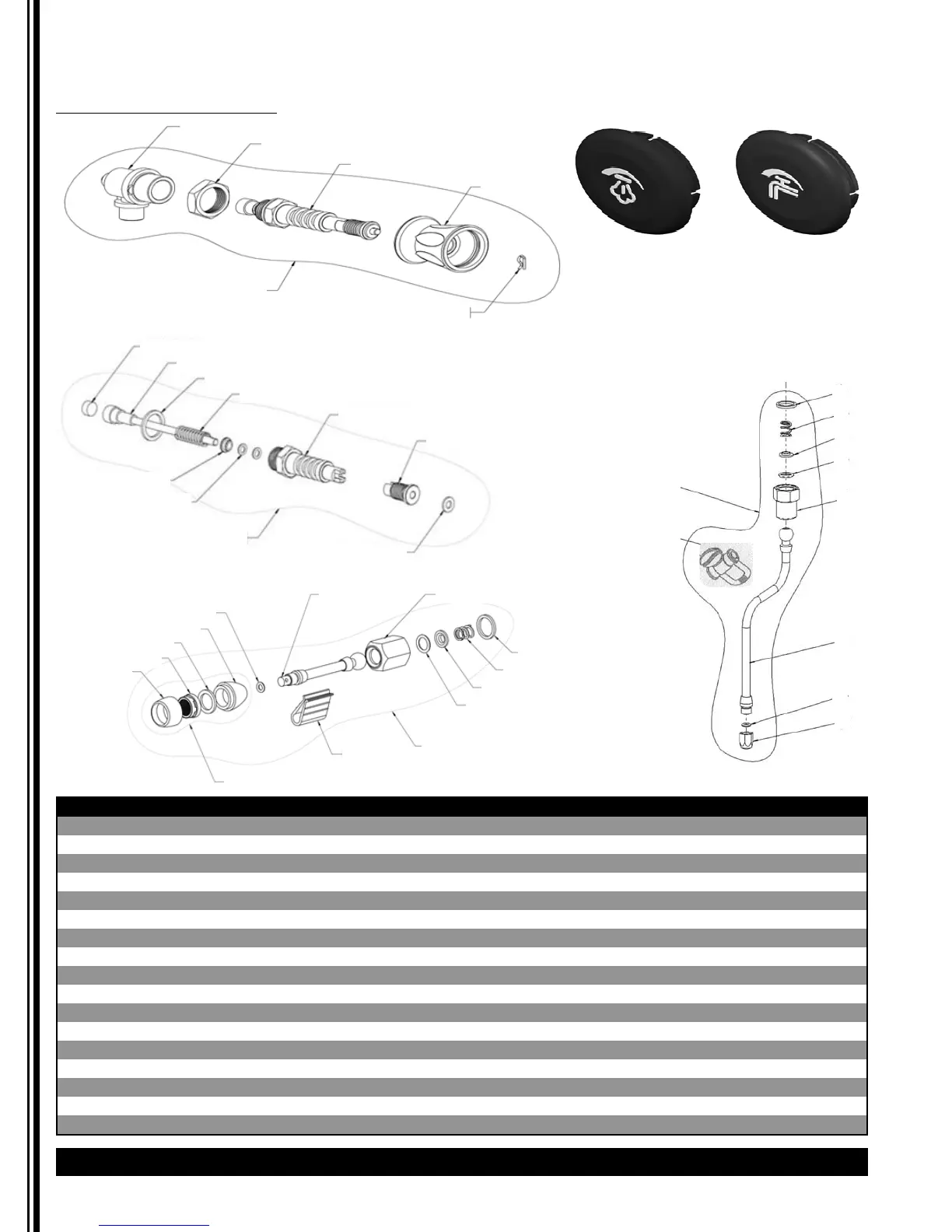

Parts Diagram (continued)
Water and Steam Assembly
Item Part # Descripon Item Part # Descripon
1 410-00511 TAP BODY 19 EXTERNAL SPRAYER
2 BRASS NUT 20 SILICON GASKET
3 410-00512 WATER/STEAM TAP UNIT 21 HOT WATER SPRINKLE-NOZZLE (UPPER)
4 01336L AS�KNOB 23 HOT WATER TUBE KIT
5 01311L R STEEL CIRCLIP 24 NUT PIPE STEAM FOR SPRING
6 01337L WATER STEAM TAP ASSEMBLY 25 01312L PIPE GASKET TEFLON
7 01333L STEAM KNOB CAP 26 STEAM TAP SPRING
8 01332L HOT WATER KNOB CAP 27 01379L STEAM TAP WASHER
9 01308L SI-GASKET 28 01313L O-RING
10 STEAM HOT WATER A VALVE SHAFT 29 410-00513 KIT HOT WATER TUBE
11 01310L COPPER SEAL 31 EXTERNAL SPRAYER
12 STEAM TAP SPRING 32 410-00514 STEAM TUBE
13 TAP CONNECTOR 33 410-00515 STEAM TUBE KIT
14 01335L CHROMED TAP SHAFT 34 410-00516 ANTISCORCHING CLIP
15 WASHER (SUS 304) 35 O-RING
17 TIGHTING GASKET 36 STEAM SPRAYER
18 HOT WATER SPRINKLE-NOZZLE (UNDER)
6
13
5
17
16
3
15
22
21
20
19
18
14
12
11
10
9
3
2
1
4
23
24
25
26
31
30
29
28
27
36
32
24
28
27
26
25
33
34
7
8
35
