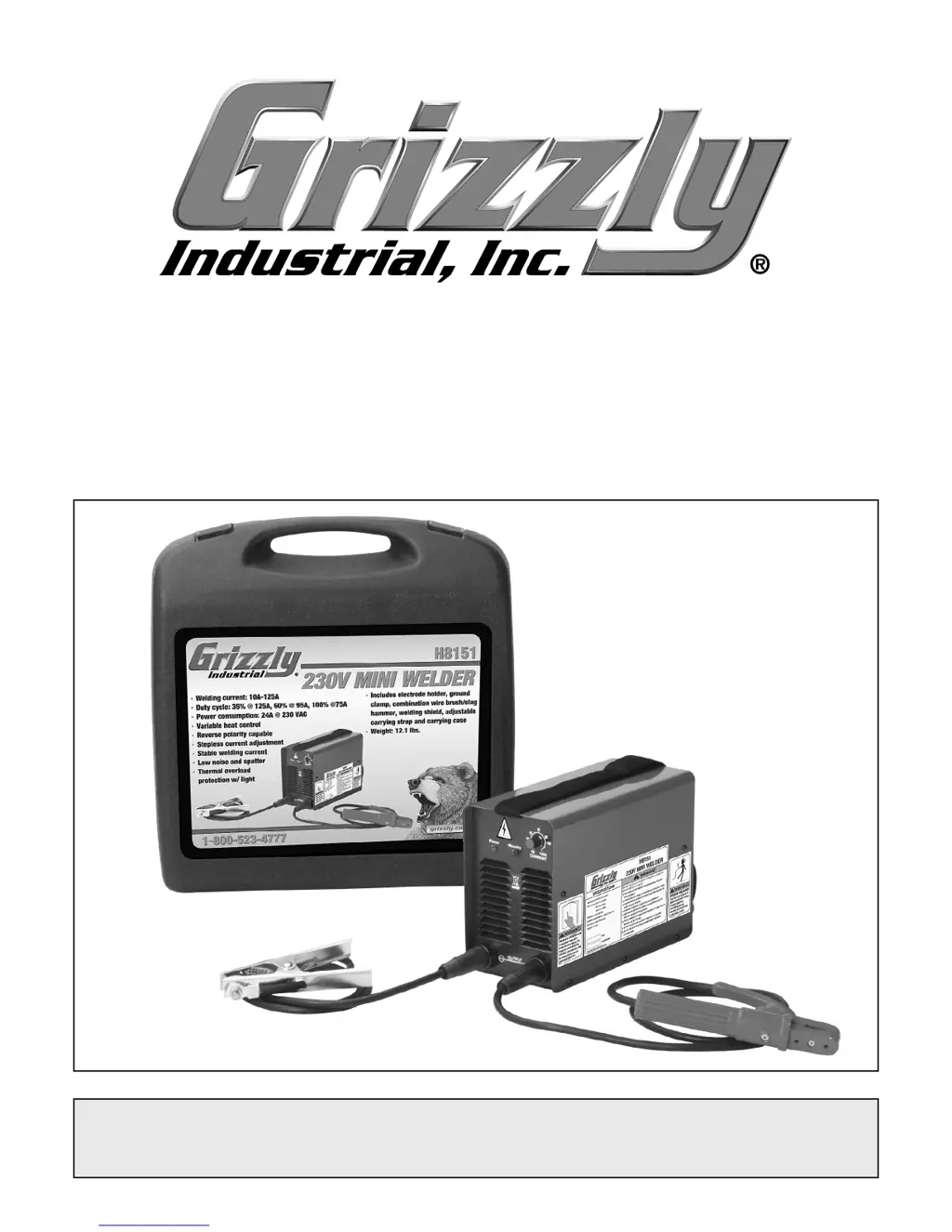

MODEL H8151
230V MINI WELDER
OWNER'S MANUAL
COPYRIGHT © MAY, 2007 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#TS9041 PRINTED IN CHINA

Table of Contents

Questions and Answers

  • J
    Jennifer HallJul 25, 2025
    Why does my Grizzly 230V not power up?
    • D
      devingregoryJul 25, 2025
      If your Grizzly Welding System doesn't power up or the breaker trips, here's what to check: * **Faulty Plug/Receptacle:** Ensure the plug and receptacle have good contacts and are wired correctly. Test and correct the wiring if needed. * **Wiring Issues:** Look for broken wires or disconnected/corroded connections. Repair or replace them as necessary. * **Faulty ON/OFF Switch:** If the switch is defective, replace it.
  • H
    hkentJul 29, 2025
    How to reduce spatter on my Grizzly 230V Welding System?
    • M
      Mr. David Phillips MDJul 30, 2025
      If your Grizzly Welding System is producing excessive spatter, consider the following: * **Amperage Too High:** Either select a larger electrode or decrease the amperage. * **Voltage/Arc Length Issues:** Reduce the voltage or shorten the arc length. * **Incorrect Electrode:** Ensure you're using the correct type and size of electrode.
  • B
    Benjamin AndersonAug 3, 2025
    What to do if there is porosity in my Grizzly 230V Welding System welds?
    • A
      Amber WelchAug 3, 2025
      If you're experiencing porosity (small cavities or holes) in your welds with your Grizzly Welding System, here are a few things to check: 1. **Arc Length:** Reduce the length of the arc. 2. **Workpiece Cleanliness:** Remove all grease, oil, moisture, coatings, rust, and dirt from the workpiece before welding. 3. **Electrode Condition:** Ensure you are using dry electrodes. 4. **Electrode Type:** Use the correct type and size of electrode.
  • S
    Sandra BaileyAug 7, 2025
    How to fix lack of penetration in Grizzly 230V?
    • D
      doughertyadamAug 7, 2025
      If you're experiencing a lack of penetration with your Grizzly Welding System, consider the following: * **Improper Joint Preparation:** Ensure the material isn't too thick and that the joint preparation allows access to the bottom of the groove. * **Improper Weld Technique:** Keep the arc on the leading edge of the weld puddle and reduce travel speed. * **Insufficient Heat:** Increase amperage and select a larger electrode.
  • T
    Trevor SmithAug 11, 2025
    How to prevent burn through with Grizzly 230V Welding System?
    • D
      Douglas BrennanAug 11, 2025
      If you're getting burn-through or excessive penetration with your Grizzly Welding System, it's likely due to excessive heat. Try selecting a lower amperage, using a smaller electrode, and increasing or maintaining a steady travel speed.
  • S
    Scott DavisAug 15, 2025
    Why is my Grizzly Welding System weld not fusing properly?
    • G
      grodgersAug 15, 2025
      If the weld fails to completely fuse with the base metal or prior weld bead when using your Grizzly Welding System, consider these potential causes: * **Insufficient Heat:** Increase amperage or select a larger electrode. * **Improper Welding Technique:** Widen the groove to access the bottom during welding, keep the arc on the leading edge of the weld puddle, and place a stringer bead in the proper location at the joint. * **Dirty Workpiece:** Remove all grease, oil, moisture, coatings, rust, and dirt from the workpiece before welding. * **Duty Cycle Exceeded:** Shut down the welder and allow it to cool.
  • Q
    qcookAug 20, 2025
    Why is there distortion of base metal with my Grizzly 230V Welding System?
    • P
      Pamela MyersAug 20, 2025
      Distortion of the base metal when using the Grizzly Welding System is caused by excessive heat. To minimize distortion, make tack welds along the joint before starting, select a lower amperage for the electrode, increase travel speed, and weld in small segments, allowing cooling between welds.

Summary

Grizzly H8151 230 V Mini Welder Owners Manual

General Safety Warnings

Manual Safety Instructions

Read and understand safety instructions for proper setup, operation, maintenance, and service.

Hazardous Fumes Warning

Welding fumes can cause cancer, birth defects, or reproductive harm. Use ventilation and respirators.

Introduction to the Welder

Foreword

Welcome to the Model H8151 Mini Welder, emphasizing trouble-free operation and customer satisfaction.

Contact Information

Provides addresses and contact details for comments, service, and parts requests.

Welder Specifications and Identification

Technical Specifications

Lists welding current, duty cycles, power consumption, output power, and net weight.

Component Identification

Identifies front and rear components of the Model H8151 welder with labeled diagrams.

Safety Instructions

General Safety Precautions

Emphasizes reading the manual and understanding safety symbols to prevent hazardous situations.

SMAW Specific Safety Guidelines

Provides essential safety rules for Shielded Metal Arc Welding, covering fumes and confined spaces.

Hazard Prevention and Personal Safety

Covers electrical, fire, explosion hazards, EMF, body protection, and work area safety.

Equipment Maintenance and Support

Ensures equipment maintenance by qualified personnel and guidance for experiencing difficulties.

General Cautionary Notes

General advice to consider safety first and use equipment with caution and respect.

Welding Codes and Standards Resources

Circuit Requirements and Grounding

220 V Operation and Amperage

Details on connecting to a 220V power source, amperage draw, and circuit requirements.

Electrical Grounding for Safety

Instructions on proper grounding to reduce the risk of electric shock and fire hazards.

Extension Cord Usage Guidelines

Recommendations and requirements for using extension cords with the welder.

Arc Welding Grounding Principles

Explains the two circuits involved in welding and the importance of separate grounding for safety.

Welding Machine and Workpiece Grounding

Details on grounding the welder's enclosure and the workpiece, avoiding double grounding.

Inventory and Shipment Check

Checking Shipment Contents

Instructions for checking the welder and accessories against the packing list after delivery.

Welder Operation Procedures

Operational Safety Precautions

Safety warnings regarding eye/lung protection and avoiding entanglement with machinery.

Understanding Welder Duty Cycle

Explains duty cycle, how it affects welder operation, and indicators of overheating.

General Arc Welding Steps

Provides general steps for successful welding, including preparation, technique, and environmental awareness.

Available Welding Accessories

Auto Darkening Welding Helmet

Description of the H7786 welding helmet with UV/IR filters and adjustable features.

Welding Respirators

Details on G7868 respirators, offering flame retardant shells and depth filters for fume protection.

Leather Protective Gear

Information on leather jackets, knee pads, and shoe covers for protection from welding sparks.

Deluxe Welding Gloves

Description of H3157 deluxe welding gloves made of top grain leather for wrist and forearm protection.

Service and Troubleshooting

Troubleshooting Common Issues

Lists common welder symptoms, their possible causes, and suggested solutions for repair.

Replacement Parts and Labels

Lists part numbers and descriptions for replacement parts and safety labels for the welder.

Warranty Card Information

Warranty and Return Policy
