Grizzly 230V - Welder Specifications and Identification; Technical Specifications; Component Identification

H8151 230V Mini Welder
-3-
Specifications
Welding Current ....................................10–125A
Duty Cycles:
—@ 125A ..............................................
35%
—@ 95A ................................................
60%
—@ 75A ..............................................
100%
Power Consumption ...................24A @ 220VAC
Output Power ....................................60–80V DC
Net Weight .................................................12 lbs.
Identification
A. Electrode Holder and Cable
B. Negative Output Socket
C. Power Lamp
D. Temperature Warning Lamp
E. Carrying Strap
F. Variable Current Output Dial
G. Positive Output Socket
H. Work Clamp and Cable
I. Power Cord
J. ON/OFF Switch
K. Cooling Fan and Cover
L. Welder Enclosure Ground Terminal

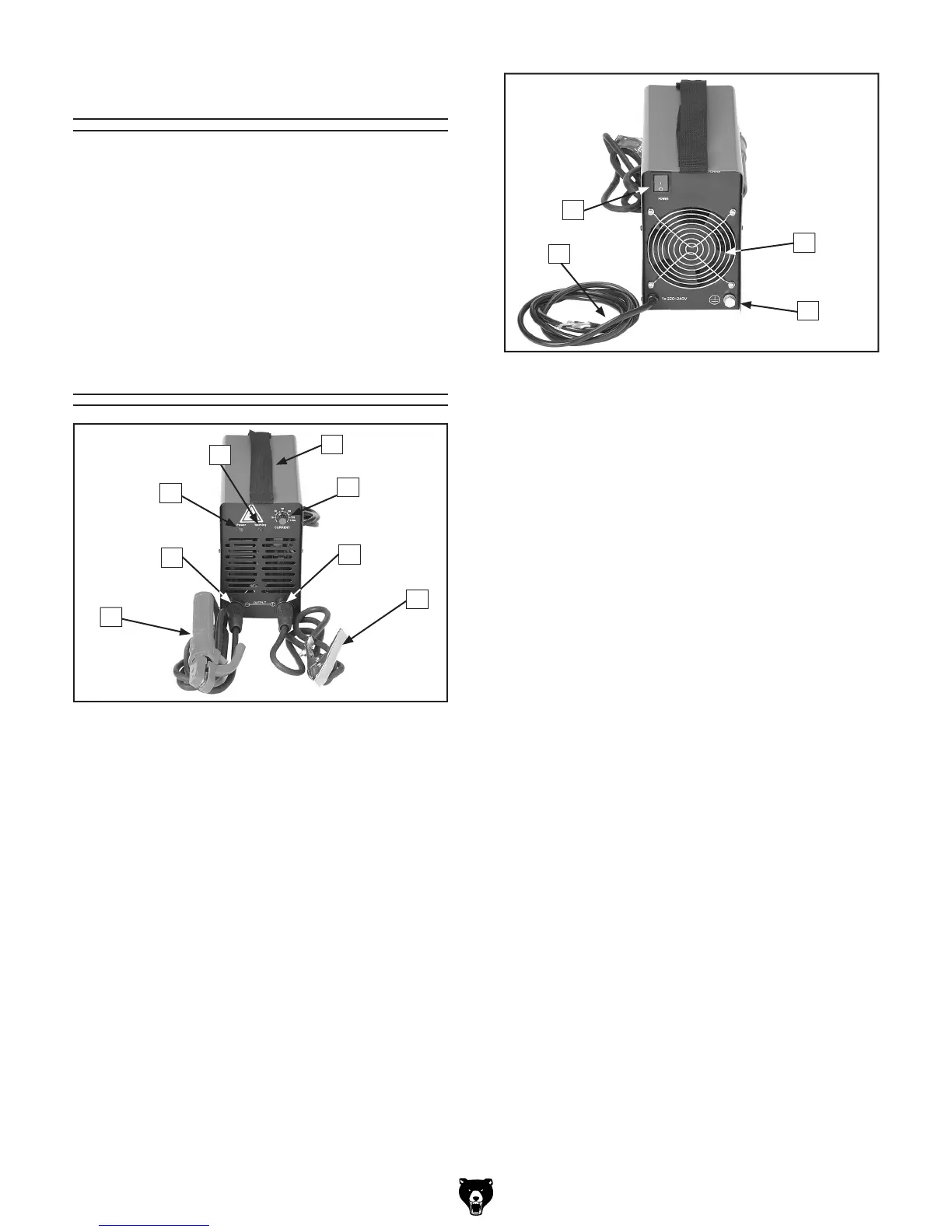

Figure 1. Model H8151 front view.
C
D
F
G
B
A
H
E
Figure 2. Model H8151 rear view.
I
L
J
K
