-8- H5502 Benchtop Bending System
1. Bending tool—Used for three different
types of operations.
A—Bending metal at precise angles ranging
from 0-60˚ and 0-90˚ depending on which
side of the bending block is needed to com-
plete the task at hand.
B—Rolling metal, making curves of various
degrees, diameters and shapes. There are
two positions for the guide rollers to locate
into. The inner holes are for smaller diame-
ters and shapes and the outer holes are for
larger ones.
C—Riveting is another function that can be
done to join two pieces of metal together
using rivets.
2. Twist tool—Used to make decorative types
of metal simply by holding one end of the
metal and turning or rotating the other end
until the desired effect is achieved.
3. Scroll tool—Used to make ornamental and
useful type scrolls. The scroll tool comes with
two dies to expand the capacity of the scroll
effect.

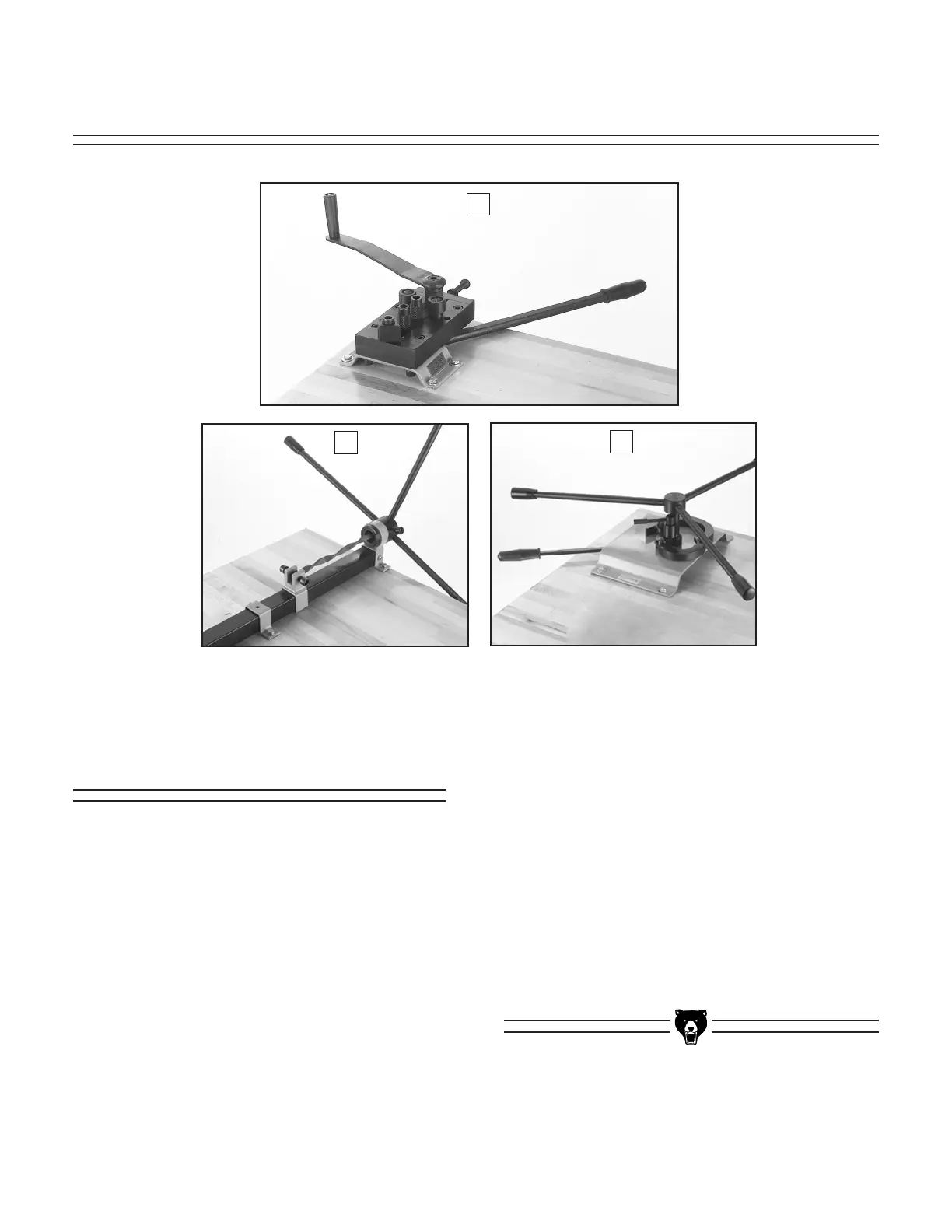

Figure 3. Bending tools.
Functions
Tool Functions
2
1
3
To Next Page
