MAINTENANCE MANUAL ASTIR CS
Rev. 9 28. Nov. 2005
7
Annual Inspection
During each annual inspection check front and rear attachment for noticeable play
before de-rigging the horizontal stabilizer. Therefore move the stabilizer at the tips
carefully to all directions.

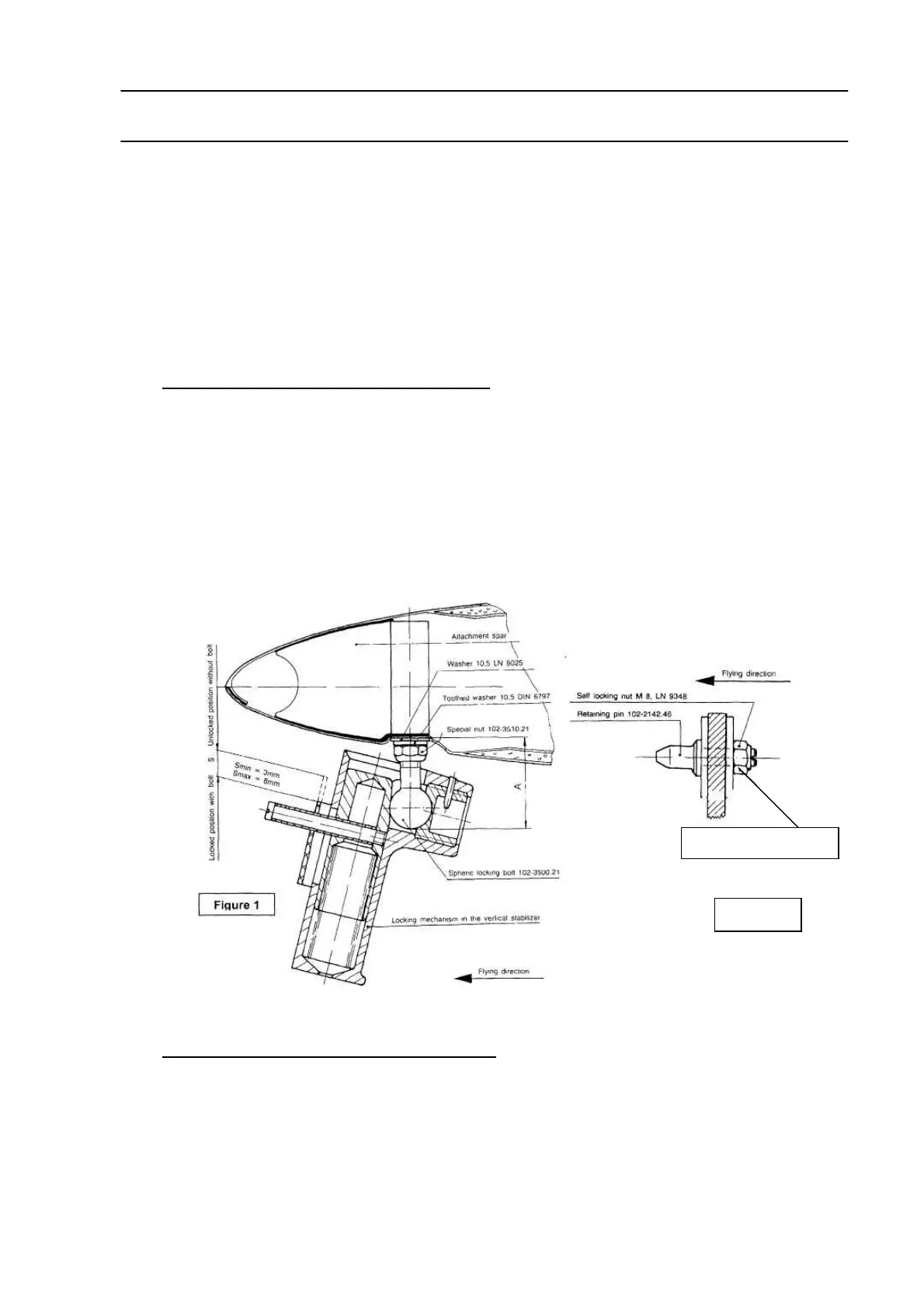

If play is noticed in the front attachment the spherical bolt must be replaced (see
figure 1). Determine the ball diameter. When ordering advise the measured diameter
"D" + 0.1 mm. Also advise gap width “S” as measured.
Remove spherical bolt from elevator. Check bolt for cracks.
Upon re-installation apply correct torque. (20 Nm, tolerance +4 / -2). (NOTE: See
also MSB 306-38).
if play is noticed in the rear attachment the retaining pins 102-2142.46 must be
replaced as follows: (refer to figure 2):
remove horizontal stabilizer.
loosen nut M8, hold bolt using a screwdriver.
during removal of the bolts pay attention that the large washers remain on the
aluminum plate.
Torque with 13 Nm
Figure 2
