REPAIR INSTRUCTION ASTIR CS
Rev. 9 28. Nov. 2005
12
Construction details of additional equipment attachment
fittings
The fittings for the oxygen bottles are built in as standard equipment on the right
hand side of the luggage compartment. Supports and quick release buckles may be
obtained from the manufacturer.

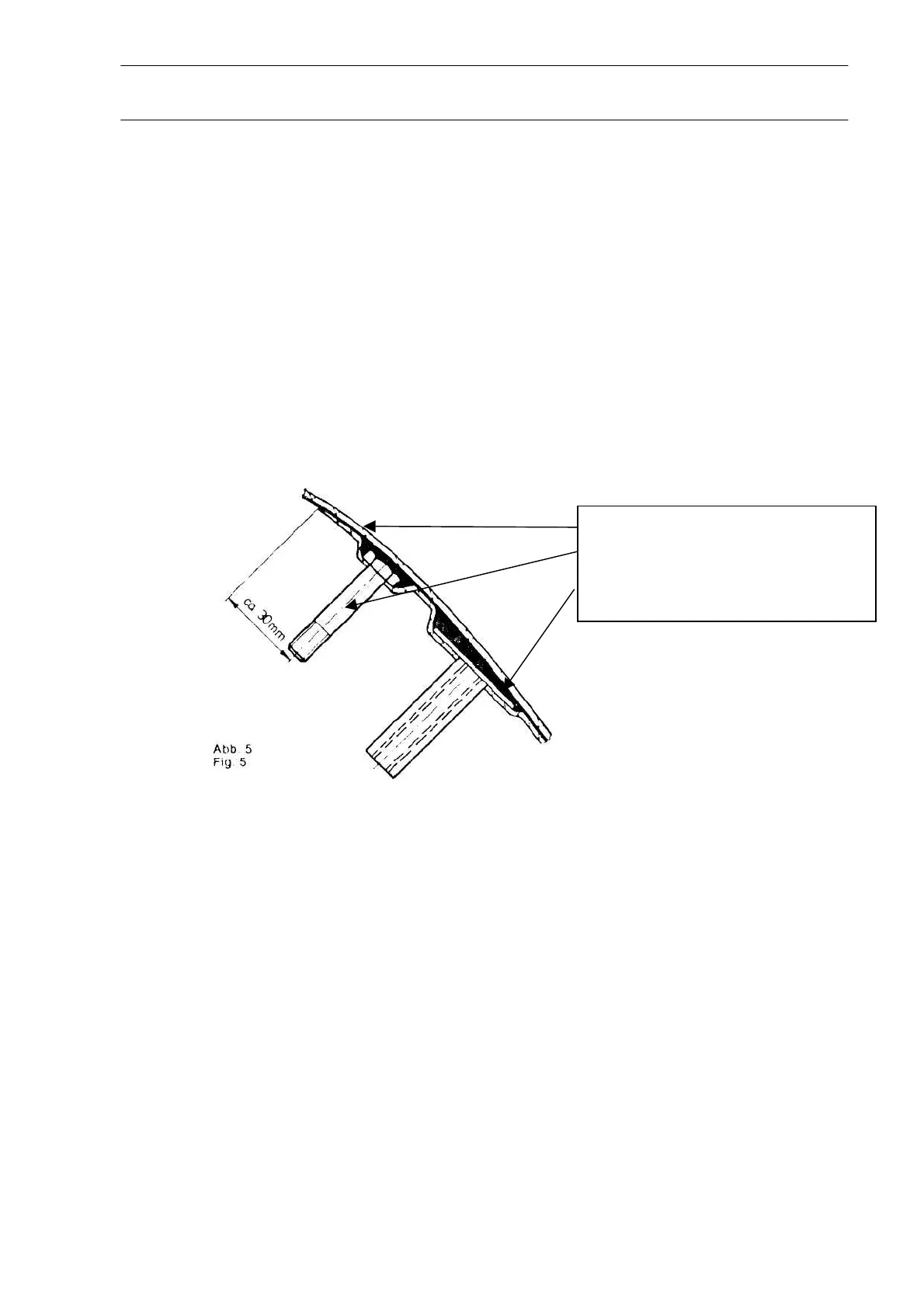

Other fitting points may be installed as shown. (Figure 5).
The fitting shall be made as shown in the drawing so as to take the weight of the
additional equipment. Under loads of up to 10g no piece of equipment must come loose
from it’s support. Following installation of additional equipment, a weight and balance
report shall be compiled to ascertain that the C of G is within the permitted limits.
Fuselage skin
Bolt
Reinforcement 2 Layers 92140
3 Layers 92 140
R
in mix
wi
h
n fl
k
