REPAIR INSTRUCTION ASTIR CS
Rev. 9 28. Nov. 2005
6

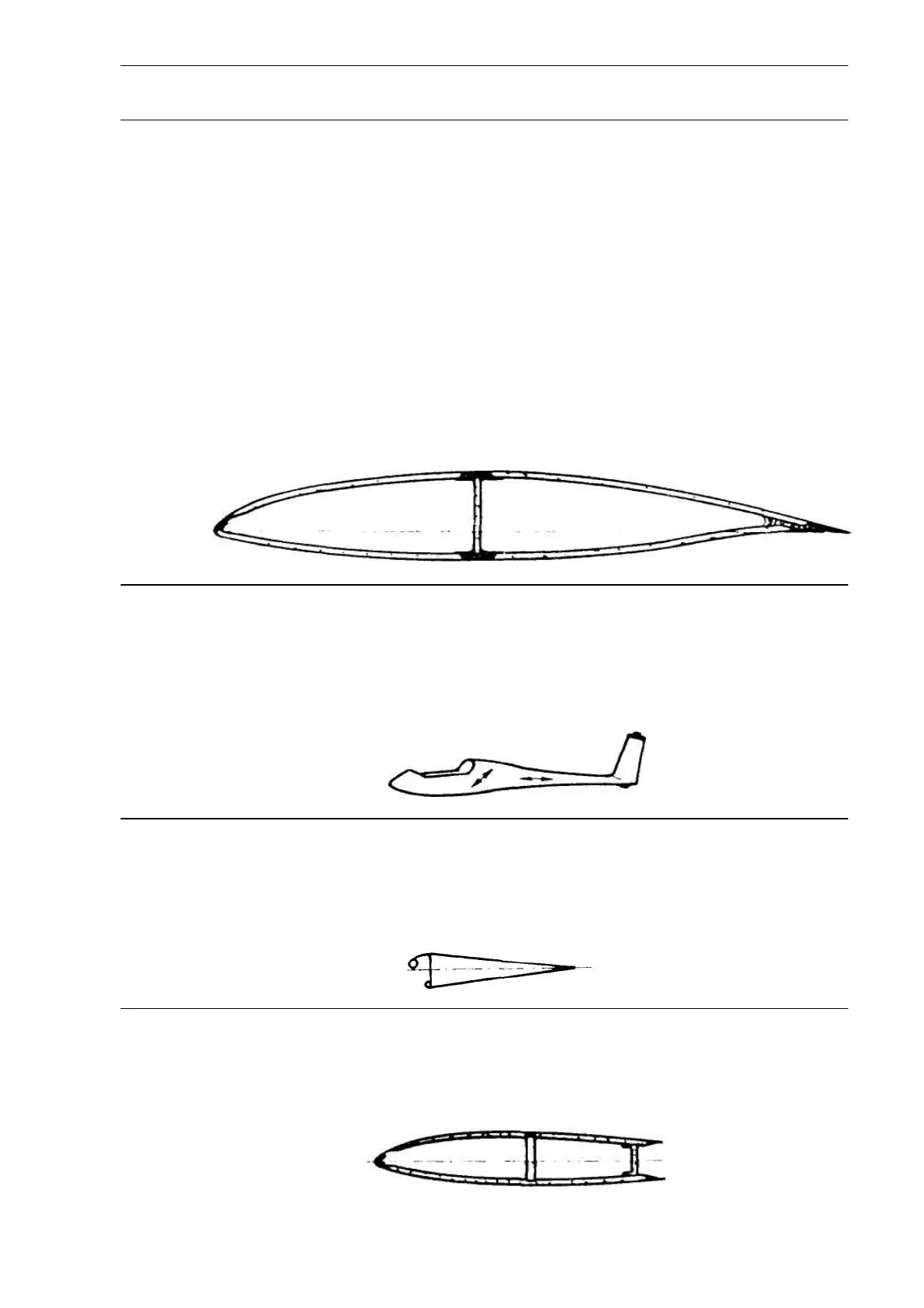

Simplified texture plan of Astir CS
Reinforced regions for special loads and stress conducting are not shown.
1. Flügel
Außenlaminat
1 Lage 92110 diagonal
1 Lage 92125 diagonal
Kern
Conticell 60 8 mm
Innenlaminat
1 Lage 92125
Wlng
Outer laminate
1 Layer 92110
1 Layer 92125
Core
Conticell 60 8 mm
Inner laminate
1 Layer 92125
2. Rumpf
Von außen nach innen
1 Lage 92110 längs
1 Lage 92146 längs
3 Lagen 92140 diagonal
Fuselage
From outside to inside
1 Layer 92110 lengthwise
1 Layer 92146 lengthwise
3 Layers 92140 diagonally
3. Ruder
Höhenruder
Seitenruder
Querruder
2 Lagen 92125 diagonal
Controls
Elevator
Rudder
Aileron
2 Layers 92125 diagonally
4. Höhenflosse
2 Lagen 92110 diagonal
Kern: Conticell 60, 6 mm
1 Lage 92110 diagonal
Fin
2 Layers 92110 diagonal
Core: Conticell 60, 6 mm
1 Layer 92110 diagonally
