Groen TDH Series Operator's Manual

19 OM-TDH(C)-20/24/40/48 (C,A,C2T™) Domestic

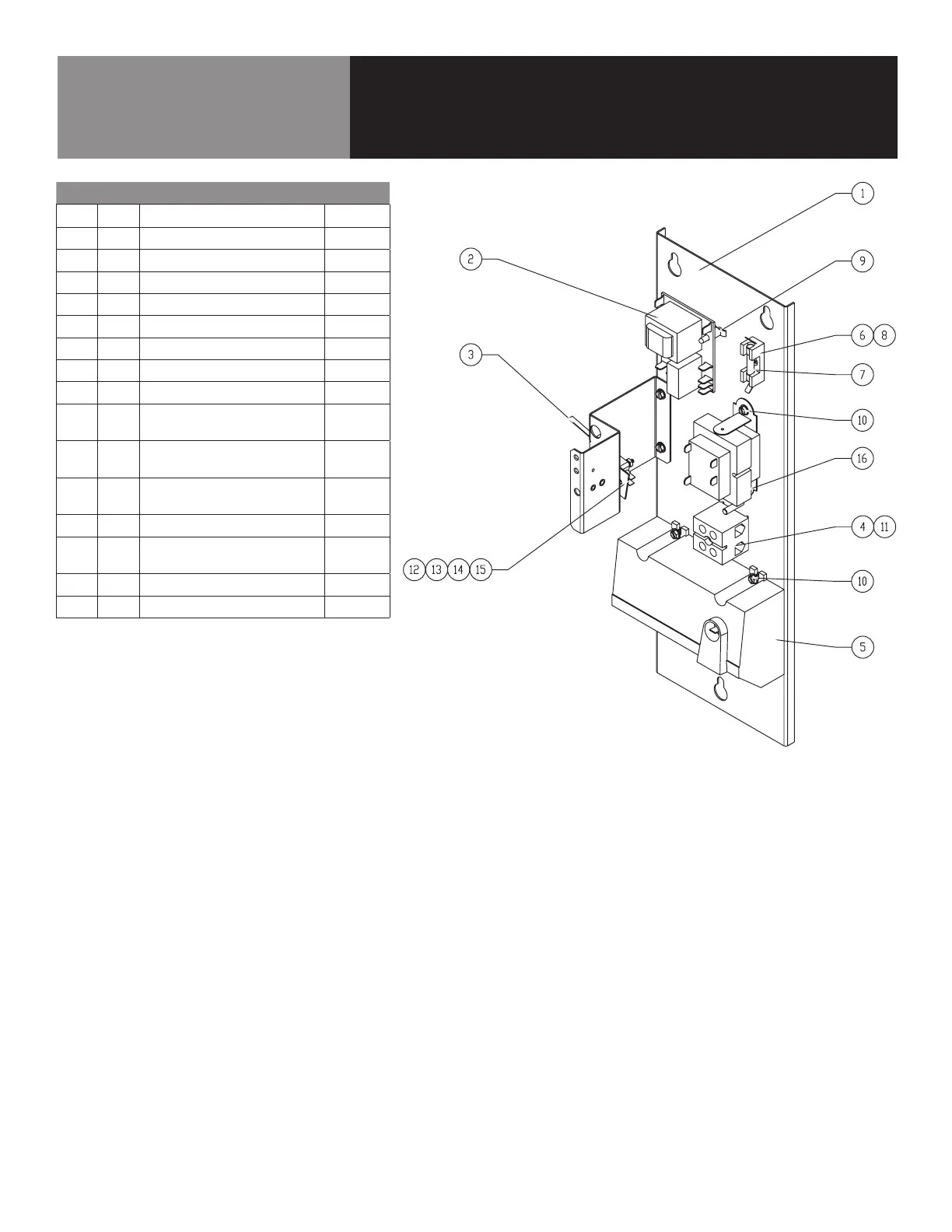

Parts List
Key Qty Description Part No.
1 1 ELEC. MOUNTING BRACKET 140420
2 1 CONTROL, WATER LEVEL, 24V 122192
3 1 MICRO SWITCH 002982
4 1 TERMINAL BLOCK, TWO POLE 003887
5 1 IGNITION MODULE 085153
6 1 FUSE, HOLDER, TYPE 3 AG 077854
7 1 FUSE, THREE AMP TYPE 3 AG 077853
8 1 SCREW, 6-32 X 3/8 LG (FOR #6) 009697
9 3 P.C. BOARD MOUNTING POST 099901
10 5 SCREW, 8 X 3/8 LG, HEX SLOT (FOR
#5 AND #17)
069789
11 1 SCREW, #8-32 X 1-1/4 RND HEAD
(FOR #4)
005056
12 2 SCREW, ROUND HEAD 4-40 X 3/4
LG. (FOR #3)
003122
13 1 BARRIER INSULATION (FOR #3) 003490
14 2 WASHER SHAKEPROOF LOCK, #6
(FOR #3)
005715
15 2 NUT, HEX 4-40 (FOR #3) 003121
16 1 TRANSFORMER, 20 VA 120V 137487
For Classic & Advanced Control
TDH Models Only
