STEP 2

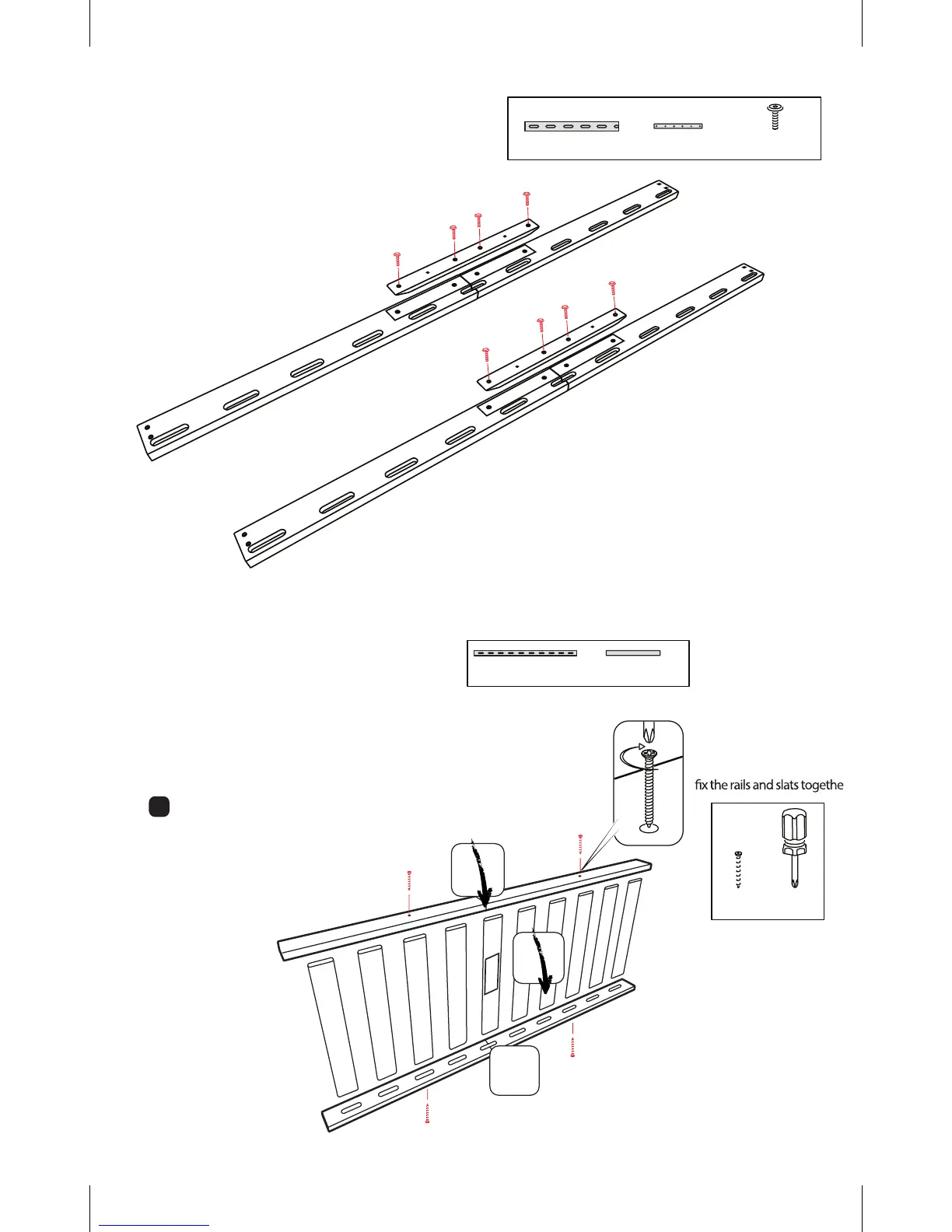

ASSEMBLE THE BASE USING THE COT BED SLATS
Lay one side rail down then slot all slats into the mortises.
Place the second side rail on top.
Working from one end slot all stats into the mortises.
Use the four wood screws to
r.
x2 x11
Assembled base rails
PE
Cot Bed Slats
PF
x4
Wood Screws
HD
Screw Driver
1.
2.
3.
3
Ensure the slat with the warning labels is correctly positioned
in the middle and the “this way down” lable
is facing down as directed by the
warning lable on the rails.
!
x4 x2
BILATERAIL
TM
Base Rails
BILATERAIL
TM
Base Brackets
PGPE
ASSEMBLE BILATERAIL TM BED RAILS
x8
20mm Bolts
HE
Patent pending
STEP 1
To Next Page
