Growatt MIN 5000TL-X User Manual

19
20

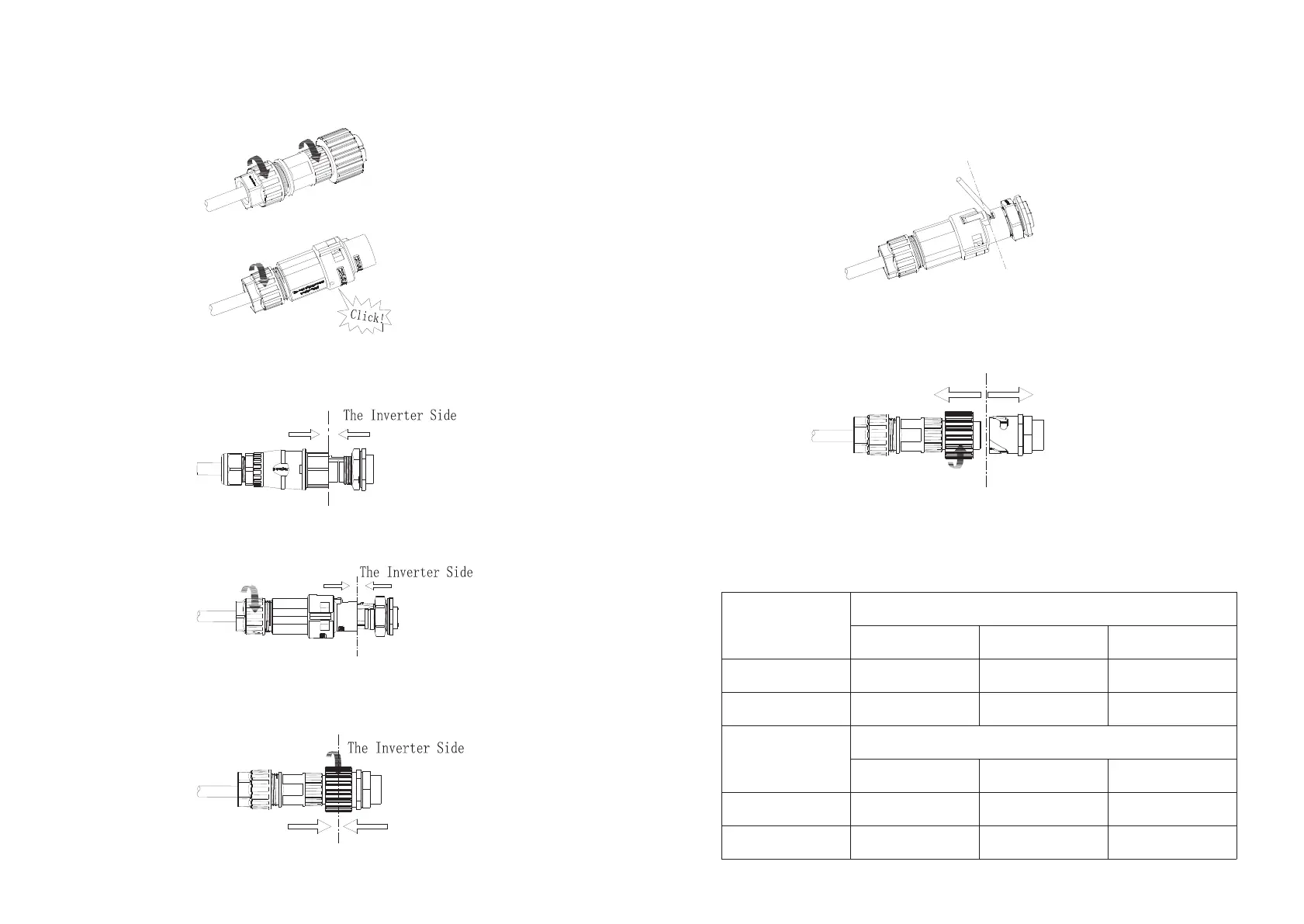

3.Push the threaded sleeve into the socket, Tighten up the cap on the terminal.
4.Finally, Push or screw the threaded sleeve to connection terminal until both are locked
tightly on the inverter.
5.To remove the AC connector, press the bayonet out of the slot with a small screwdriver
and pull it out,or unscrew the threaded sleeve,then pull it out.
Wire suggestion length
Conductor cross
section
Conductor cross
section
Max. cable length
Max. cable length
MIN 2500 TL-X
MIN 4200 TL-X
MIN 4600 TL-X
MIN 3000 TL-X
MIN 5000 TL-X
MIN 3600 TL-X
MIN 6000 TL-X
4 mm² 12AWG
5.2 mm² 10AWG
48m
28m
40m
26m
33m
24m
5.2 mm² 10AWG
6.6 mm² 9AWG
60m
36m
50m
33m
42m
30m
Lock the housing
Lock the housing
Lock the housing
Unlock the housing
The Inverter Side
The Inverter Side
Unlock the housing

Growatt MIN 5000TL-X Specifications

General

Purpose	Solar panel
Efficiency	98.4 %
Noise level	35 dB
Output power	5000 W
Input current	22.7 A
Input voltage	80 - 500 V
Output voltage	180 - 280 V
Input frequency	50/60 Hz
Power supply type	Indoor
Power current type	DC1-to-DC2
Maximum input power	7000 W
Maximum input voltage	500 V
Nominal output voltage	230 V
International Protection (IP) code	IP65
Display type	OLED
Product color	White
Built-in display	Yes
Quantity per pack	1 pc(s)
Operating temperature (T-T)	-25 - 60 °C

Weight and Dimensions

Depth	160 mm
Width	375 mm
Height	350 mm
Weight	10800 g
