Growatt MIN 5000TL-X User Manual

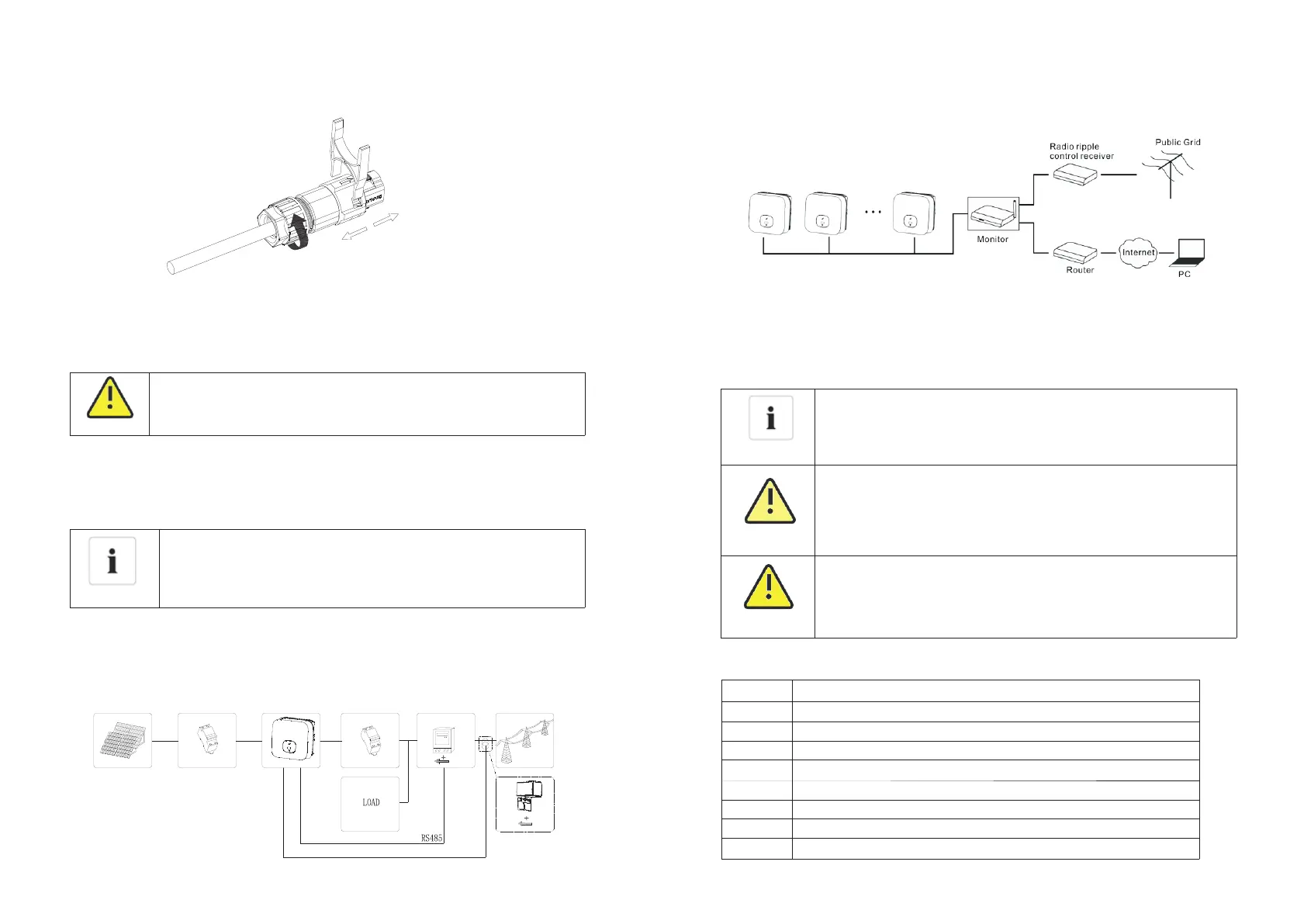

6.8 Inverter demand response modes (DRMS)
This series inverter has the function of demand response modes, We use 8Pin socket as
inverter DRMS connection.
25 26
Active power control with a Radio Ripple Control Receiver(RRCR).
6.8.1 8Pin socket pin assignment
Pin No.
Assignment for inverters capable of both charging and discharging
1
2
3
4
5
6
7
8
DRM 5
DRM 6
DRM 7
DRM 8
RefGen
Com/DRM0
NC
NC
6.6 Grounding the inverter
The inverter must be connected to the AC grounding conductor of the power distribution
grid via the ground terminal (PE) .
WARNING
Because of the transformerless design, the DC positive pole and DC
negative pole of PV arrays are not permitted to be grounded.
6.7 Active power control with smart meter , CT or ripple control
signal receiver
Information
The position of export limitation CT or Meter must between the
Inverter & Load and gird.
This series inverter has integrated export limitation functionality. To use this function,
you can connect smart meter or CT. The smart meter model is Eastron SDM230-Modbus.
The CT Model is TOP 90-S10/SP4(LEM).The primary aperture is 10mm,output cable
length is 5m . The arrow on the CT must pointing towards the inverter.
Step 2 Insert the H type tool and pull it out from the socket.
DRMS application description
ØApplicable to AS/NZS4777.2:2015 or Commission Regulation
(EU) 2016/631.
ØDRM0, DRM5, DRM6, DRM7, DRM8 are available.
Damage to the inverter due to moisture and dust penetration
ØMake sure the cable gland has been tightened firmly.
ØIf the cable gland are not mounted properly, the inverter can be
destroyed due to moisture and dust penetration. All the warranty
claim will be invalid.
Information
CAUTION
WARNING
Excessive voltage can damage the inverter!
External voltage of DRM PORT don't over +5V.

Growatt MIN 5000TL-X Specifications

General

Purpose	Solar panel
Efficiency	98.4 %
Noise level	35 dB
Output power	5000 W
Input current	22.7 A
Input voltage	80 - 500 V
Output voltage	180 - 280 V
Input frequency	50/60 Hz
Power supply type	Indoor
Power current type	DC1-to-DC2
Maximum input power	7000 W
Maximum input voltage	500 V
Nominal output voltage	230 V
International Protection (IP) code	IP65
Display type	OLED
Product color	White
Built-in display	Yes
Quantity per pack	1 pc(s)
Operating temperature (T-T)	-25 - 60 °C

Weight and Dimensions

Depth	160 mm
Width	375 mm
Height	350 mm
Weight	10800 g
