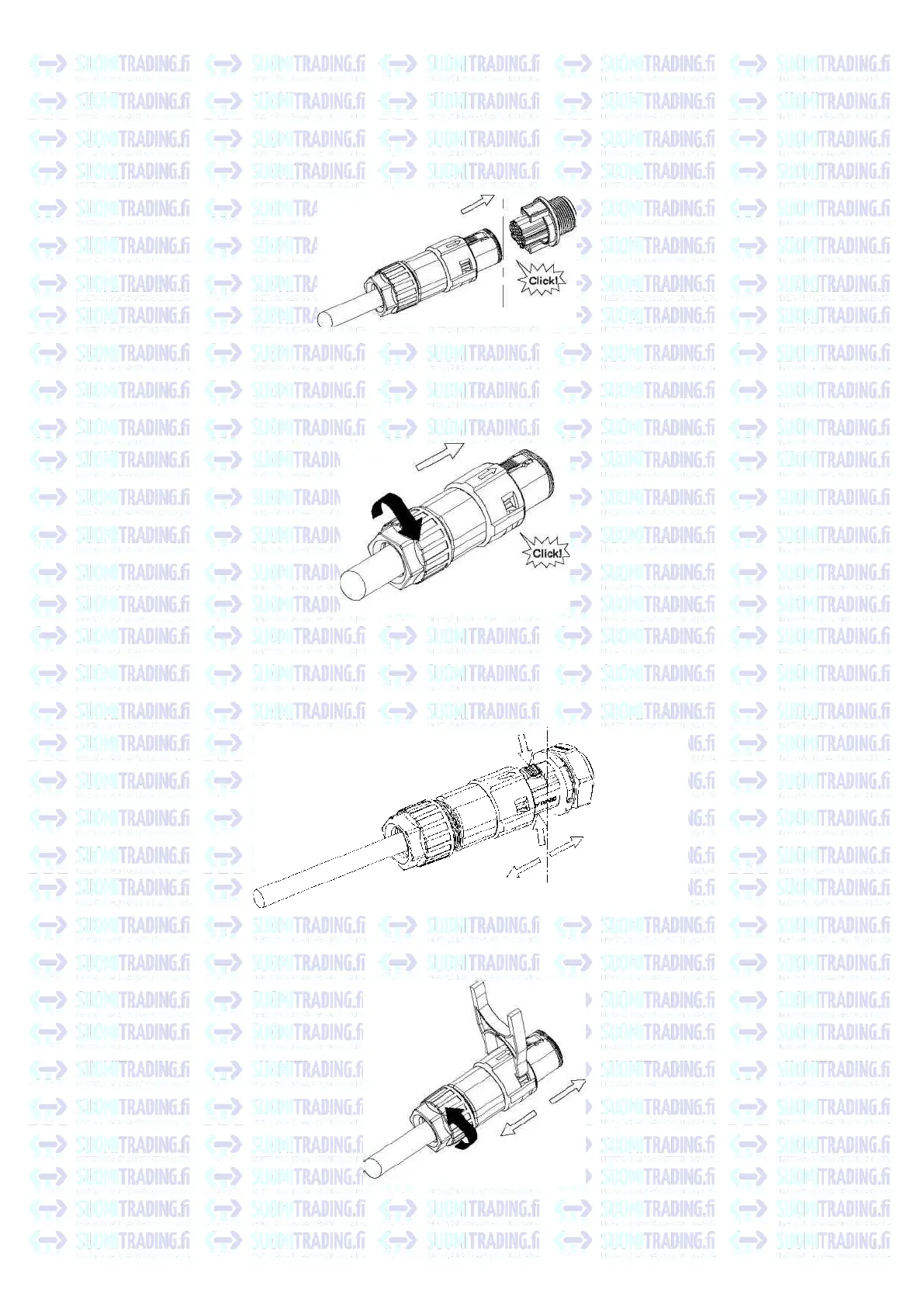

2.Push the threaded sleeve into the socket and tighten the waterproof gland.
\/^ Inverter side
3. Connect the client to the inverter plug until both are tightly locked on the inverter.
Remove the signal connector
1 .Press down the fastener and pull it out of the inverter.
2
2. Insert the H-shaped tool and pull it out of the socket.
23
Fig 6.12
Fig 6.13
the inverter side
Fig 6.1 5
