AC connection steps:
1 .Pass the 5 wires (A,B,C,N and PE wires) through the AC shield,crimp the O/U terminal and
connect to the screw terminals on the AC connector.

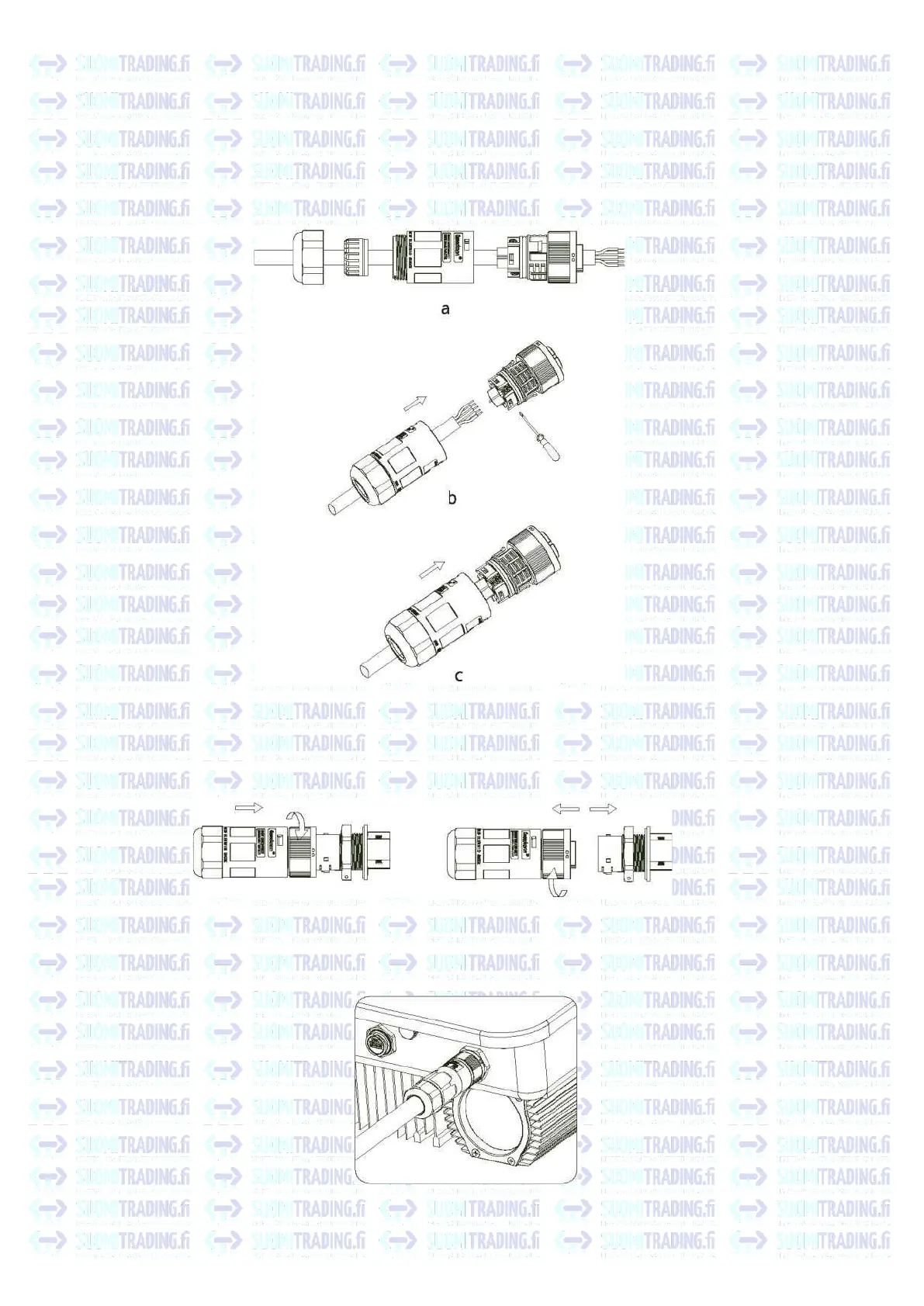

Fig 6.2 AC output wiring diagram
2.Lock the AC cable to the corresponding AC terminal.
Fig 6.3 Wiring diagram of AC terminal
3.Lock the protective cover on the inverter frame, and finally tighten the protective cover hole.
Fig 6.4 AC quick connection diagram
18
