6.6 Active power control with smart meter, CT or ripple
control signal receiver
This series inverter has integrated export limitation functionality. To use this function, you can
connect the Growatt smart meter. For the detailed information, please contact with Growatt.

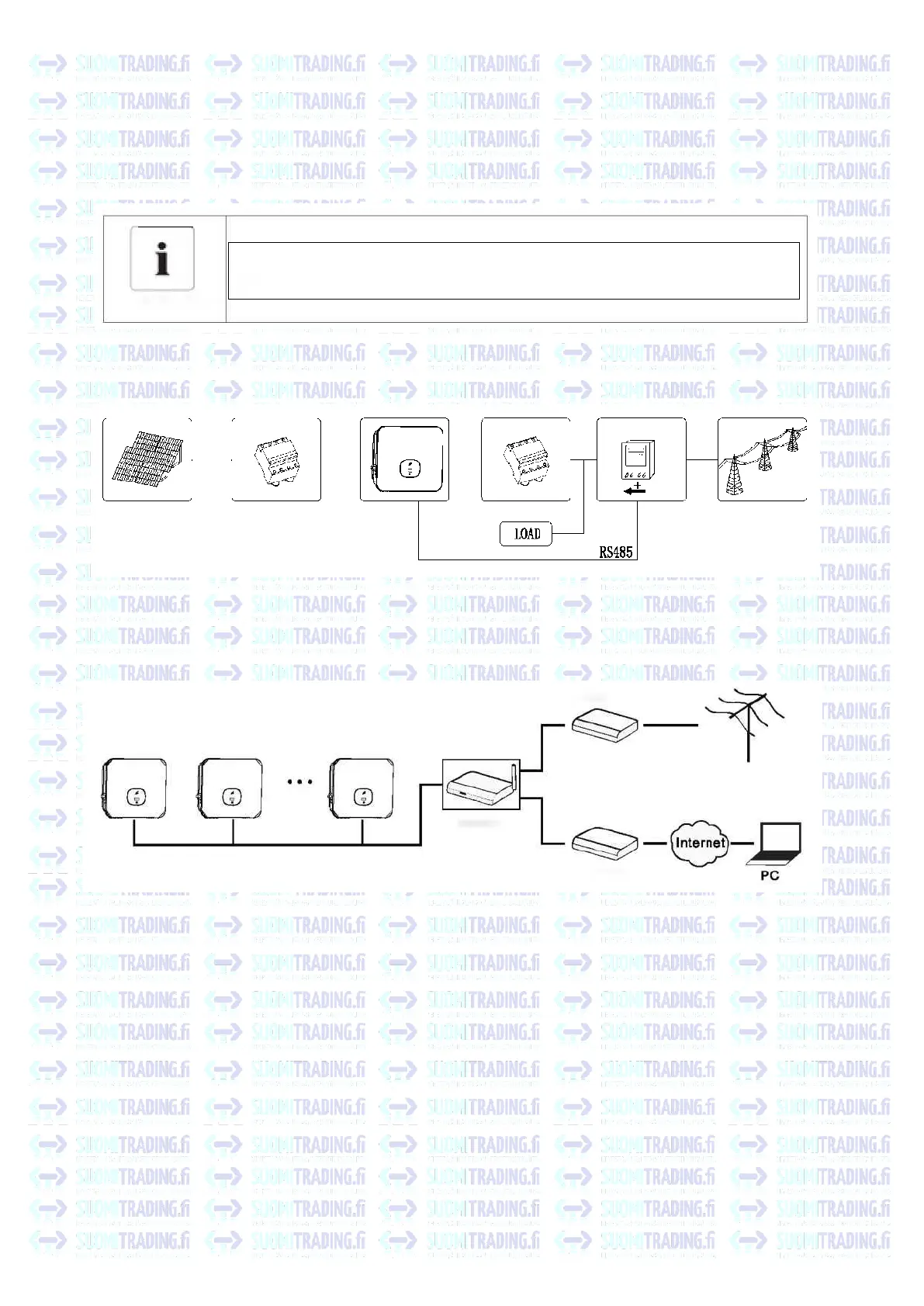

Fig 6.18
Active power control with a Radio Ripple Control Receiver(RRCR).
Radio ripple con-
trol receiver
Fig 6.19
Router
Public Grid
6.7 GFCI(Standard)
6.7.1 Ground Fault Circuit Interrupt(GFCI)
This inverter includes an integrated residual current device .If the leakage current is over
300mA and last for more than 300ms,the inverter will report 201 fault and the OLED will
display Residual I High.
The inverter has the function of detecting residual current and protecting the inverter against
residual current. If your inverter must equip a AC breaker which has the function of detecting
residual current ,you must choose a Type A RCD breaker with the rating residual current more
than 300mA.
26
The position of export limitation CT or Meter must between the Inverter &
Load and gird.
Information
Monitor
