GrowSpan 2000 Series - End Frame Connections Details 5-7-Door Option (B & G); View 1: Door Jamb to Girt; View 2: Door Header to Jamb; View 3: Door Jamb Anchor;Girt

15
Revision date: 12.06.19 GK2EW24120B_G
DOOR JAMB ("C" CHANNEL)
: THIS PART TO BE CUT IN FIELD TO FIT
- (1X) #14 X 1" TEK SCREW
- (2X) WAFER HEAD SCREW #10 X 3/4
NOTE
- (1X) #14 X 1" TEK SCREW
DOOR HEADER ("C" CHANNEL)
- (2X) WAFER HEAD SCREW #10 X 3/4
NOTE
DOOR JAMB ("C" CHANNEL)
: THIS PART TO BE CUT IN FIELD TO FIT
ENDWALL GIRT
- (2X) WAFER HEAD SCREW #10 X 3/4
)QH1330
-(2X) #14 X 1" TEK SCREW
DOOR JAMB ("C" CHANNEL)
ENDWALL GIRT
-(1X) BRACKET (
- (2X) WAFER HEAD SCREW #10 X 3/4

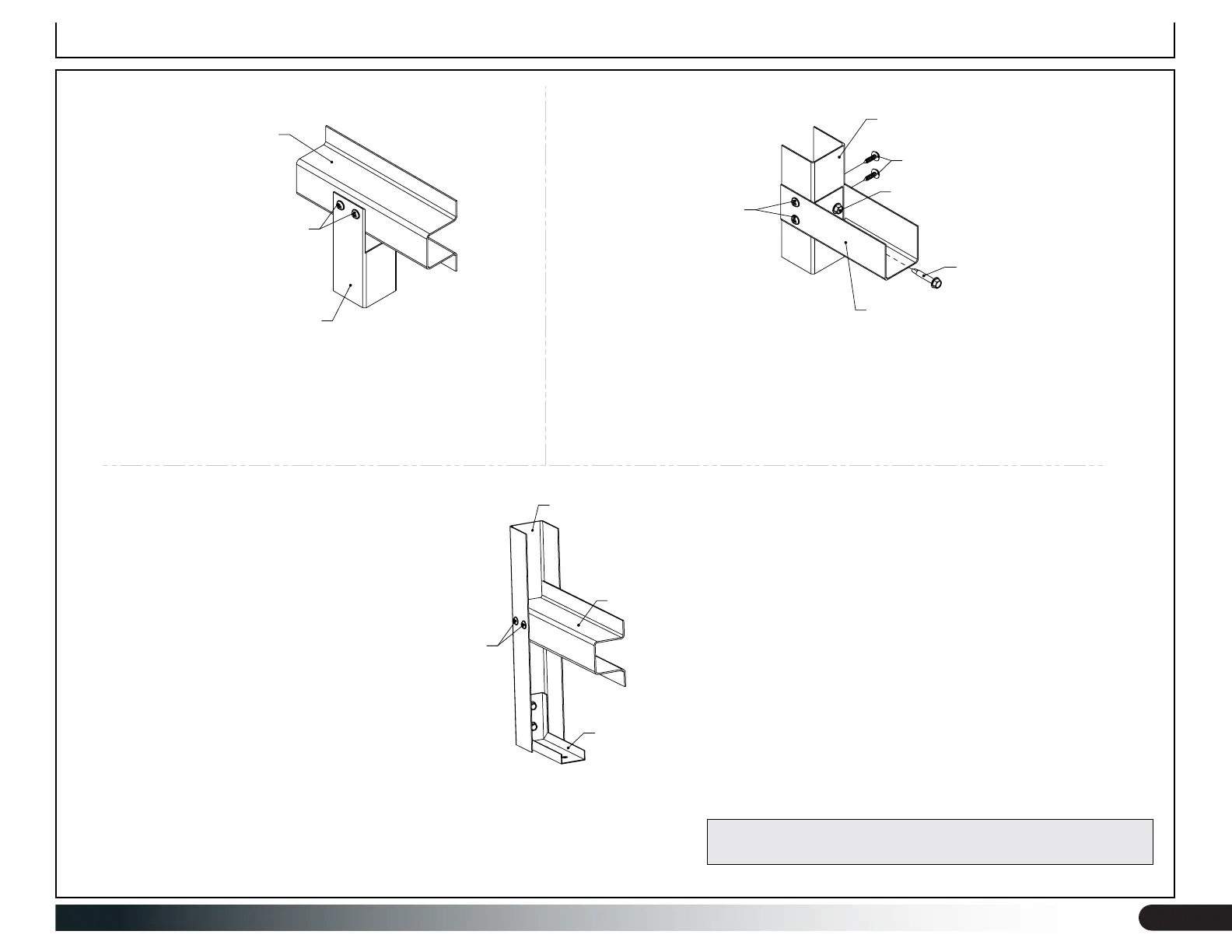

VIEW 1
DOOR JAMB TO GIRT
(ONLY APPLIES TO DOOR ENDWALL OPTION)
VIEW 2
DOOR HEADER TO JAMB
(ONLY APPLIES TO DOOR ENDWALL OPTION)
VIEW 3
DOOR JAMB ANCHOR/GIRT
(ONLY APPLIES TO DOOR ENDWALL OPTION)
End Frame Connections Details 5-7—Door Option (B & G)
ATTENTION: Actual position of QH1330 bracket may differ and
depends on how purchased door is secured to door frame.
