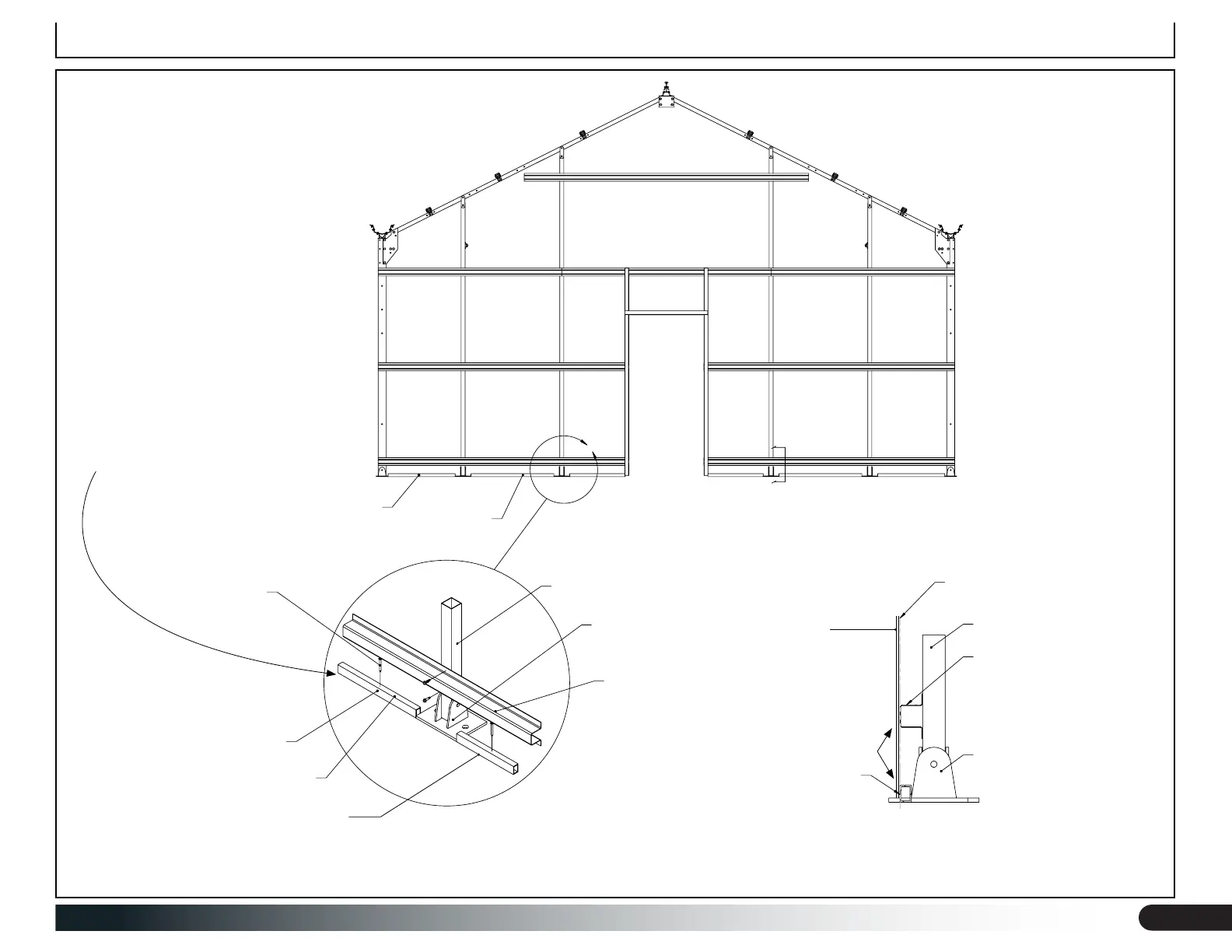

Aluminum Square Tube Istallation Option—Base Plates Only (B)
NOTE: ALUMINUM TUBE SHALL
BE FLUSH TO THE GIRT FACE
AND FIELD CUT TO FIT.
ALUMINUM TUBE DETAIL AT COLUMN BASE PLATE
DETAIL "B"
ALUMINUM TUBE [113301]
ALUMINUM TUBE TO BE FIELD CUT TO FIT
(BASED ON ENDWALL OPTION)
B
A
A
ALUMINUM TUBE [113301]
ENDWALL COLUMN BASE PLAT
E
ENDWALL GIRT
ENDWALL COLUMN
SECTION "A-A"
GLAZING LINE
NOTE: INSTALL ALUMINUM
TUBE PRIOR TO ATTACHING
BOTTOM RUN OF ENDWALL
GIRTS.
- (1X) 3 1/4" TAPCON SCREW [FA7165]
(SPACE AT MAX. 12" O.C.)
NOTE
: POLYURETHANE SEALANT TO BE
USED @ BASE OF ALUMINUM TUBE
GIRT
BASE PLATE (OPTION)
COLUMN
1" X 1 1/2" ALUMINUM TUBE [113301]
FOR USE WITH BASE PLATE
OPTION ONLY
NOTE: ALUMINUM ANGLE ONLY
TO BE USED WHEN ATTACHING
POLYCARBONATE PANELS TO
CONCRETE PAD.
PANEL
ATTACH PANEL TO OUTSIDE
OF GIRT AND ALUMINUM.
ATTENTION: INSTALL BOTTOM
RUN OF GIRT AFTER INSTALLING
THE ALUMINUM TUBING.
PRE-DRILL MOUNTING HOLES IN
ALUMINUM; SPACE AT 12"-16" ON
CENTER.
APPLY SEALANT (112263) UNDER
ALUMINUM THEN SECURE TO
CONCRETE USING CONCRETE
FASTENERS INCLUDED WITH KIT.
TO PREVENT LEAKS AT THIS
CONNECTION, INSTALL PC PANEL
OVER GIRT AND ALUMINUM.
DO NOT INSTALL BEHIND
ALUMINUM.
APPLY SEALANT UNDER AND
ALONG ALUMINUM.
