English (GB)
7

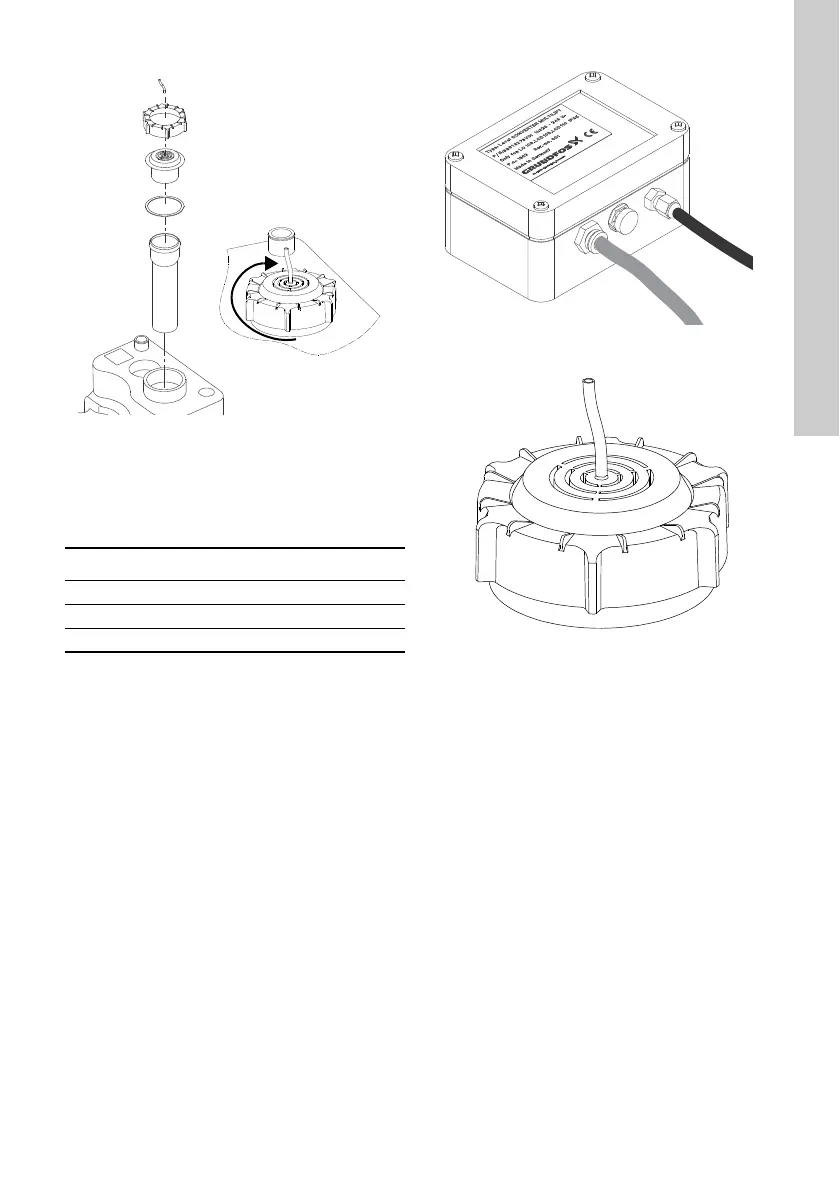

Fig. 8 Installing pressure tube and tightening
screw cap
7. Pull the cable of the new sensor through the PG
cable entry and tighten the PG cable entry.
8. Connect the cable to the connector block
according to the table below.
9. Connect the pressure hose between level
converter and screw cap.
– The pressure hose must be routed rising
towards the controller to avoid condensation in
the hose.
– Connect the pressure hose between the
pressure tube in the tank and the bulk head
fitting in the converter box. The pressure hose
must be inserted up to the stop. Insert
approximately 18 mm. Otherwise there is a
risk of leakage resulting in pressure loss,
inaccurate level detection and malfunction of
the system.
– Excessive lengths of pressure hose should be
cut away. The pressure hose must not be
kinked.
– The connection must be air tight to ensure
reliable operation.
Fig. 9 Fitting hose to level converter
Fig. 10 Fitting hose to pressure tube
10. Close the LC 109, LCD 109 or LCD 110
controller.
11. Reconnect the controller to mains and switch it
on.
12. Flush the tank and check the lifting station for
proper operation.
7.1 Checking the level sensor
To check the function of the level sensor and to verify
that the sensor is operating within the defined levels,
proceed as follows:
1. Remove the pressure tube from the tank again.
2. Fill a bucket with water.
3. Make marks on the tube according to the table
below.
4. Slowly immerse the tube into the water and
watch the reaction of the LEDs when the water
level reaches the various marks. The LEDs on
the LC/LCD control unit, CU 211 / CU 214, should
light up according to the water level in the bucket.
TM05 8889 0714 - TM05 0545 1011
Connection
Controller 11 12 22 32 42 L N
Sensor 5 1 2 3 4 L N
Colour Grey White Green Yellow Pink Brown Blue
TM05 8986 3013TM05 8890 2813
