connection. To enjoy the ARC function, please
ensure your TV is both HDMI-CEC and ARC
compliant and set up accordingly. When
correctly set up, you can use your TV remote
control to adjust the volume output (VOL +/- and
MUTE) of the sound bar.
▪
Connect the HDMI cable ( included ) from
unit's HDMI (ARC) socket to the HDMI (ARC)
socket on your ARC compliant TV. Then press the
remote control to select HDMI ARC.
Tips:
▪
Your TV must support the HDMI-CEC and ARC
function. HDMI-CEC and ARC must be set to
On.
▪
The setting method of HDMI-CEC and ARC
may differ depending on the TV. For details
about ARC function, please refer to the
owner’s manual.
▪
Only HDMI 1.4 or higher version cable can
support the ARC function.
▪
Your TV digital sound output S/PDIF mode
setting must be PCM or Dolby Digital
Method 2: Standard HDMI
▪
If your TV is not HDMI ARC-compliant, connect
your soundbar to the TV through a standard
HDMI connection.
Use an HDMI cable (included) to connect the
soundbar's HDMI OUT socket to the TV’s HDMI
IN socket.
Use an HDMI cable (included) to connect the
soundbar's HDMI IN (1 or 2) socket to your
external devices (e.g. games consoles, DVD
players and blu ray).

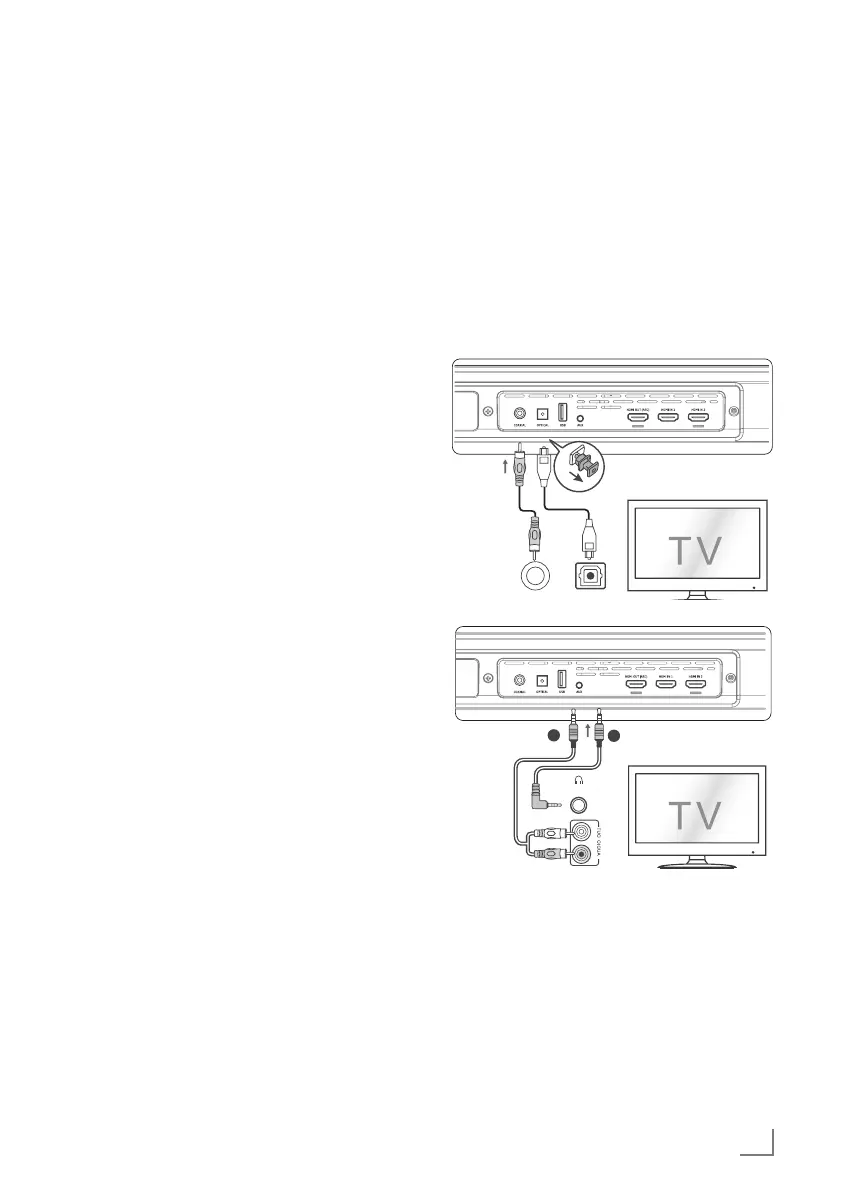

Use the OPTICAL Socket
▪
Remove the protective cap of the OPTICAL
socket, then connect an OPTICAL cable
(included) to the TV’s OPTICAL OUT socket
and the OPTICAL socket on the unit.
Use the COAXIAL Socket
▪
You also can use the COAXIAL cable (not
included) to connect the TV's COAXIAL OUT
socket and COAXIAL socket on the unit.
▪
Tip: The unit may not be able to decode all
digital audio formats from the input source.
In this case, the unit will mute. This is NOT
a defect. Ensure that the audio setting of the
input source (e.g. TV, game console, DVD
player, etc.) is set to PCM or Dolby Digital
.KGJVNUTK
A
B
(Refer to the user manual of the input source
device for its audio setting details) with HDMI
/ OPTICAL / COAXIAL input.
Use the AUX Socket
▪
Use a RCA to 3.5mm audio cable (not
included) to connect the TV’s audio output
sockets to the AUX socket on the unit.
▪
Use a 3.5mm to 3.5mm audio cable (included)
to connect the TV’s or external audio device
headphone socket to the AUX socket on the
unit.
