Tuning the television channels
from satellite (DVB-S/S2)
You have two options for tuning digital satellite
channels.
A The easy installation,
which pre-configures all antenna settings for
the satellite channels on Astra 19.2° East.
B The advanced installation
can be used if you wish to receive satellite
channels from various satellites. To do so,
you must make the antenna settings (Satel-
lite, LNB Power, LNB Type, DISEqC Mode,
LNB Selection) for the satellites chosen.
Easy installation
1 In the »Source Setup« menu, in the »Connec-
tion Type« line, select the option »Satellite«
with »
<
« or »
>
«.
2 Select the line »Easy Installation« with »
V «
or »
Λ « and press »OK« to confirm.
– Other menu options will be displayed,
the satellite Astra 19.2° East is preset.
3 Start the scan with »

« (green).
– The »Search results« menu appears, and
the scan for TV channels begins.
– Depending on the number of television
channels received, this can easily take a
few minutes.
– The scan is complete as soon as the »PRO-
GRAM TABLE« appears.
Note:
7
You can abort the scan by pressing »EXIT«.
Advanced installation
1 In the »Source Setup« menu, in the »Connec-
tion Type« line, select the option »Satellite«
with »
<
« or »
>
«.
2 Select the line »Advanced Installation« with
»
V « or » Λ « and press »OK« to confirm.

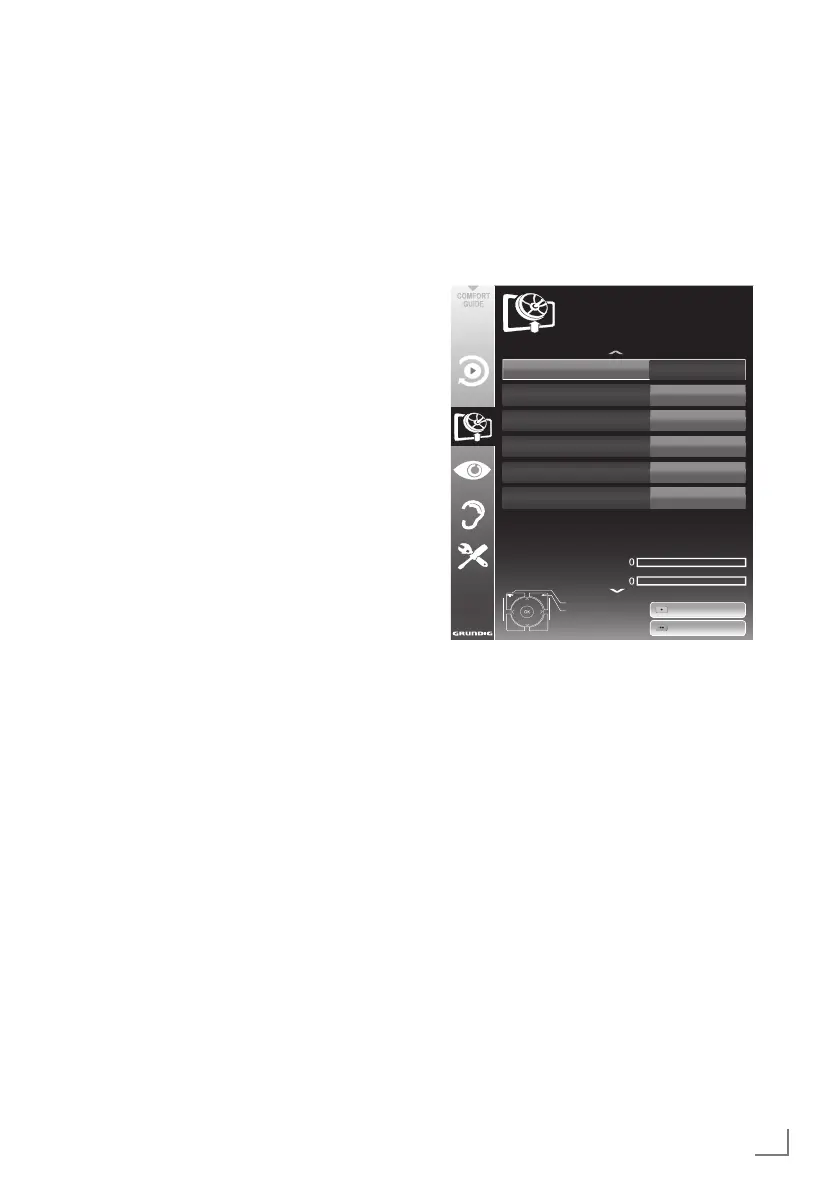

– The menu appears.
Satellite
ASTRA 19.2°,E
Transponder
11362 MHz H
LNB Power
Off
DISEqC Mode
Off
LNB Type
Universal
LNB Selection
Off
Auto Tuning
Quality
Signal strength
Poor Normal Good
Exit
Back
INSTALLATION
ANTENNA SETTINGS
Manual Tuning
08.08.2012
15:46
3 Select the line »Satellite« with » V « or » Λ «
and press
»OK« to confirm.
– The »SELECT SATELLITE« menu appears.
Select the satellites with »
V «, » Λ «, »
<
« or
»
>
« and press »OK« to confirm.
Note:
7
The setting in the line »Transponder« is not
required for this automatic scan.
4 Select the line »LNB Power« with »
V « or
»
Λ «.
Depending on the type of LNB, set the LNB
power supply to »13/18 V« or »14/19 V«
with »
<
« or »
>
«.
5 Select the line »LNB Type« with »
V « or » Λ «.
Select the type of LNB installed with »
<
«
or »
>
«.
SETTINGS
-----------------------------------------------------------------------------------------------------------------------------------------

Grundig 48 VLE 5421 BG Specifications

General

Smart modes	Hotel
Screen shape	Flat
Response time	- ms
Display diagonal	48 \
Display brightness	- cd/m²
Native aspect ratio	16:9
Native refresh rate	200 Hz
LED backlighting type	Edge-LED
Display diagonal (metric)	121 cm
Supported graphics resolutions	1920 x 1080 (HD 1080)
Motion interpolation technology	PPR (Picture Perfection Rate)
3D	No
Annual energy consumption	127 kWh
Tuner type	Analog & digital
Analog signal format system	-
Digital signal format system	DVB-C, DVB-S, DVB-T
Audio system	SRS TruSurround
RMS rated power	40 W
Number of speakers	2
HDMI ports quantity	3
DVI-D ports quantity	0
SCART ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio formats supported	AAC, M4A, WMA
Image formats supported	BMP, JPG, PNG
Video formats supported	AVI, DAT, DIVX, MKV, MOV, MP4, MPG, TRP, TS, VOB
Product color	Black
Panel mounting interface	400 x 200 mm
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	87 W
Power consumption (standby)	0.5 W
Package depth	145 mm
Package width	1160 mm
Package height	790 mm
Package weight	12250 g

Weight and Dimensions

Depth (with stand)	220 mm
Height (with stand)	683 mm
Depth (without stand)	45 mm
Width (without stand)	1086 mm
Height (without stand)	652 mm
Weight (without stand)	9250 g
