Bottom Assembly
D
i
a
m
o
n
d
B
a
n
d
S
a
w
M
a
d
e
i
n
U
S
A
®
Slide
Top Assembly
Cover
Blade
Platform
Important~
DO NOT bend or kink your Blade. A replacement Blade will cost you about $100. Your warranty
does not cover Blades. A bent or kinked Blade will make the saw vibrate, and a badly bent Blade
will not stay on the saw. Stainless Steel blades will not track on this saw.
Unpacking~
Your shipping carton contains the following parts:
• Top Assembly
• Bottom Assembly with Guide Holder installed
• Platform
• Blade (coiled in box)
• Upper Blade Guide Holder
• 3 Guides
• Two Sponges
• Spare Lower Knob and nut
• These Instructions
DO NOT turn either thumbscrew yet. These are
preset for your Blade at the factory. The use of
these thumbscrews is explained further on in this
booklet.
Assembly~
Assembly is very simple.

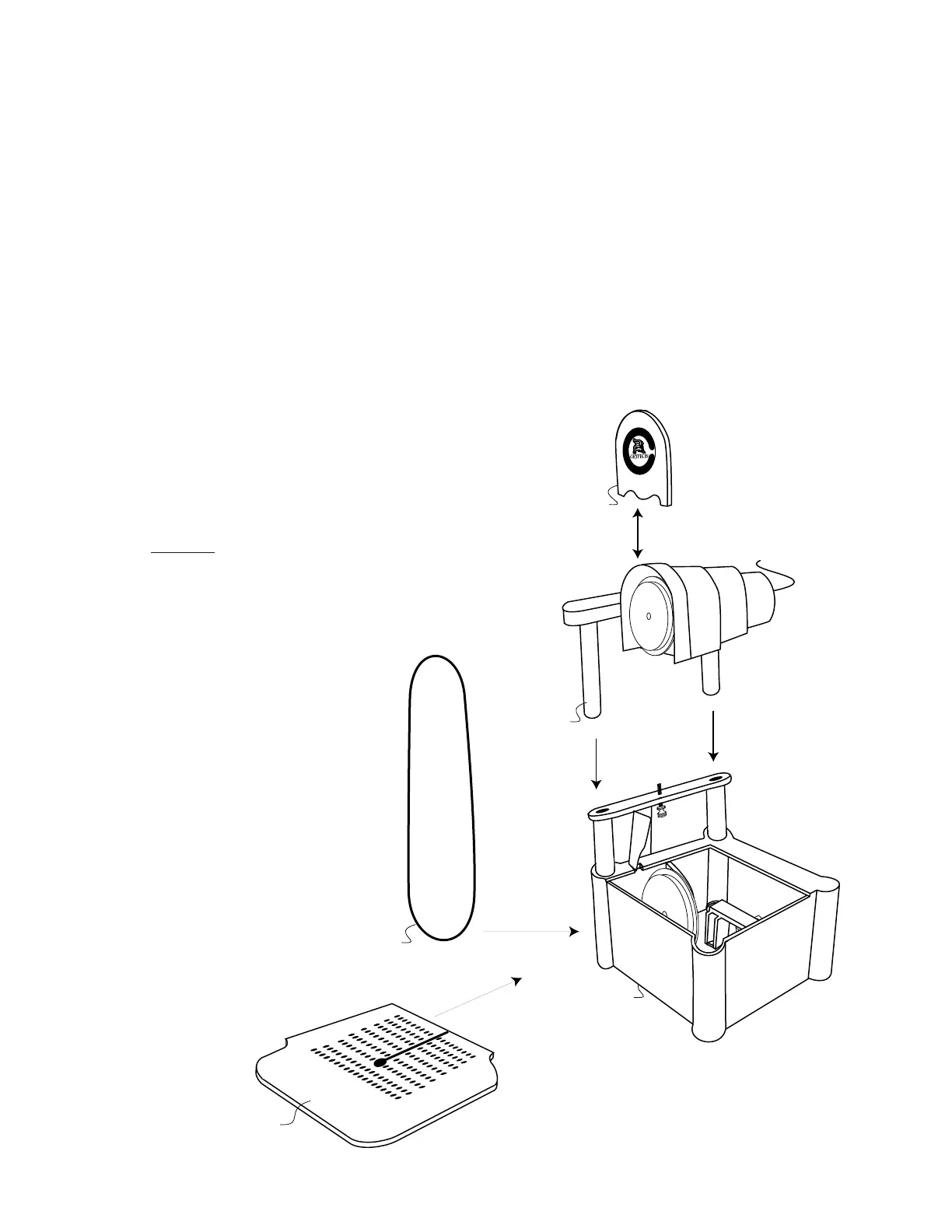

Refer to the drawing on this
page.
• Remove tape used in packing.
• Insert Slides on Top Assembly
into Posts on Bottom Assembly
as shown.
• Push Top Assembly down
as far as it will go (note
that the Adjustment Screw
controls how far down the Top
Assembly will go). Do not
turn the Adjustment Screw yet.
• Remover Cover by
sliding it straight
up.
