GSi 1100 Series Operator's Manual

3. Specifications
14 PNEG-1456 1 and 2 Fan Vision Series Portable Dryers
Figure 3C
1100 Series Dryer Specifications
1108T 1112 1114 1116 1118 1120 1122 1126
Total Holding Capacity (Bushels) 190 327 381 436 490 544 599 708
Grain Column Holding Capacity (Bushels) 160 282 329 376 423 470 517 611
Fan
28''
10-13 HP
36''
15 HP
40''
15 HP
40''
15 HP
42''
20 HP
42''
25 HP
42''
30 HP
42''
40 HP
Top Auger
8'' Dia.
1-1/2 HP
8'' Dia.
3 HP
8'' Dia.
5 HP
8'' Dia.
5 HP
8'' Dia.
5 HP
8'' Dia.
7-1/2 HP
8'' Dia.
7-1/2 HP
8'' Dia.
10 HP
Capacity (BHP) 2900 2900 3800 3800 3800 3800 3800 3800
Bottom Auger
8'' Dia.
1 HP
8'' Dia.
1-1/2 HP
8'' Dia.
3 HP
8'' Dia.
5 HP
8'' Dia.
5 HP
8'' Dia.
7-1/2 HP
8'' Dia.
7-1/2 HP
8'' Dia.
10 HP
Meter Roll Drive
SCR,
1/3 HP
SCR,
1/3 HP
SCR,
3/4 HP
SCR,
3/4 HP
SCR,
3/4 HP
SCR,
3/4 HP
S C R,
3/4 HP
SCR,
3/4 HP
Capacity - MAXIMUM Rate
1
(BHP)
1120 1680 1960 2240 2520 2800 3080 3640
Electrical Load (Fans, Top and Bottom Augers
2
)
1 Phase, 220 Volt 63 85 98 108 - - - -
3 Phase, 220 Volt 42 50 56 65 80 104 114 150
3 Phase, 440 Volt 21 25 28 33 40 52 57 75
3 Phase, 575 Volt 18 20 23 27 32 42 46 61
3 Phase, 380 Volt 22 33 36 44 49 68 75 88
1. Actual discharge rate is controlled by meter roll speed adjustment, at 5% to 100% of maximum rate.
2. Excludes auxiliary load and unload conveyor equipment.

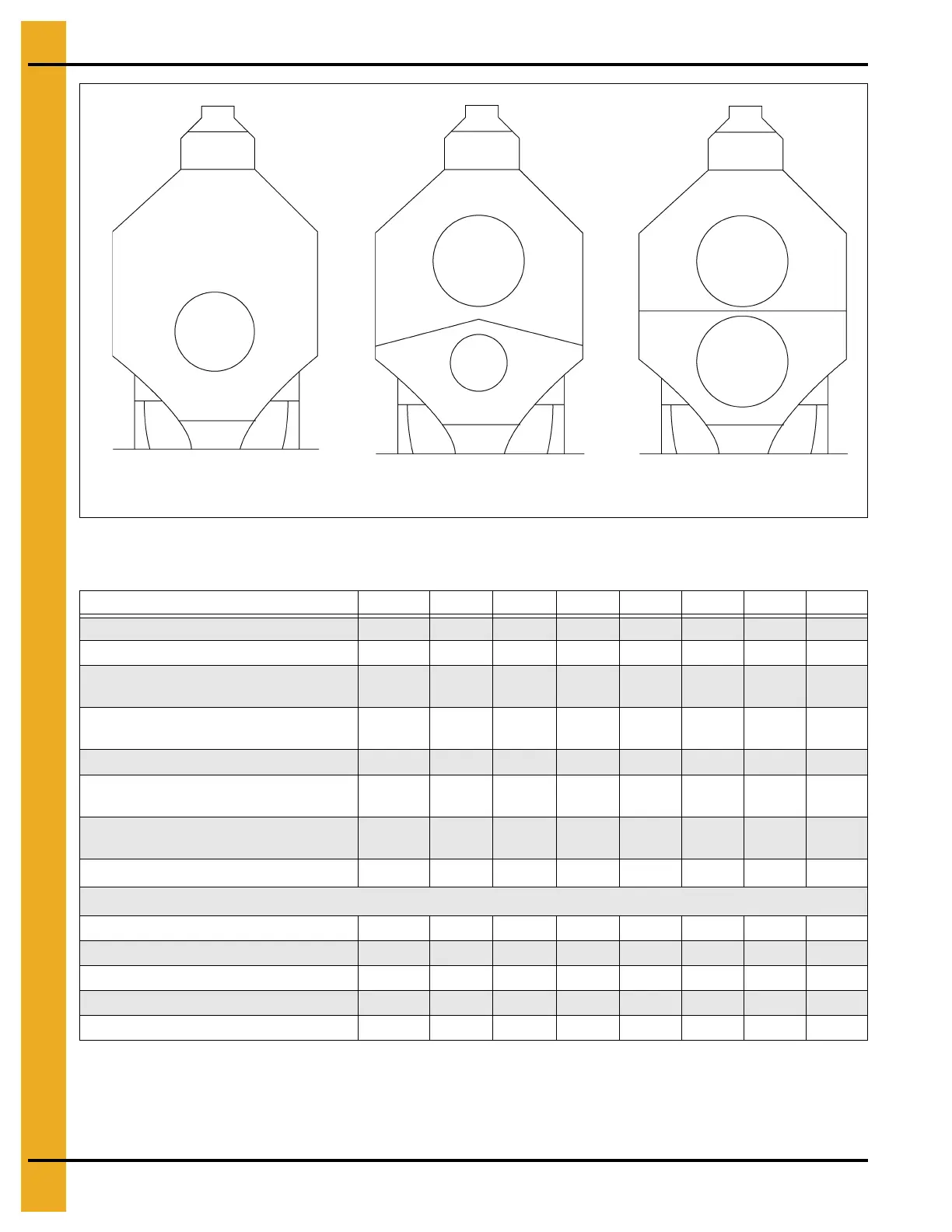

1100 Series profile
1200 Series profile
1200S Series profile

GSi 1100 Series Specifications

General

Brand	GSi
Model	1100 Series
Category	Dryer
Language	English
