GSi 2000 Series Installation And Operating Instructions

24
Series 2000 Vane Axial Heater
FACTORY CONFIGURATION

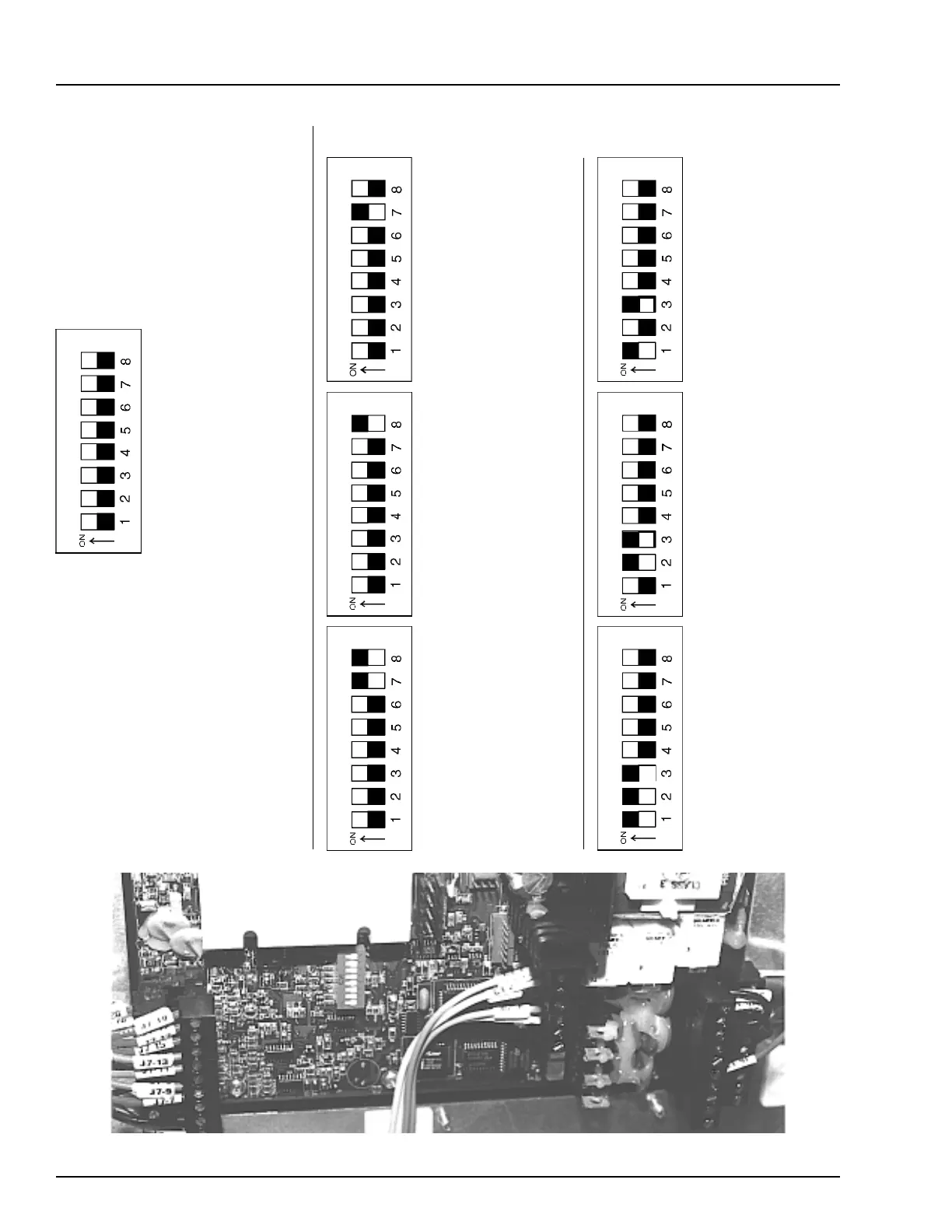

Configuration Dip
Switches (Normally Done
At GSI)
Stand alone heater
with no slaves, all
dip switches in the
off state.
These switches are used to config-
ure the heater control for various
types of heaters.
Multiple heaters connected together through the serial link.
Master with one
slave-dip switch 7
on/all others off.
Slave #1-dip switch
one and three on/all
others off.
Master with two
slaves-dip switch 8
on/all others off.
Slave #2-dip switch
two and three on/all
others off.
Master with 3
slaves-dip switch 7
& 8 on/all others
off.
Slave #3-dip switch
one, two and three
on/all others off.
The backside of the control board, showing the dip switch placement.
