3. Installation
12 PNEG-634 2000 Top Dry Fan/Heater
Grain Temperature Sensor Installation
1. Remove the two (2) wires attached to the grain temperature sensor connected to terminal #22
and terminal #23 in the fan control box.
2. Mount the grain temperature sensor bracket on an outside leveling band post. (See Figure 3E
on Page 13.)
3. Mount the brackets with bin bolts so that the sensor is 17-1/2" above the floor sheet rib.
4. Wire tie the cord so that it feeds up the leveling band post and across the top leveling band.
5. Route the cord through the space between the roof and the top sidewall sheet.
6. Route the cord back into the fan control box.
7. Install the two (2) wires from the cord into terminal #22 and terminal #23. (See Figure 3F on Page 14.)

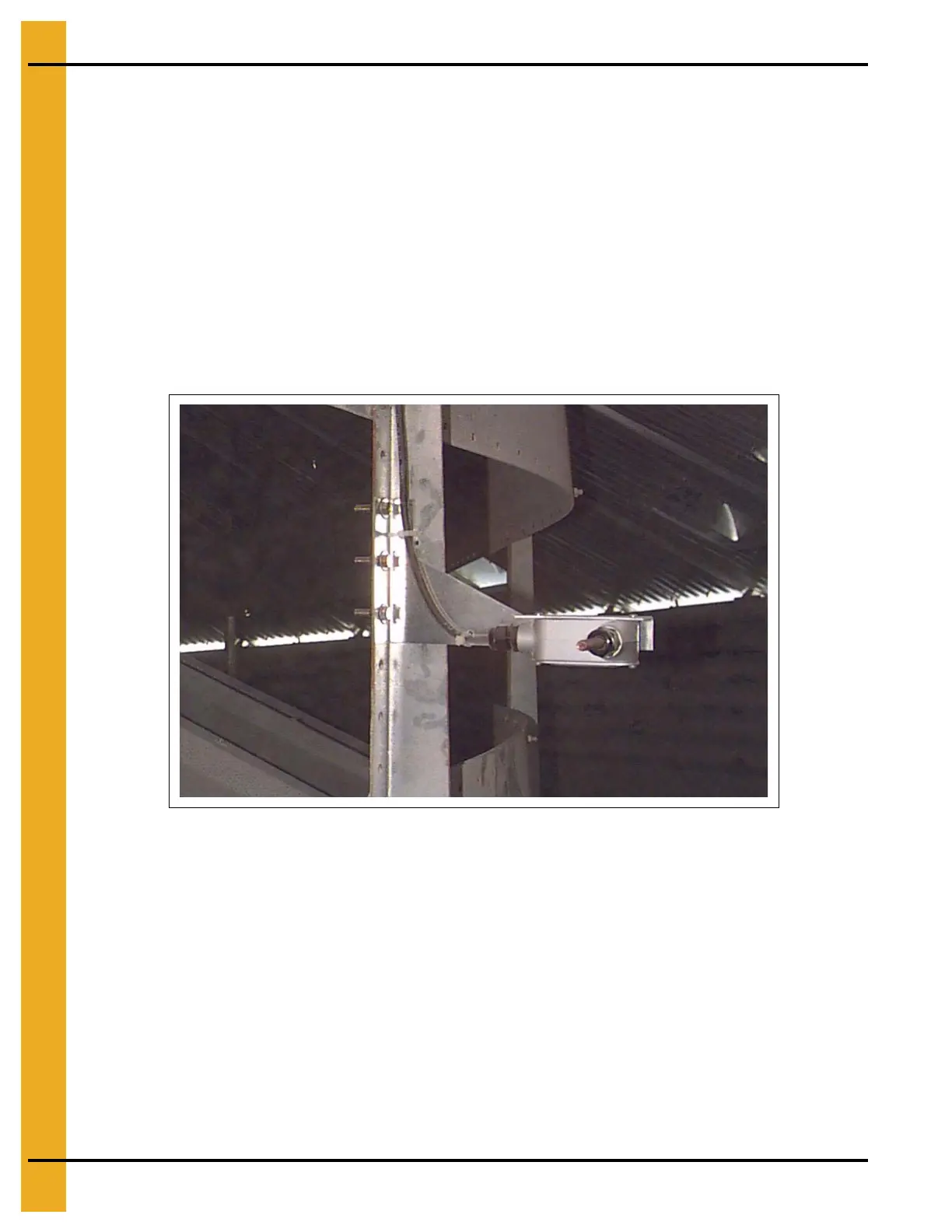

Figure 3D Grain Temperature Sensor Bracket Mounted on Leveling Band Post
