3. Installation
14 PNEG-634 2000 Top Dry Fan/Heater
Master Heater Control Box

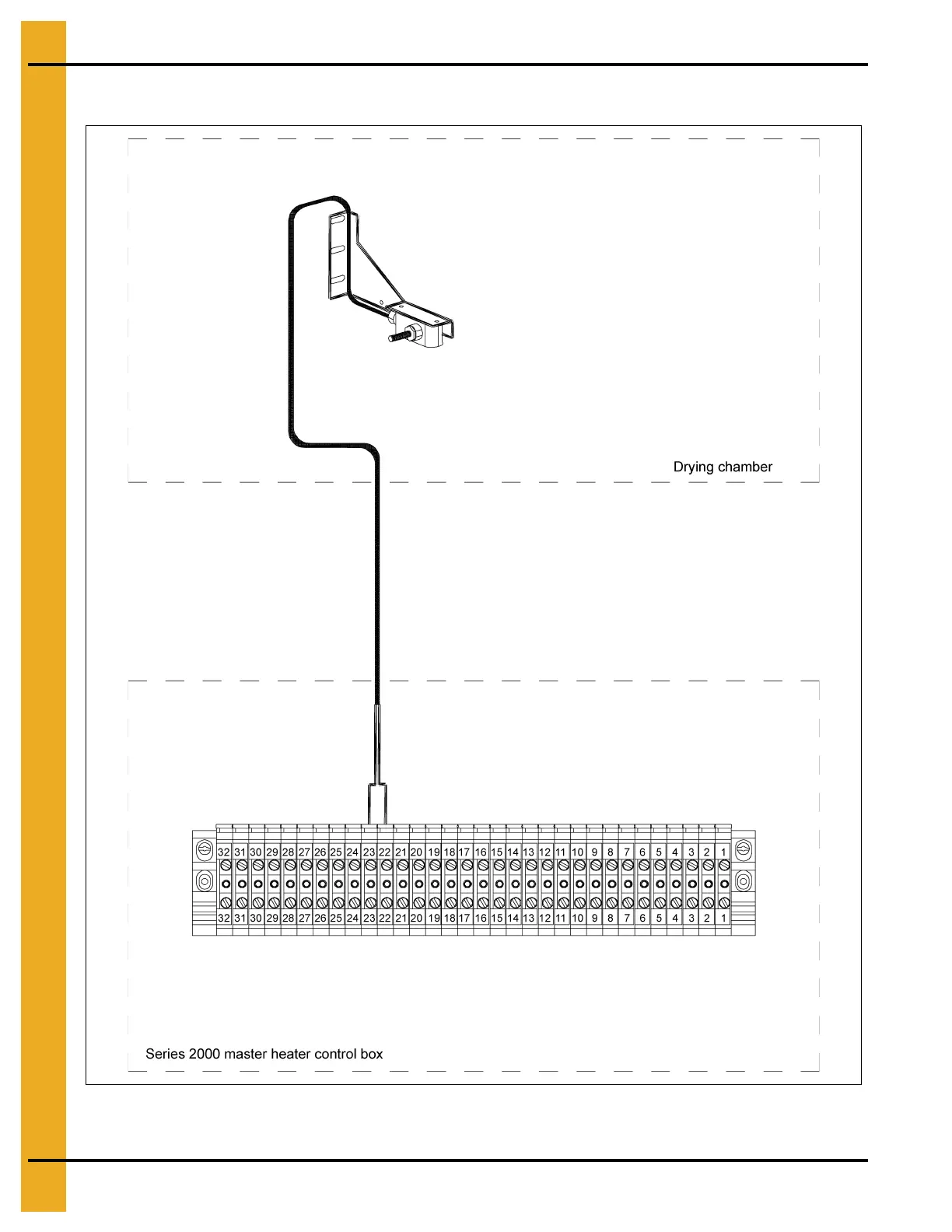

Figure 3F Illustration of the connection between the master heater control box and the drying chamber.
