Model:
MPPT30-1
1700W Solar Battery Charger
Maximum Power Point Tracker
Operating Instructions
Please read these instructions before use
Unit 2, 1 St James Place, Seven Hills ,NSW, 2147, Australia
MPPT30-1 Specications
Efciency typical 97%
Input voltage 16V to 95V
Output voltage
Float 13.5V / 27V / 54V
Absorption – Vented LA batteries 14.5V / 29V / 58V
– Sealed LA batteries 14.2V / 28.4V / 56.8V
Output power 1700W / 30A MAX
Quiescent current 0.05A
Thermal protection Multilevel Type
Dimensions (mm) 185 X 145 X 67mm
Indications LED display – OUTPUT STATUS

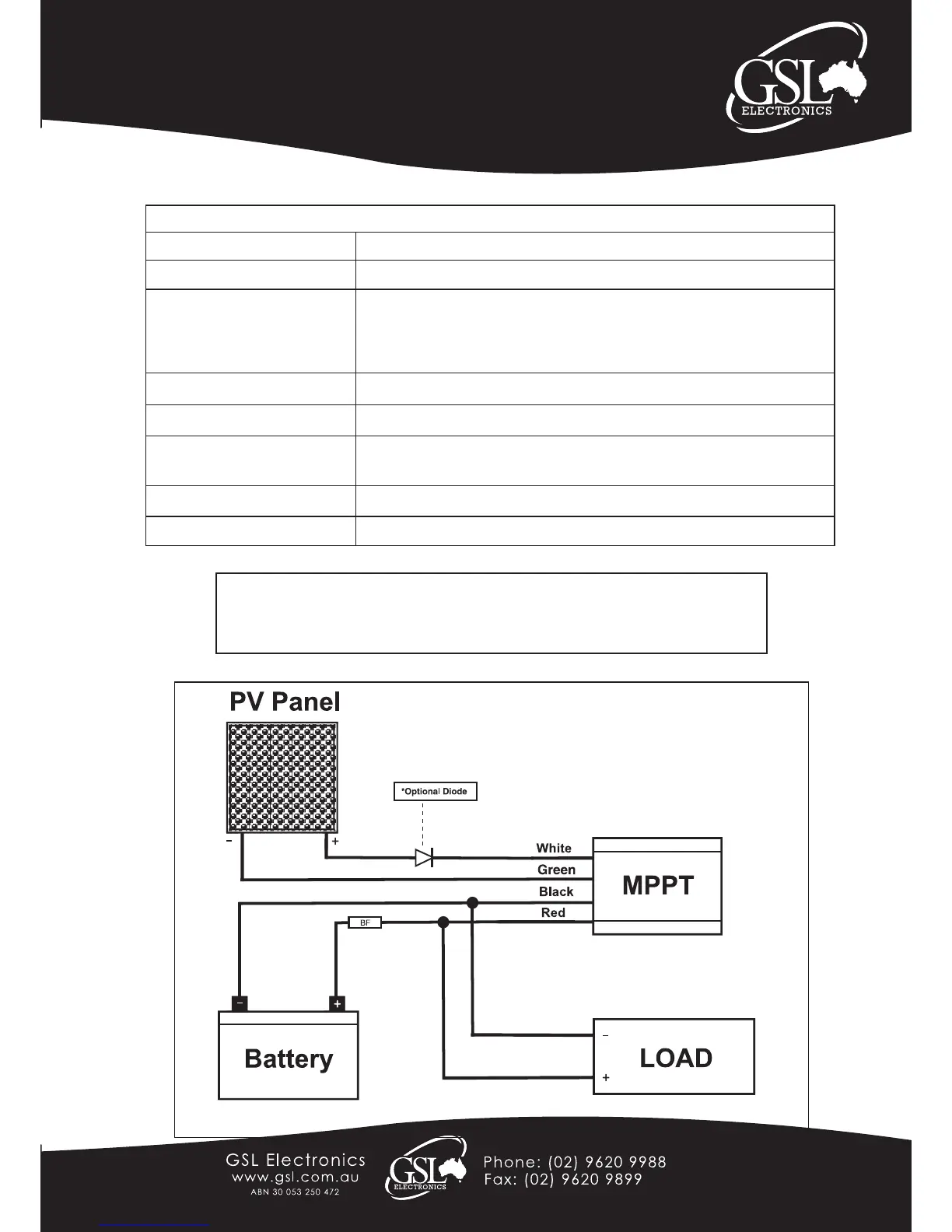

Basic Wiring Instructions:
Note: First start up may take up to one minute.
MPPT30-1-R5
Note: This unit can be used to directly power (without a battery)
a 12VDC motor or pump of up to 150W.
