MPPT60-1
1700W Solar Battery Charger
Maximum Power Point Tracker
Operating Instructions
Please read these instructions before use
MPPT60-1 Specifications
Efficiency typical 97%
Input voltage 16V to 84V
Output voltage
Lead Acid Batteries
Float - 13.5V / 27V
Absorption – Vented 14.5V / 29V
– Sealed 14.2V / 28.4V
Output Voltage
Lithium Iron Phosphate
Batteries
Maintenance - 14.1V / 28.2V
Saturation - 14.8V / 29.6V
Output power 1700W / 60A MAX
Quiescent current 0.05A
Thermal protection Multilevel Type
Dimensions (mm) 255 X 145 X 67mm
Indications LED display – OUTPUT STATUS

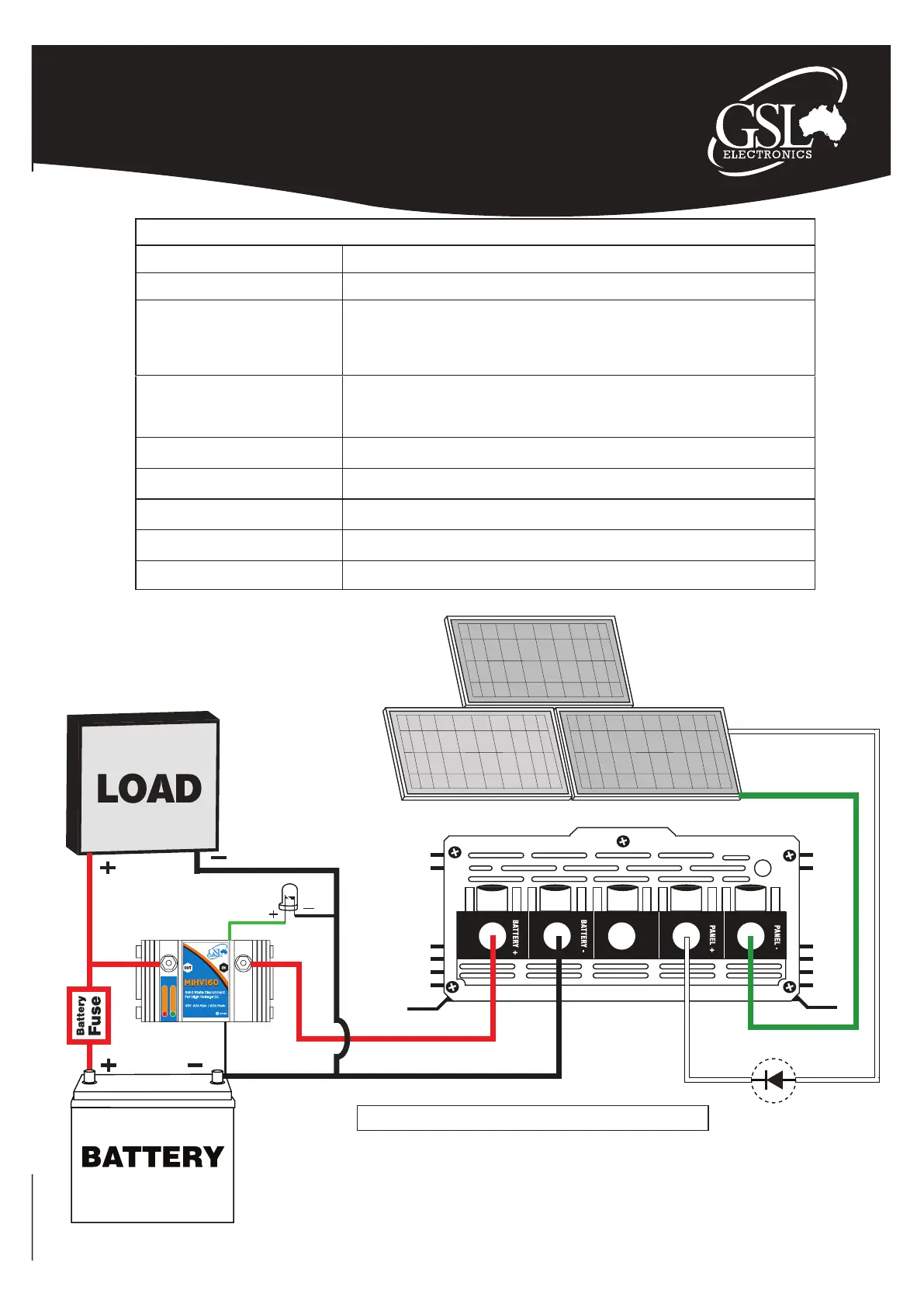

Basic Wiring Instructions:
Dis c on ne c te d
Con nec ted
Panel +
Panel -
Battery +
Battery -
* Optional Diode
Note: First start up may take up to one minute.
MIHV Remote LED
MIHV
MPPT
