49
－CDI and Igniter trigger [Black and White] －Bad connection between lines
－CDI and Magneto Stator [Black and Red] －CDI is not good.
－CDI and Trigger [Green/White，Blue/Yellow] ．Sub Ignitions line
－
CDI and Grounding line [Green] －Spark plug is not good
．Ignition Switch is not good
－Trigger is not good
．CDI is not good
－Spark coil is not good
．Trigger is not good Ignition
－CDI is not good.
－Trigger is not good
－Magneto Stator is not good

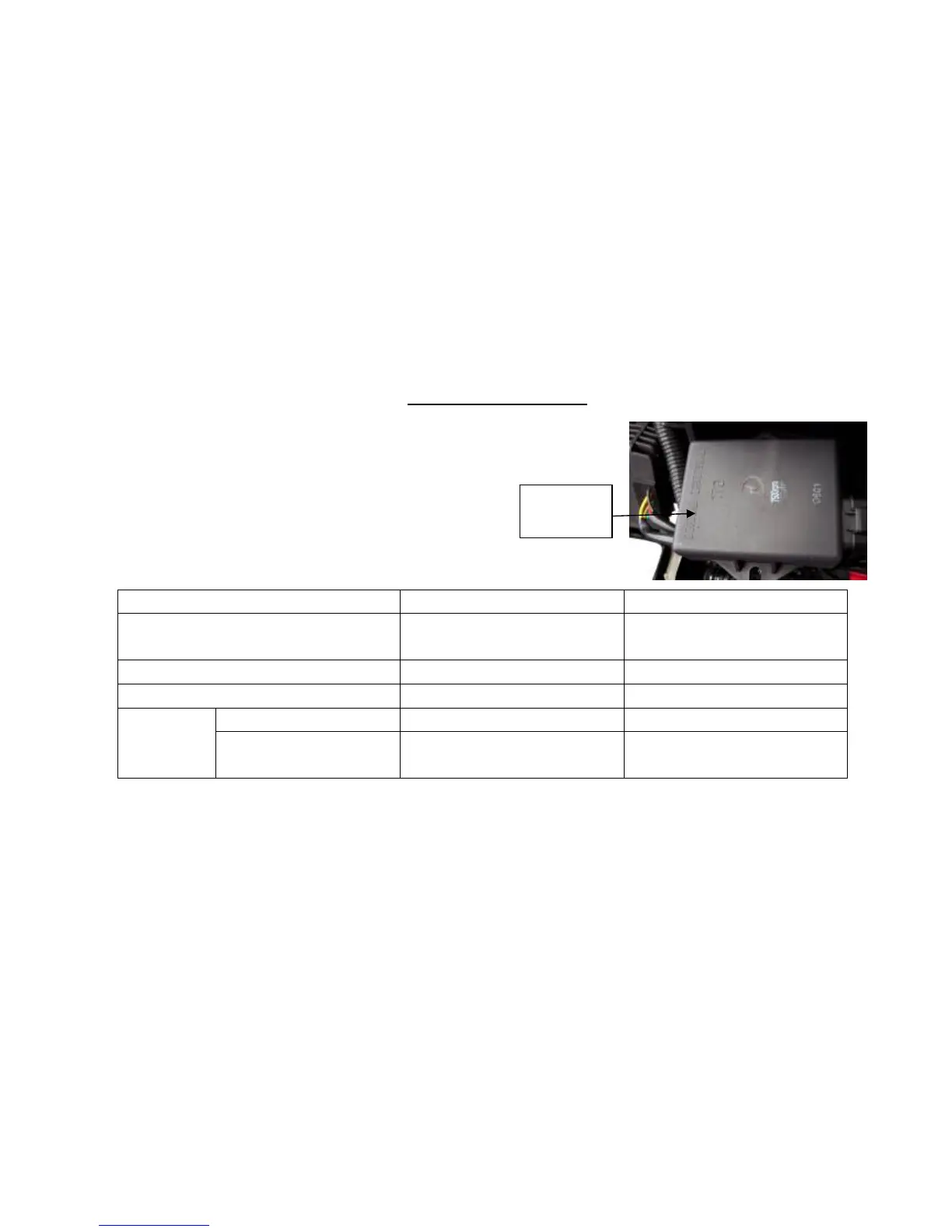

Main features of Igniter
Dismantles the accumulator cell fixed belt;
Dismantles the electric appliance lid.
ITEM Checking Position Standard Value
Igniter switch Black/White-Green
Electric current bleed when
switch is off.
Magnetor coil Black/Red-Green
50—350Ω（20℃）
Trigger Green/White-Blue/Yellow
50—170Ω（20℃）
Igniter coil
Main coil Black/Yellow-Green
3.6—4.6kΩ
Sub-coil with cap of spark
plug
Black/Yellow-cap of Spark plug
7.3—11kΩ
If no barriers after inspecting as above, you need a application detector to check
Igniter.
Igniter
