Fury Owner’s Manual Supplement
Technical Information
Rear Shock
192927 Rev 0 (11/23)
Rear Shock
Setting Sag
1. Follow the shock manufacturer’s instruc-
tions for setting the shock according to
rider weight.
2. Sit on the bike in a normal riding position
with your hands on the handlebar and
feet on the pedals so that your weight
compresses the rear shock.
4. Measure the Sag.
5. Dismount and adjust the air pressure or
coil spring preload of the shock. Repeat
steps 2 through 4 to achieve the correct
Sag measurement.
Removal/Installation Points:
• Always clean the mounting hardware
and frame interfaces with a clean dry
lint-free shop towel prior to assembly.
• Clean and re-grease the frame pockets
where the leverage chips are inserted.
• Lightly grease the spacers.
• Always re-apply threadlocker as
indicated, and lightly grease under the
bolt heads
• Lightly grease the trunnion spacers.
• Always re-apply threadlocker as
indicated, and lightly grease under the
bolt heads.
NOTICE
Install shock with adjusters/reservoirs
positioned to the front of the bike.
• Install the lower shock bolt into the
non-drive side, as shown.
• Tighten bolts to the specified torque.

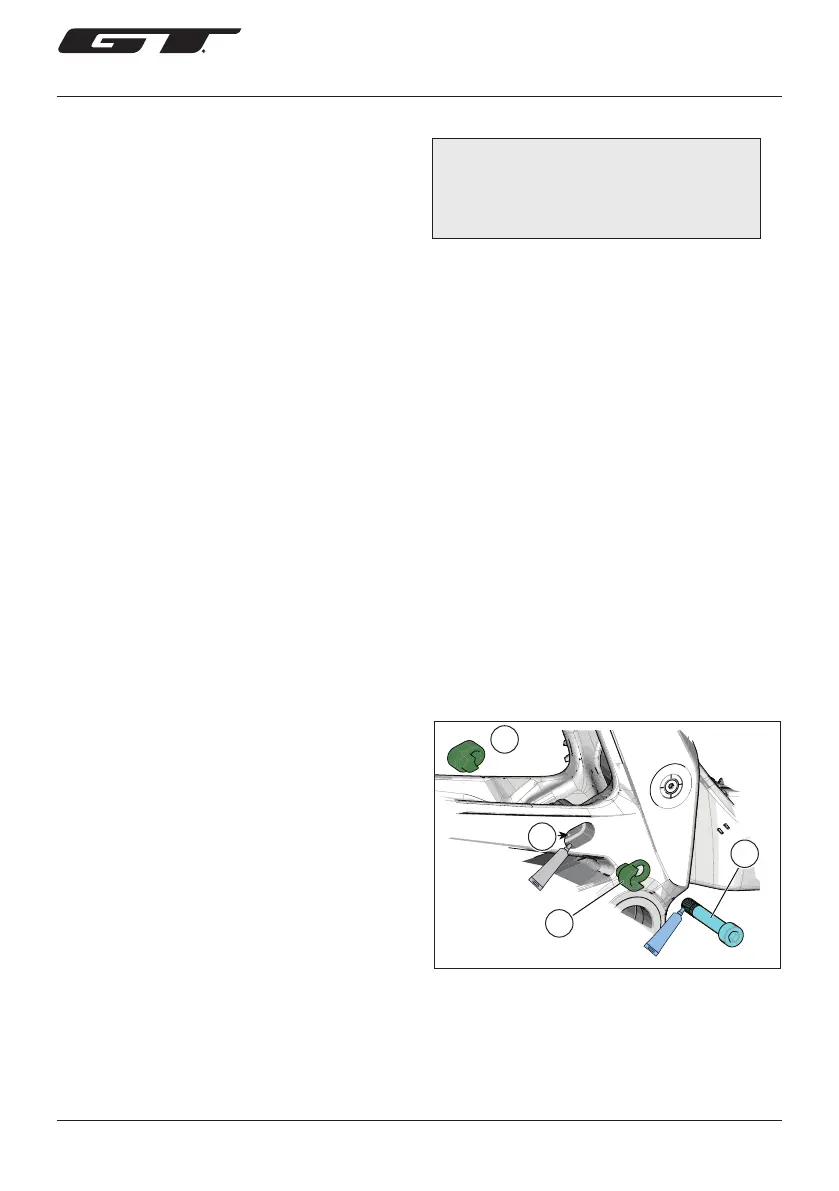

Changing Leverage Chips
Select between a Progressive or Linear rear
shock response by changing the installed
position of the lower shock leverage chips.
See next figure, lower.
PROGRESSIVE - better big hit performance
LINEAR - more support in cornering
The leverage chip positioning is a matter of
rider preference and can be selected
independently of the current seatstay or
dropout chips set-up.
a
7
NGLI-2
Loc 242
5
6
