8

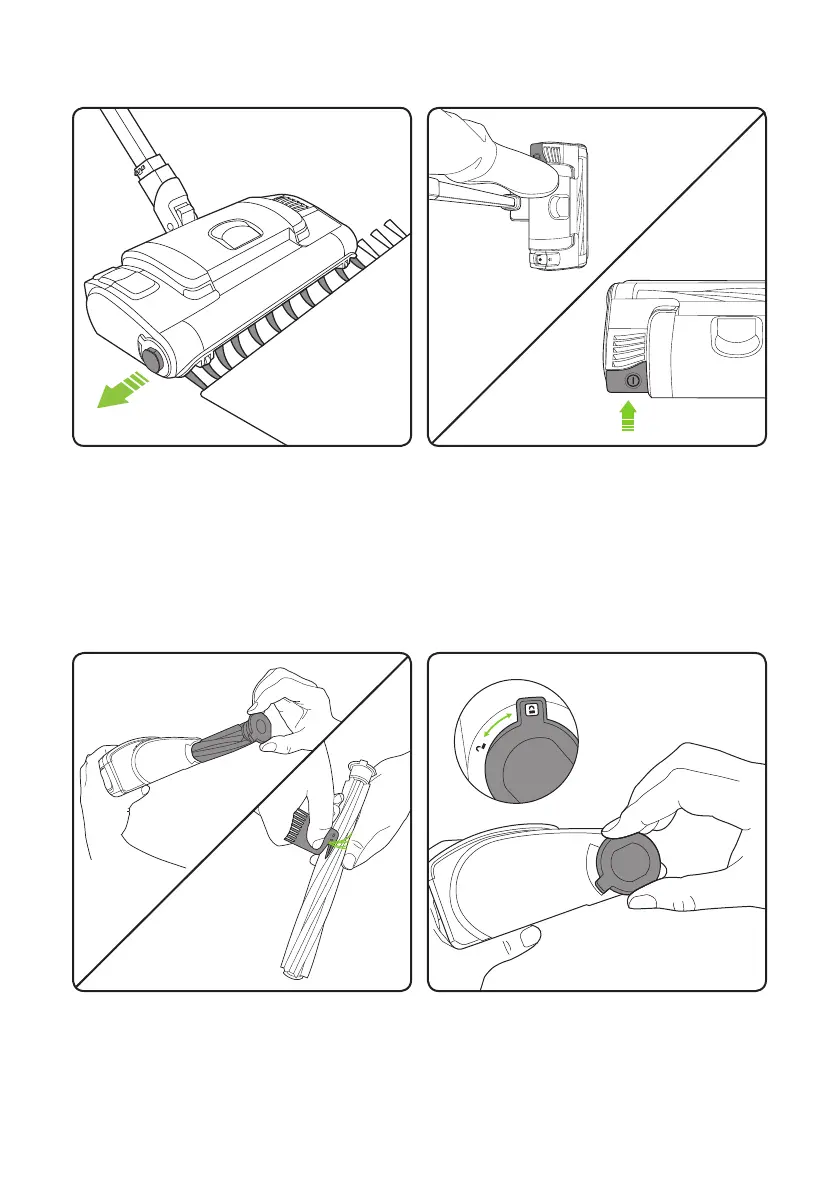

In the case of a jam, the brush-bar will
automatically eject itself to allow you to
remove any obstructions and prevent
damages.
Once the brush-bar ejects, turn the unit off.
Assess the blockage. If necessary, remove
the brush-bar, running the blade of the hair
removal tool between the brushes to cut the
strands (see p.12-13 for more information).
Aer clearing the jam, slide the brush-bar back
into place and turn the latch to the ‘locked’
position. Ensure the brush-bar button is
pushed back in. The vacuum is now ready to
use again.
Brush-bar eject system
