Guardian G1902 - Safety Station with Eyewash, Stainless Steel Bowl

Safety Stations with Eyewash
this space for architect/engineer approval
Due to continuing product improvement, the information contained in this document
is subject to change without notice. All dimensions are ± 1/4" (6mm).
Sign Included
F

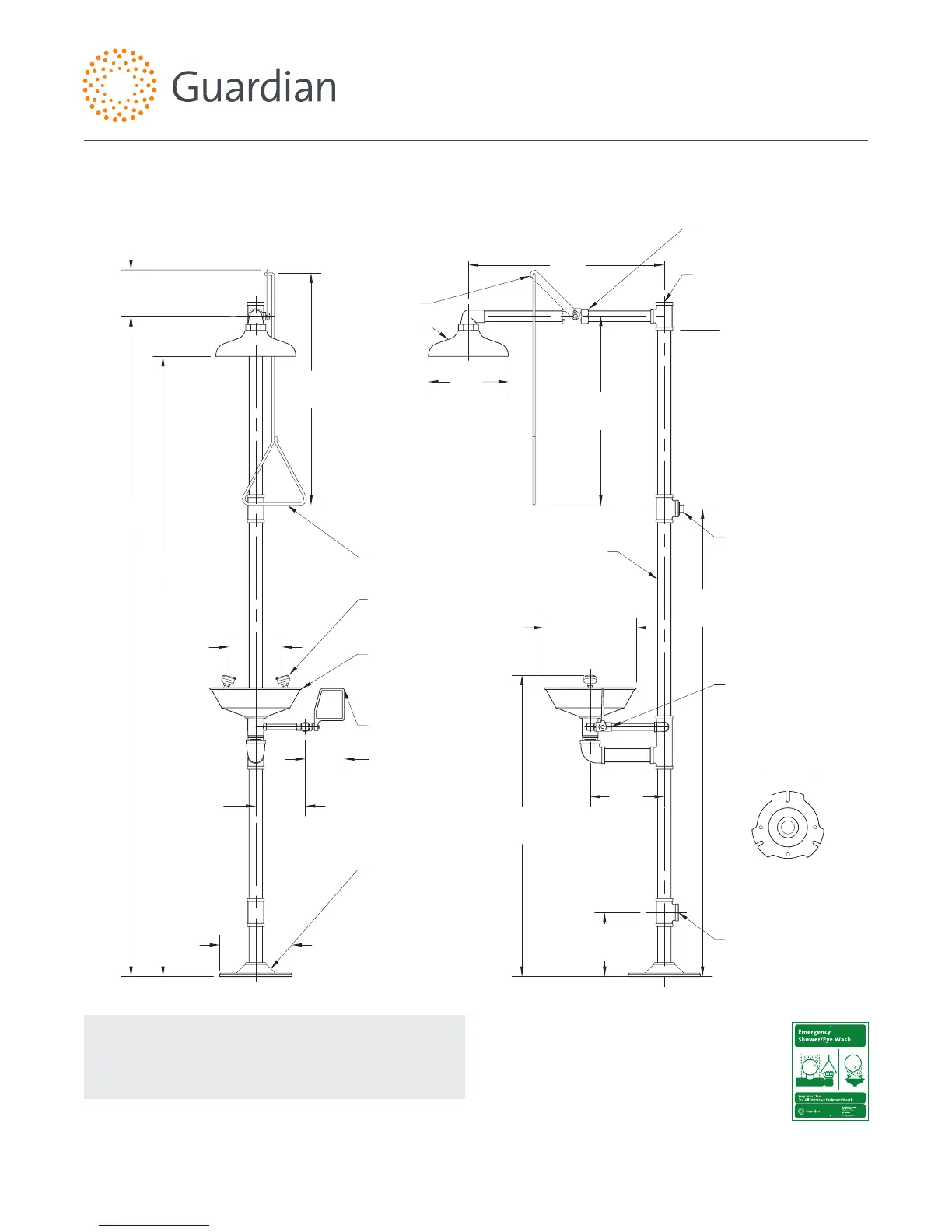

G1902 Safety Station with Eyewash, Stainless Steel Bowl
(152mm)
(165mm)
(127mm)
OPEN BALL VALVE
(1645mm)
PLATED BRASS STAY-
1/2" IPS CHROME
(235mm)
64 3/4"
BALL VALVE
BRASS STAY-OPEN
1" IPS CHROME PLATED
(610mm)
23 1/2"
(597mm)
24"
6 1/2"
5"
6"
Ø9"
(229mm)
9 1/4"
9 1/4"
(235mm)
NOTES:
1. EACH GS-PLUS SPRAY HEAD
HAS A "FLIP-TOP" DUST
COVER, INTERNAL FLOW
CONTROL AND FILTER TO
REMOVE IMPURITIES FROM
THE WATER FLOW.
2. REVERSING THE TWO LOWEST
PIPE NIPPLES RAISES THE
DRAIN OUTLET TO 19-5/8" A.F.F.
DETAIL "A"
UNIVERSAL FLOOR FLANGE
ON 7-5/8" BOLT CIRCLE
Ø7/16" MOUNTING SLOTS
POWDER COATED
CAST ALUMINUM
FLOOR FLANGE
(SEE DETAIL "A")
STAINLESS STEEL
PULL ROD
29"
(737mm)
89"
(2261mm)
1-1/4" NPT
FEMALE OUTLET
Ø10"
(254mm)
ABS PLASTIC
SHOWER HEAD
AND ELBOW
(2) GS-PLUS
SPRAY HEADS
POWDER-COATED CAST
ALUMINUM FLAG HANDLE
GALVANIZED STEEL
PIPE AND FITTINGS
1-1/4" NPT
FEMALE INLET
1-1/4" NPT
FEMALE INLET
(PLUGGED)
STAINLESS STEEL
ACTUATING ARM
37 1/2"
(953mm)
84"
(2134mm)
STAINLESS
STEEL BOWL
5 3/4"
(146mm)
Ø11 1/8"
(283mm)
