d-1

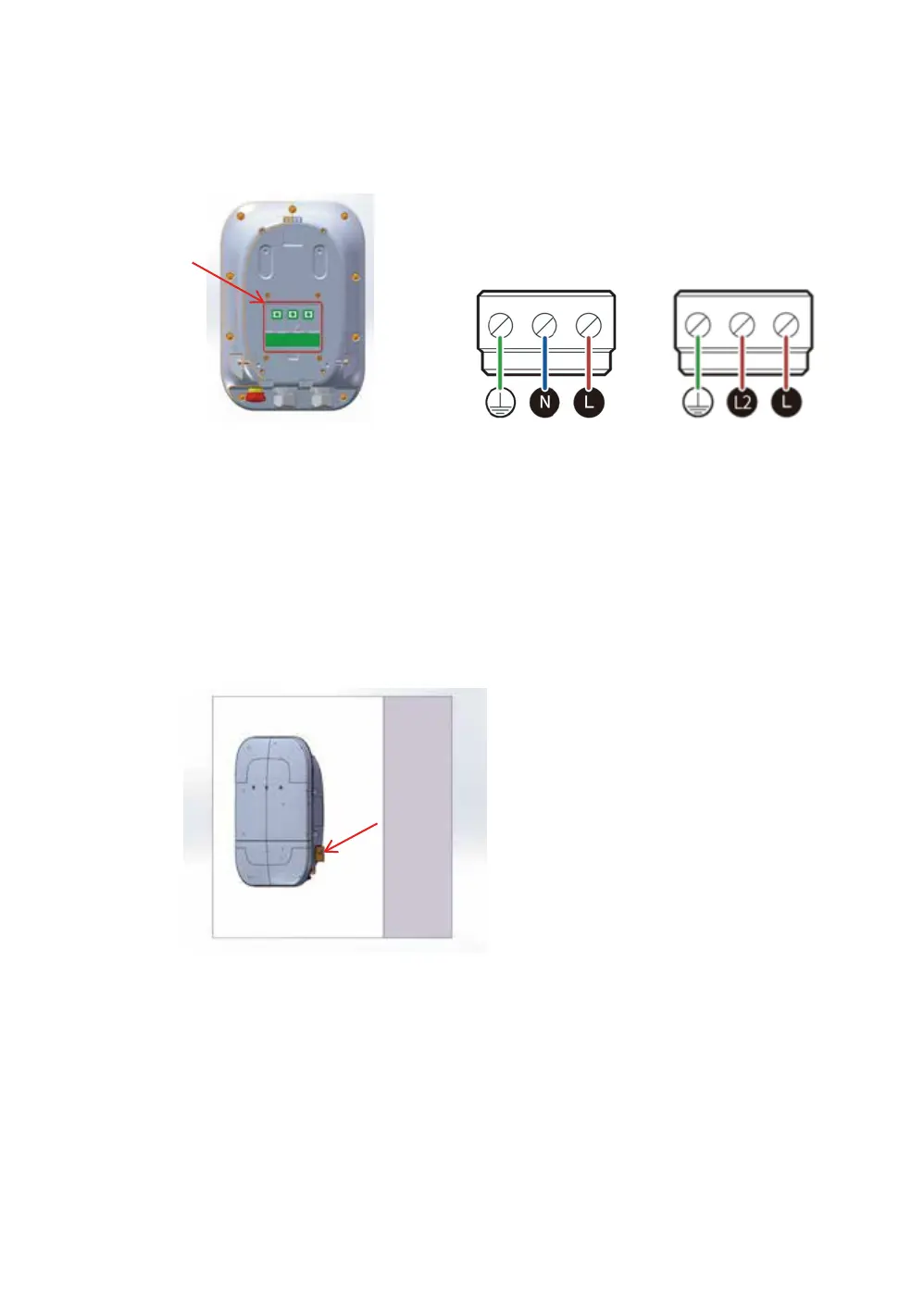

2.Installation steps:

d.Connect the power line in sequence at the wiring on the back of the

charging pile.

e. Hang the charging pile installed with the incoming line on the hang-

ing plate, lock the charging pile and the hanging plate with two M4 * 6

cross recessed pan head screws on both sides of the charging pile, and

the installation is completed.

Wire Junc�on

Fixa�on of pile and

hanging plate

d-2

Single-phase

wiring diagram

Dual-phase

wiring diagram
