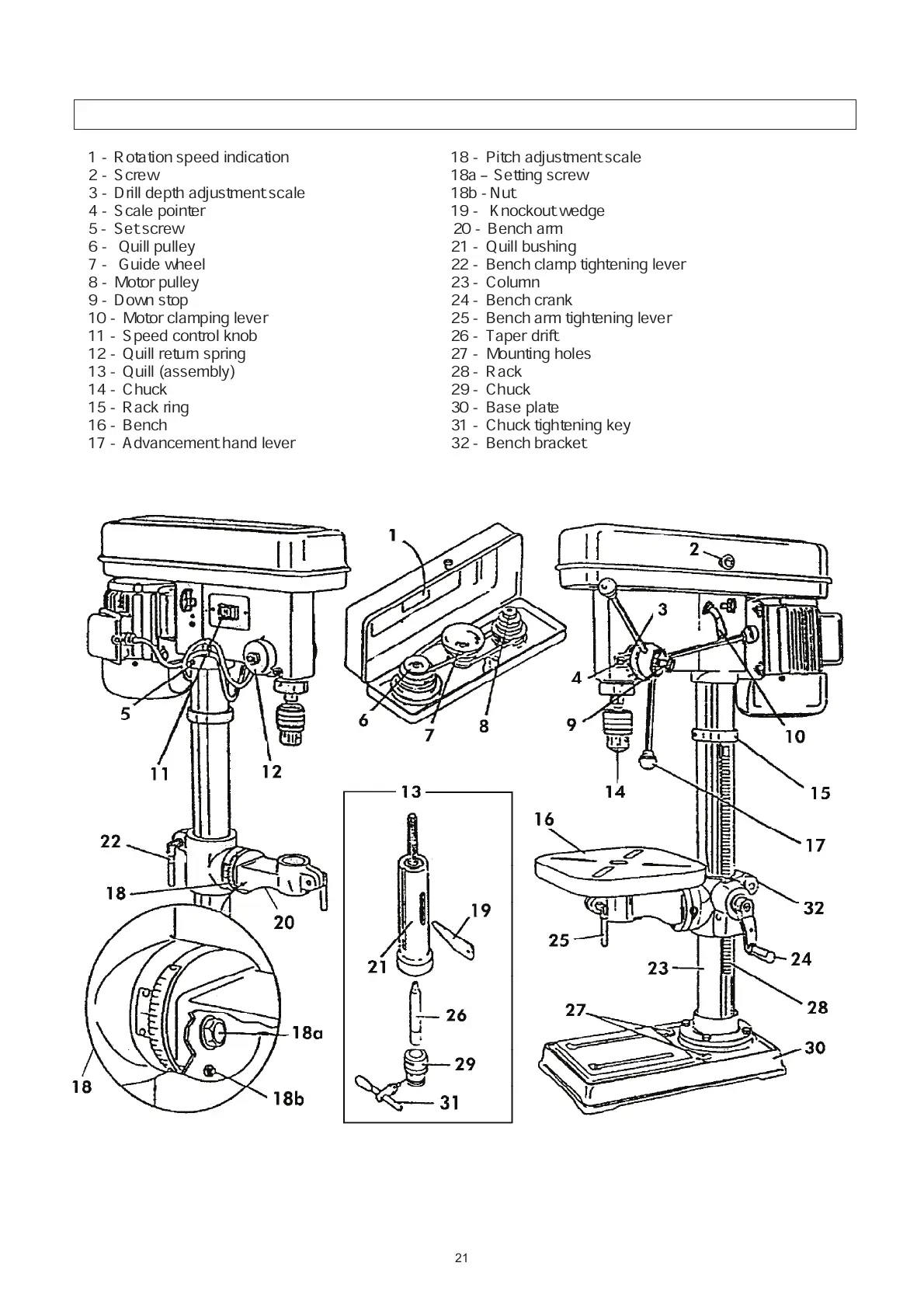

6. Meet Your Drill
1 - Rotation speed indication 18 - Pitch adjustment scale
2 - Screw 18a – Setting screw
3 - Drill depth adjustment scale 18b - Nut
4 - Scale pointer 19 - Knockout wedge
5 - Set screw 20 - Bench arm
6 - Quill pulley 21 - Quill bushing
7 - Guide wheel 22 - Bench clamp tightening lever
8 - Motor pulley 23 - Column
9 - Down stop 24 - Bench crank
10 - Motor clamping lever 25 - Bench arm tightening lever
11 - Speed control knob 26 - Taper drift
12 - Quill return spring 27 - Mounting holes
13 - Quill (assembly) 28 - Rack
14 - Chuck 29 - Chuck
15 - Rack ring 30 - Base plate
16 - Bench 31 - Chuck tightening key
17 - Advancement hand lever 32 - Bench bracket
