Guest ChargePro4/4 User Manual

TYPICAL WIRING
21

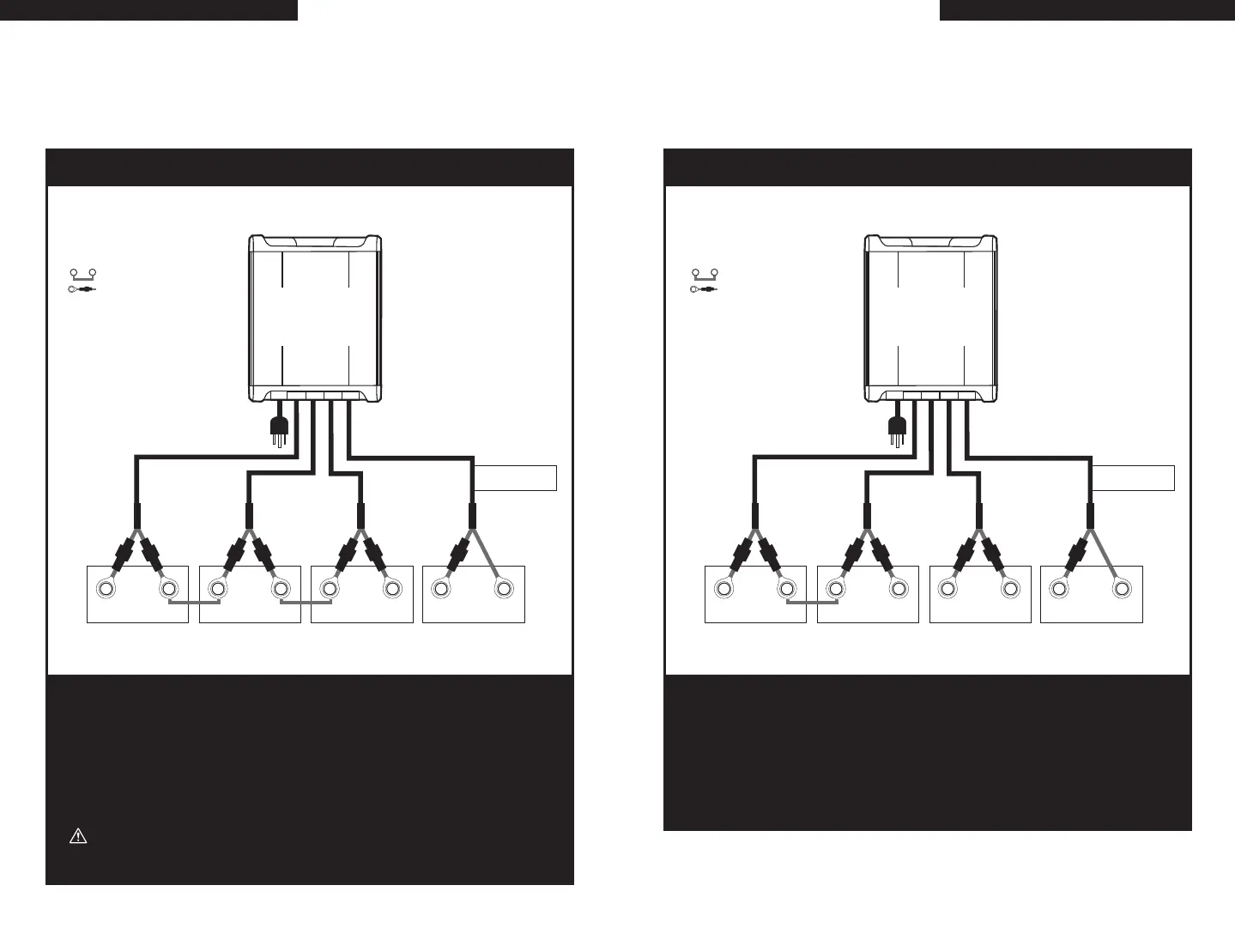

36 VDC trolling motor battery configuration with (3) 12 VDC batteries connected
with (2) series jumpers plus dedicated 12
VDC engine start battery
Fig. 8 ChargePro
™
10/10/10/10 Quad Bank Charger for 4 12V Batteries
12 VDC Engine
Crank Battery
red black
+
_
red black red black
++
__
Cable 2
bat 2bat 3bat 4
Cable 3
Cable 4
red black
+
_
bat 1
Cable 1
Three 12 VDC Batteries Connected with a (2)
Series Jumper for a 36 VDC Trolling Motor
For Engine Battery
Use Cable 1
Indicates Jumper Series
Note:
Indicates Fuse
Installation
Important: The pair of red and black wires in 1 cable jacket MUST GO TO THE SAME 12 VDC battery.
When connecting each jacketed battery charger cable, make sure it is connected
to only one 12 VDC battery and observe the polarity and color of all connections:
Red Wire = + (Positive) Battery connection
Black Wire =
-
(Negative) Battery connection
The black wire can never be connected to a terminal with red wires. Only black.
DANGER: RISK OF ELECTRIC SHOCK.
Do not touch uninsulated portion of output connector or uninsulated battery terminal
if 3 or more batteries are connected in series.
ChargePro
™
Quad Bank
Charger
22
TYPICAL WIRING
Dedicated 24 VDC trolling/house bank and 2 engine crank batteries typical configuration
Fig. 9 ChargePro
™
10/10/10/10 Quad Bank Charger for 4 12V Batteries
12 VDC Engine
Crank Battery
red black
+
_
red black red black
++
__
Cable 2
bat 2bat 3bat 4
Cable 3
Cable 4
red black
+
_
bat 1
Cable 1
12 VDC Engine
Crank Battery
For Engine Battery
Use Cable 1
Indicates Jumper Series
Note:
Indicates Fuse
Installation
Important: The pair of red and black wires in 1 cable jacket MUST GO TO THE SAME 12 VDC battery.
When connecting each jacketed battery charger cable, make sure it is connected
to only one 12 VDC battery and observe the polarity and color of all connections:
Red Wire = + (Positive) Battery connection
Black Wire =
-
(Negative) Battery connection
The black wire can never be connected to a terminal with red wires. Only black.
Two 12 VDC Batteries Connected with a
Series Jumper for a 24 VDC Trolling Motor
ChargePro
™
Quad Bank
Charger
