Guest ChargePro5 User Manual

Installation
12 VDC Trolling Motor or House Battery Configuration with a Dedicated 12 VDC
Engine Start Battery

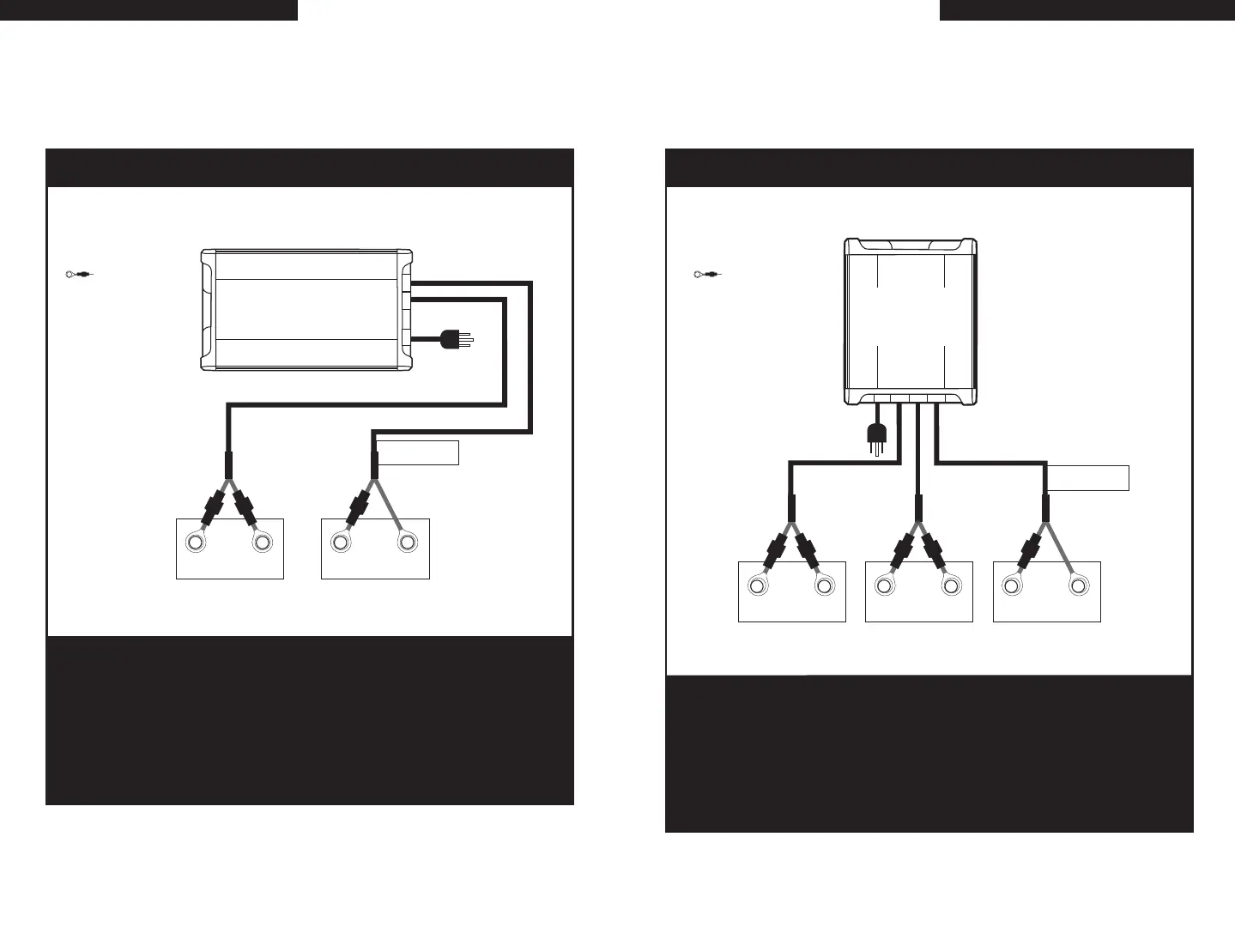

Fig. 4 ChargePro
™
4/4, 5/5 and 10/10 Dual Bank Charger for 2 12V Batteries
Top View
of Battery
red black red black
++
__
Cable 1
Bat 1Bat 2
Cable 2
Important: The pair of red and black wires in 1 cable jacket MUST GO TO THE SAME 12 VDC battery.
12 VDC Engine
Crank Battery
12 VDC Trolling
Motor or House Battery
When connecting each jacketed battery charger cable, make sure it is connected
to only one 12 VDC battery and observe the polarity and color of all connections:
Red Wire = + (Positive) Battery connection
Black Wire =
-
(Negative) Battery connection
The black wire can never be connected to a terminal with red wires. Only black.
ChargePro
™
Dual Bank Charger
TYPICAL WIRING
17
For Engine Battery
Use Cable 1
Note:
Indicates Fuse
18
TYPICAL WIRING
Installation
12 VDC Trolling
Motor or House Battery
Dedicated 12 VDC Trolling Motor or House Battery and 2 Engine Crank Batteries
Typical Configuration
Fig. 5 ChargePro
™
5/5/5 and 10/10/10 Triple Bank Charger for 3 12V Batteries
Top View
of Battery
red black
+
_
red black red black
++
__
Cable 1
Bat 1Bat 2Bat 3
Cable 2
Cable
3
Important: The pair of red and black wires in 1 cable jacket MUST GO TO THE SAME 12 VDC battery.
When connecting each jacketed battery charger cable, make sure it is connected
to only one 12 VDC battery and observe the polarity and color of all connections:
Red Wire = + (Positive) Battery connection
Black Wire =
-
(Negative) Battery connection
The black wire can never be connected to a terminal with red wires. Only black.
12 VDC Engine
Crank Battery
12 VDC Engine
Crank Battery
For Engine Battery
Use Cable 1
Note:
Indicates Fuse
ChargePro
™
Triple Bank
Charger
