Customer Helpline 0333 3201989
13
Maintenance

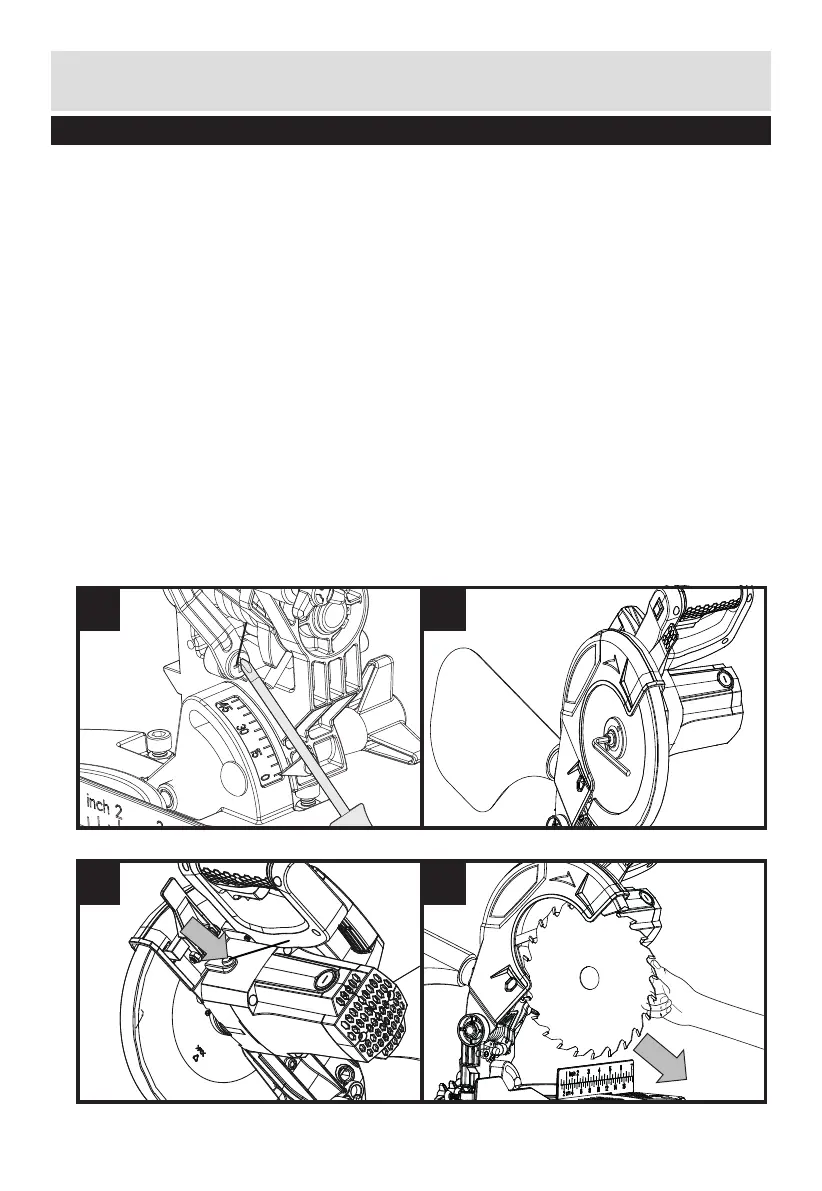

Similarly, check that the angle of the blade to the face of the rotary table is 90
o
. If necessary,
adjust the tilt angle of the saw head at the 90
o
position: loosen the bevel lock (19) and
adjust the 0° bevel adjustment screw (c) to bring the saw blade into alignment with the
square. Loosen the head screw (c) holding the pointer of the bevel scale (20) and adjust the
position of the pointer so that it accurately indicates zero on the scale. Retighten the screw.
Retighten the bevel lock (20) and the 0° bevel adjustment screw . (SEE FIG K1, K2)
2. CHANGING THE SAW BLADE (SEE FIG L1-L5)
Disconnect the saw from the power supply.
Remove the screw with a screwdriver.
Press the blade spindle lock (21) and rotate the blade until it is locked, then loosen and
remove the blade securing bolt, the outer flange with the socket wrench in clockwise
direction.
NOTE: Blade securing bolt has a left hand thread.
b
21
A B1
B1 B2
C D
E1 E2
F G1
G2 H1
H2 I1
I2
J1 J2
K1 K2
L1 L2
L3
L4
