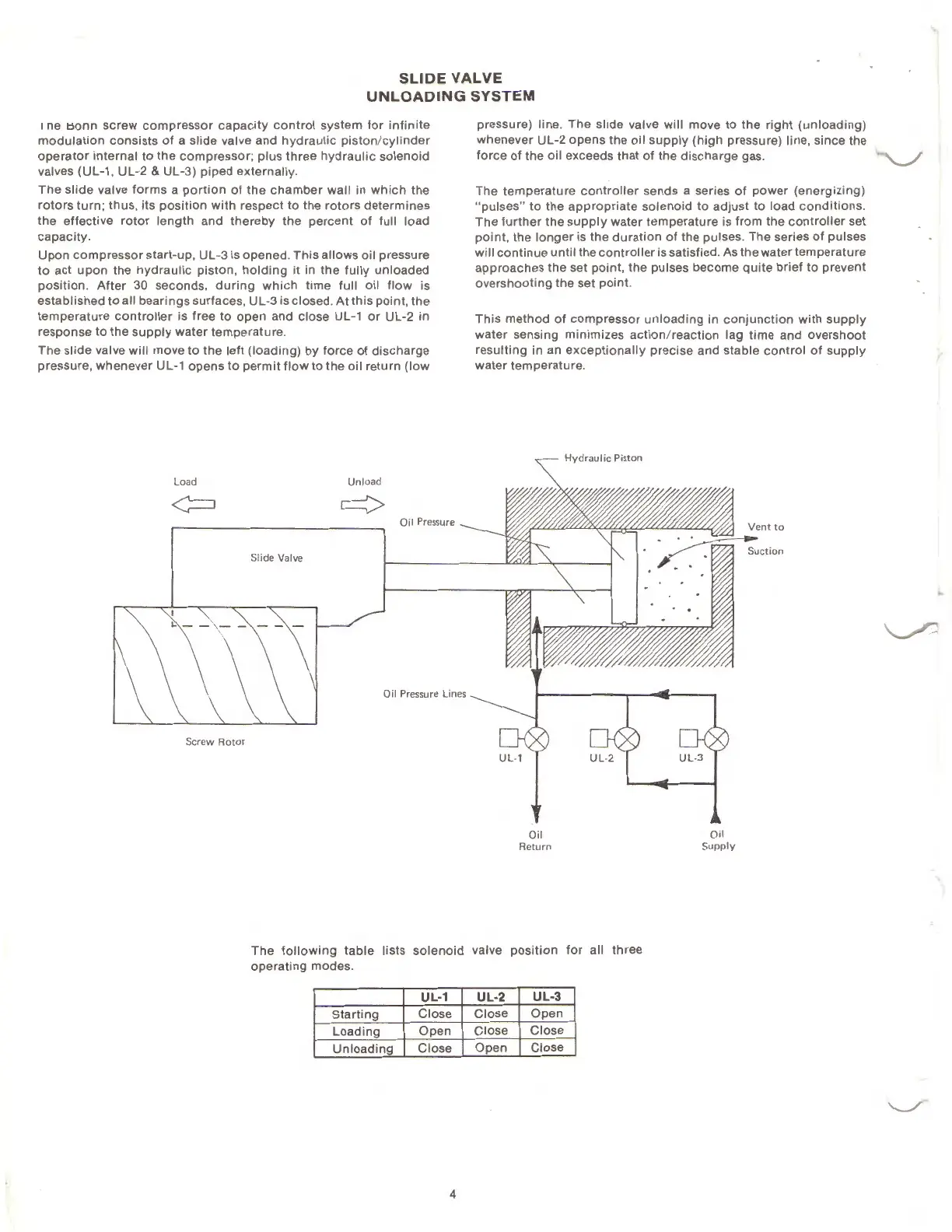

SLIDE
VALVE
UNLOADING
SYSTEM
1 ne
tlonn
screw
compressor
capacity
control
system
for
infinite
modulation
consists
of
a
slide
valve and
hydraulic
piston
/
cylinder
operator
internal
to
the
compressor;
plus
three
hydraulic
solenoid
valves (UL-1,
UL-2
&
UL-3)
piped
externally.
The
slide
valve
forms
a
portion
of
the
chamber
wall in
which
the
rotors
turn;
thus,
its
position
with
respect
to
the
rotors
determines
the
effective
rotor
length
and
thereby
the
percent
of
full load
capacity
.
Upon
compressor
start-up
,
UL-3
is opened.
This
allows
oil pressure
to
act
upon
the
hydraulic
piston,
holding
it in
the
fully
unloaded
position
.
After
30 seconds,
during
which
time
full
oil
flow
is
established
to
all
bearings
surfaces,
UL-3
is
closed
.
At
this
point,
the
temperature
controller
is free
to
open
and close UL-1
or
UL-2
in
response
to
the
supply
water
temperature
.
The
slide
valve
will
move
to
the
left
(loading)
by
force
of
discharge
pressure
,
whenever
UL-1
opens
to
permit
flow
to
the
oil
return
(low
Load
Unload
¢::J
c::>
Oil Pressure
Slide Valve
Oil
Pressure Lines
Screw
Rotor
pressure) line.
The
slide
valve
will
move
to
the
right
(unloading)
whenever
UL-2
opens
the
oil
supply
(high
pressure) line,
since
the
force
of
the
oil
exceeds
that
of
the
discharge
gas.
The
temperature
controller
sends a series
of
power
(energizing)
"
pulses
"
to
the
appropriate
solenoid
to
adjust
to
load
conditions
.
The
further
the
supply
water
temperature
is
from
the
controller
set
point,
the
longer
is
the
duration
of
the
pulses.
The
series
of
pulses
will
continue
until
the
controller
is satisfied. As
the
water
temperature
approaches
the
set
point
,
the
pulses
become
quite
brief
to
prevent
overshooting
the
set
point.
This
method
of
compressor
unloading
in
conjunction
with
supply
water
sensing
minimizes
action
/
reaction
lag
time
and
overshoot
resulting
in an
exceptionally
precise
and
stable
control
of
supply
water
temperature
.
UL-1
Oil
Return
Hydraulic
Piston
Oil
Supply
Vent
to
Suction
The
following
table
lists
solenoid
valve
position
for
all
three
operating
modes.
UL-1
UL-2 UL-3
Starting
Close
Close
Open
Loading
Open
Close
Close
Unloading
Close
Open
Close
4
