Forward
Backward
Incline
recline
movement
Press and hold this button, the chair will move
forward, to stop release your finger.
Press and hold this button, the chair will move
upward, to stop release your finger.
Press and hold this button, the chair will move
backward, to stop release your finger.
Press and hold this button, the chair will move
downward, to stop release your finger.
Movement will stop when piston reaches maximum/minimum extention as well.
2. Component installation instructions.

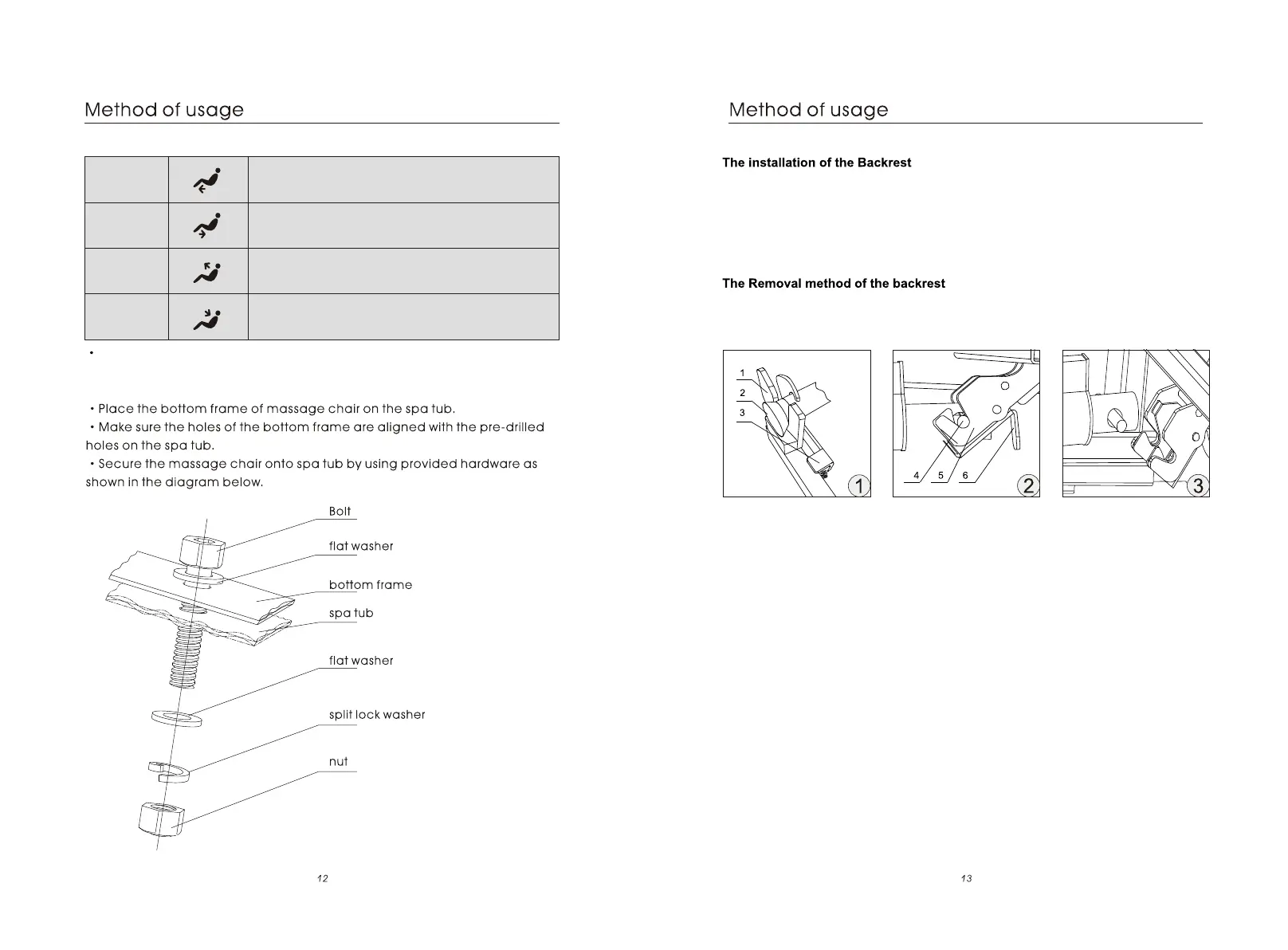

1.Align backrest support shafts with backrest support seats. Drop-in to engage
locking hook ( see fig 1).
2.Lay back backrest and align electric cylinder bolt with backrest electric
cylinder support and engage backrest electric cylinder support locking
hook (See fig 2).
1. Fig 2, disengage #6 & pull backrest forward.
2. Fig 1, lift #3 (both side) & pull backrest up.
#1 support seats
#2 Supporting shaft of the Backrest
#3 Backrest support seats self Locking hook
#4 Electric cylinder bolt
#5 Backrest electric cylinder support
#6 Baxkrest electric cylinder support self locking hook
NOTE: Ensure cylinder connecters are disengaged.
Backrest
To Next Page
