Gulfstream Lavender I - Page 12

GFI Outlet Required
Existing Drain Pipe
Discharge Pump
Floor
Wall
16’’ - 24’’
Foot-spa Length
½” Hot & Cold Hoses

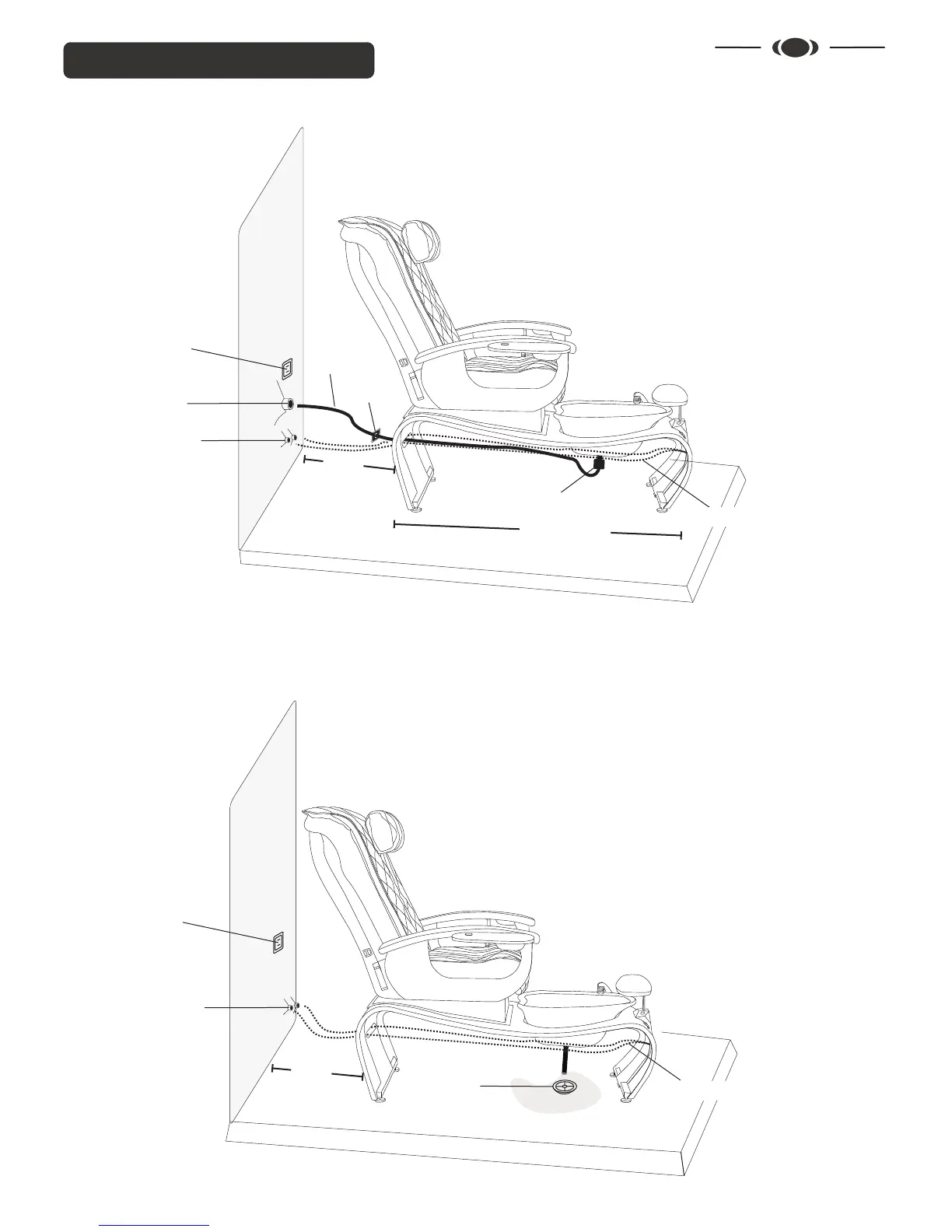

Typical Discharge Pump Installation
INSTALLATIONS
10
Existing ½’’ Hot & Cold
Water Supply
Backwater valve sold
separately
Backwater Valve
sold separately
3/4’’ Discharge Pipe
GFI Outlet Required
Existing Hot & Cold
Water Supply
Backwater valve sold
separately
½’’
Floor
Wall
16’
’
- 24’’
Typical Gravity Sink (Direct Drain)
Installation
Gravity Sink
2’’ - 3’’ drain pipe
to sewer line
½” Hot & Cold Hoses
P-Trap not installed in the floor drain installation
